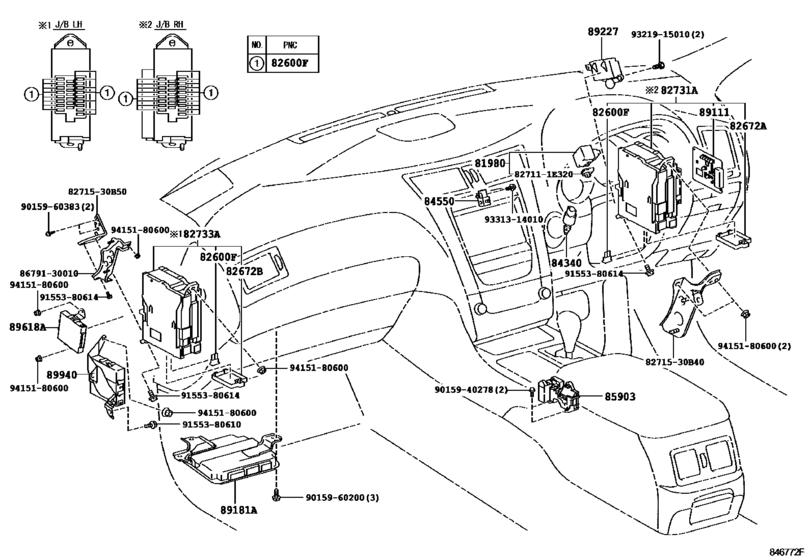

Switch & Relay & Computer ([01.2005 - ] COWL (0501- )RHD) Diagram Toyota LEXUS GS
- Year
- 2007 - 2011
- Sales region
- General
- Frame
- URS190
- ENGINE
- 1URFSE
- DESTINATION
- EUR
- Model
- GS460
- From
- 09.2007
- To
- 12.2011
- Vehicle Model
- GS460
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[09.2007 -] GRS19#,URS190,UZS190 |
81980-30170 |
from US $52.59 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[09.2007 - 12.2011] GRS19#,URS190,UZS190 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[09.2007 - 12.2011] GRS19#,URS190,UZS190 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2007 - 12.2011] GRS19#,URS190,UZS190 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672A
|
82672A
82672-30121
Cover, Junction Block
[09.2008 -] GRS190..GEN; GRS190..RHD..EUR SINGAPORE SPEC; GRS190,URS190..RHD..EUR NEW ZEALAND SPEC; URS190..LHD..EUR TAIWAN SPEC; GRS190,URS190..RHD..EUR AUSTRALIA SPEC; GRS190..LHD..EUR CHILE SPEC |
82672-30121 |
— | ||
|
82672A
|
82672A
82672-30320 Cover, Junction Block[09.2007 -] GRS196;GRS190,URS190..RHD..EUR |
82672-30320 |
US $3.35 |
||
|
82672B
|
82672B
82672-30141 Cover, Junction Block[09.2007 -] GRS190,URS190..RHD |
82672-30141 |
US $3.35 |
||
|
82731A
|
82731A
82730-30E82
Block, Cowl Side Junction, Rh
[09.2007 - 09.2008] GRS190,URS190..RHD..EUR |
82730-30E82 |
— | ||
|
82731A
|
82731A
82730-30E83
Block, Cowl Side Junction, Rh
[09.2008 - 09.2009] GRS190,URS190..RHD..EUR |
82730-30E83 |
— | ||
|
82731A
|
82731A
82730-30E84
Block, Cowl Side Junction, Rh
[09.2009 -] GRS190,URS190..RHD..EUR |
82730-30E84 |
— | ||
|
82731A
|
82731A
82730-30E92
Block, Cowl Side Junction, Rh
[09.2007 - 09.2008] GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
82730-30E92 |
— | ||
|
82731A
|
82731A
82730-30E93
Block, Cowl Side Junction, Rh
[09.2008 - 09.2009] GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
82730-30E93 |
— | ||
|
82731A
|
82731A
82730-30E94
Block, Cowl Side Junction, Rh
[09.2009 -] GRS190,URS190..RHD..EUR AUSTRALIA SPEC |
82730-30E94 |
— | ||
|
82731A
|
82731A
82730-30F02
Block, Cowl Side Junction, Rh
[09.2007 - 09.2008] GRS190,URS190..RHD..EUR NEW ZEALAND SPEC |
82730-30F02 |
— | ||
|
82731A
|
82731A
82730-30F03
Block, Cowl Side Junction, Rh
[09.2008 - 09.2009] GRS190,URS190..RHD..EUR NEW ZEALAND SPEC |
82730-30F03 |
— | ||
|
82731A
|
82731A
82730-30F04
Block, Cowl Side Junction, Rh
[09.2009 -] GRS190,URS190..RHD..EUR NEW ZEALAND SPEC |
82730-30F04 |
— | ||
|
82733A
|
82733A
82730-30282 Block, Cowl Side Junction, Lh[09.2007 - 06.2008] GRS190,URS190..RHD |
82730-30282 |
US $773.14 |
||
| replacement | |||||
|
82733A
|
82733A
82730-30284 Block, Cowl Side Junction, LhCOWL SIDE JUNCTION, LH [09.2007 - 06.2008] GRS190,URS190..RHD |
82730-30284 |
US $643.55 |
||
|
82733A
|
82733A
82730-30283 Block, Cowl Side Junction, Lh[07.2008 - 10.2009] GRS190,URS190..RHD |
82730-30283 |
US $643.55 |
||
| replacement | |||||
|
82733A
|
82733A
82730-30284 Block, Cowl Side Junction, LhCOWL SIDE JUNCTION, LH [07.2008 - 10.2009] GRS190,URS190..RHD |
82730-30284 |
US $643.55 |
||
|
82733A
|
82733A
82730-30284 Block, Cowl Side Junction, LhCOWL SIDE JUNCTION, LH [11.2009 -] GRS190,URS190..RHD |
82730-30284 |
US $643.55 |
||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[09.2007 - 12.2011] GRS19#,URS190 |
84340-30110 |
from US $22.76 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[09.2007 - 12.2011] GRS19#,URS190,UZS190 |
84550-16060 |
from US $17.48 |
||
|
85903
|
85903
85903-30070 Computer Sub-Assy, Shift Lock Control[09.2007 - 12.2011] GRS190,URS190..RHD |
85903-30070 |
US $116.48 |
||
|
89111
|
89111
89100-30110 Computer, Network Gateway[09.2007 - 09.2009] GRS19#,URS190,UZS190 |
89100-30110 |
US $589.68 |
||
|
89111
|
89111
89100-30120 Computer, Network GatewayNETWORK GATEWAY [09.2009 -] GRS19#,URS190 |
89100-30120 |
US $589.68 |
||
|
89181A
|
89181A
89181-30140 Computer, Steering Control[09.2007 -] URS190..RHD |
89181-30140 |
US $765.86 |
||
|
89181A
|
89181A
89181-30160 Computer, Steering Control[09.2007 - 07.2010] URS190..RHD STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION) |
89181-30160 |
US $765.86 |
||
|
89227
|
89227
89227-30020 Computer, Multiplex Tilt & Telescopic[09.2007 - 12.2011] GRS19#,URS190 |
89227-30020 |
US $492.13 |
||
|
89618A
|
89618A
89670-30020 Computer, Power Source Control[09.2007 - 09.2008] GRS190,URS190..RHD |
89670-30020 |
US $575.12 |
||
|
89618A
|
89618A
89670-30140 Computer, Power Source Control[09.2008 - 12.2011] GRS190,URS190..RHD |
89670-30140 |
US $479.02 |
||
|
89940
|
89940
89940-30061 Computer Assy, Headlamp Swivel[09.2007 -] GRS190,URS190..RHD |
89940-30061 |
US $637.73 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271530B40
|
8271530B40
82715-30B40 Bracket,wiring Harness Clamp |
82715-30B40 |
US $21.55 |
||
|
8271530B50
|
8271530B50
82715-30B50 Bracket,wiring Harness Clamp |
82715-30B50 |
US $8.30 |
||
|
8679130010
|
8679130010
86791-30010 Bracket, Television Camera |
86791-30010 |
US $25.92 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
from US $1.60 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
