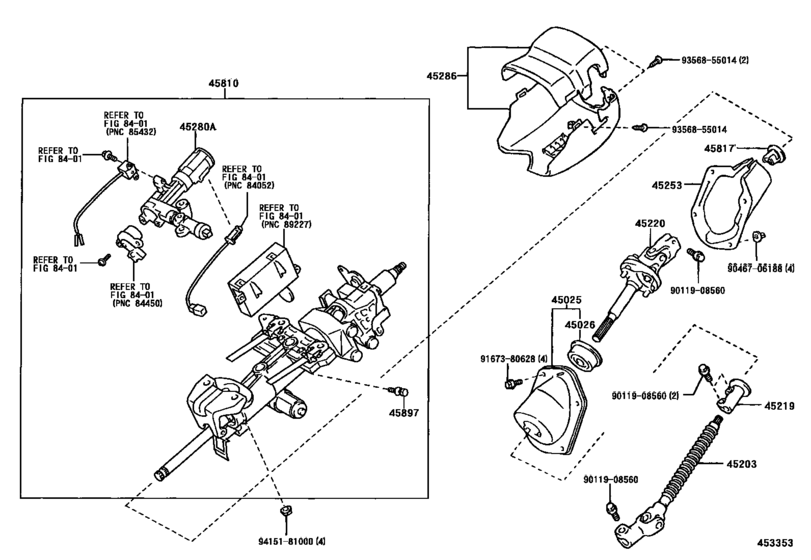

Steering Column & Shaft ([11.2002 - ] (0211- )) Diagram Toyota LEXUS GX
- Year
- 2002 - 2009
- Sales region
- U.S.A.
- Frame
- UZJ120
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- Model
- GX470
- From
- 11.2002
- To
- 08.2009
- Gear Shift Type
- 5FC
- No.of Doors
- 5D
- Vehicle Model
- GX470
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025
|
45025
45025-35370
Cover, Steering Intermediate Shaft
[11.2002 -] UZJ120 |
45025-35370 |
— | ||
|
45026
|
45026
45026-35060 Cover Sub-Assy, Steering Column Hole, No.2[11.2002 -] UZJ120 |
45026-35060 |
from US $29.90 |
||
|
45203
|
45203
45203-35310 Shaft Sub-Assy, Steering Intermediate, No.2STEERING INTERMEDIATE, NO.2 [11.2002 - 11.2003] UZJ120 |
45203-35310 |
from US $182.15 |
||
|
45203
|
45203
45203-60120 Shaft Sub-Assy, Steering Intermediate, No.2STEERING INTERMEDIATE, NO.2 [11.2003 -] UZJ120 |
45203-60120 |
US $214.50 |
||
|
45219
|
45219
45219-35160 Yoke, Steering Sliding[11.2002 -] UZJ120 |
45219-35160 |
from US $20.26 |
||
|
45220
|
45220
45220-60140 Shaft Assy, Steering IntermediateSTEERING INTERMEDIATE [11.2002 -] UZJ120 |
45220-60140 |
US $194.40 |
||
|
45253
|
45253
45253-35350 Cover, Steering Column HoleSTEERING COLUMN HOLE [11.2002 -] UZJ120 |
45253-35350 |
US $19.36 |
||
|
45280A
|
45280A
45280-60620 Bracket Assy, Steering Column, UpperSTEERING COLUMN, UPPER [11.2002 -] UZJ120 |
45280-60620 |
US $200.93 |
||
|
45286
|
45286
45286-35912-C0 Cover, Steering ColumnSTEERING COLUMN [11.2002 - 08.2009] UZJ120 BLACK,TRIM1# |
45286-35912-C0 |
US $43.68 |
||
|
45286
|
45286
45286-35912-E0 Cover, Steering ColumnSTEERING COLUMN [11.2002 - 08.2009] UZJ120 SANDAL WOOD,TRIM0# |
45286-35912-E0 |
US $43.68 |
||
|
45810
|
45810
45810-60010
Gear Assy, Tilt Steering, W/motor
[11.2002 -] UZJ120 |
45810-60010 |
— | ||
|
45817
|
45817
45817-35050 Stopper, Steering Shaft Thrust[11.2002 -] UZJ120 |
45817-35050 |
from US $6.64 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[11.2002 -] UZJ120 |
45897-12020 |
from US $2.63 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.47 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.87 |
||
|
9167380628
|
9167380628
91673-80628 New Genuine Part |
91673-80628 |
US $1.16 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
||
