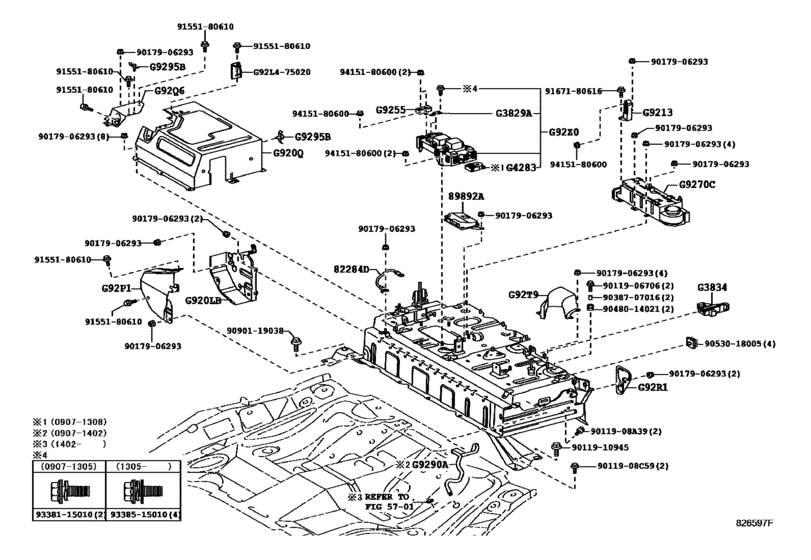

Battery & Battery Cable ([07.2009 - ] HV ﾊﾞｯﾃﾘ (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82284D
|
82284D
82284-75020 Wire, EarthEARTH [07.2009 - 01.2013] ANF10 |
82284-75020 |
US $7.28 |
||
|
89892A
|
89892A
89892-75010 Sensor, Battery VoltageBATTERY VOLTAGE [07.2009 - 01.2013] ANF10 |
89892-75010 |
US $789.60 |
||
|
9011908A39
|
9011908A39
90119-08A39 BOLT WWASHER |
90119-08A39 |
US $1.28 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
||
|
9011906706
|
9011906706
90119-06706 New Genuine Part |
90119-06706 |
US $1.28 |
||
|
9011910945
|
9011910945
90119-10945 New Genuine Part |
90119-10945 |
US $1.02 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.86 |
||
|
9038707016
|
9038707016
90387-07016 Collar(For Intake Air Connector) |
90387-07016 |
US $0.79 |
||
|
9048014021
|
9048014021
90480-14021 GROMMET |
90480-14021 |
US $1.92 |
||
|
9053018005
|
9053018005
90530-18005 FASTENER HOOK |
90530-18005 |
from US $1.02 |
||
|
9090119038
|
9090119038
90901-19038
New Genuine Part
|
90901-19038 |
— | ||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $0.96 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $0.96 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
|
G92L475020
|
G92L475020
G92L4-75020 New Genuine Part |
G92L4-75020 |
US $3.35 |
||
|
G92P1
|
G92P1
G92P1-75010 Shield, Hybrid Battery, FrontHYBRID BATTERY, FRONT [07.2009 - 01.2013] ANF10 |
G92P1-75010 |
US $10.34 |
||
|
G92Q6
|
G92Q6
G92Q6-75010 Panel, Hv Battery Shield, No.4HYBRID BATTERY SHIELD, NO.4 [07.2009 - 01.2013] ANF10 |
G92Q6-75010 |
US $10.34 |
||
|
G92R1
|
G92R1
G92R1-75010 Shield, Hybrid Battery, Rear No.1HYBRID BATTERY, REAR NO.1 [07.2009 - 01.2013] ANF10 |
G92R1-75010 |
US $3.35 |
||
|
G92T9
|
G92T9
G92T9-75010 Cover, Hybrid Battery Service PlugHYBRID BATTERY SERVICE PLUG [07.2009 - 01.2013] ANF10 |
G92T9-75010 |
US $10.34 |
||
|
G92Z0
|
G92Z0
G92Z0-33010 Block Assy, Hv Battery JunctionHYBRID BATTERY JUNCTION [07.2009 - 01.2013] ANF10 |
G92Z0-33010 |
US $632.80 |
||
|
G92Z0
|
G92Z0
G92Z0-75010 Block Assy, Hv Battery Junction[05.2013 -] ANF10 |
G92Z0-75010 |
US $396.03 |
||
|
G920LB
|
G920LB
G920L-75010 Cover Sub-Assy, Hybrid Battery, RhHYBRID BATTERY, UPPER [07.2009 - 01.2013] ANF10 |
G920L-75010 |
US $16.45 |
||
|
G920Q
|
G920Q
G920Q-75010
Shield Sub-Assy, Hybrid Battery, No.1
[07.2009 - 01.2013] ANF10 |
G920Q-75010 |
— | ||
| replacements | |||||
|
G920Q
|
G920Q
91551-80610 BOLT FLANGE[07.2009 - 01.2013] ANF10 |
91551-80610 |
US $0.96 |
||
|
G920Q
|
G920Q
G920Q-75011 Shield Sub-Assy, Hybrid Battery, No.1[07.2009 - 01.2013] ANF10 |
G920Q-75011 |
US $47.32 |
||
|
G920Q
|
G920Q
G92L4-75020 New Genuine Part[07.2009 - 01.2013] ANF10 |
G92L4-75020 |
US $3.35 |
||
|
G920Q
|
G920Q
G920Q-75011 Shield Sub-Assy, Hybrid Battery, No.1[05.2013 -] ANF10 |
G920Q-75011 |
US $47.32 |
||
|
G3829A
|
G3829A
90982-11051 Fuse, High Voltage[07.2009 - 01.2013] ANF10 １５Ａ |
90982-11051 |
US $8.12 |
||
|
G3834
|
G3834
G9530-75020 Grip, Service PlugSERVICE PLUG [07.2009 - 01.2013] ANF10 |
G9530-75020 |
US $40.19 |
||
|
G4283
|
G4283
G4283-47030 Sensor, Battery Current[07.2009 - 01.2013] ANF10 |
G4283-47030 |
US $227.52 |
||
|
G9213
|
G9213
G9213-75010 Terminal, InverterINVERTER [07.2009 - 01.2013] ANF10 |
G9213-75010 |
US $110.66 |
||
|
G9255
|
G9255
G9255-33010 Capacitor, Filter Noise[07.2009 - 01.2013] ANF10 |
G9255-33010 |
US $27.96 |
||
|
G9270C
|
G9270C
G9270-75010
Converter, Hv
[07.2009 - 11.2009] ANF10 |
G9270-75010 |
— | ||
| replacement | |||||
|
G9270C
|
G9270C
G9270-75031 Converter, Hv[07.2009 - 11.2009] ANF10 |
G9270-75031 |
US $727.94 |
||
|
G9270C
|
G9270C
G9270-75030
Converter, Hv
[11.2009 - 07.2011] ANF10 |
G9270-75030 |
— | ||
| replacement | |||||
|
G9270C
|
G9270C
G9270-75031 Converter, Hv[11.2009 - 07.2011] ANF10 |
G9270-75031 |
US $727.94 |
||
|
G9270C
|
G9270C
G9270-75031 Converter, Hv[08.2011 - 01.2013] ANF10 |
G9270-75031 |
US $727.94 |
||
|
G9290A
|
G9290A
G9290-75010 Hose Assy, Hybrid BatteryHYBRID BATTERY [07.2009 - 01.2013] ANF10 |
G9290-75010 |
US $77.17 |
||
|
G9295B
|
G9295B
G9295-30020 Striker, Battery Cover Lock[07.2009 - 01.2013] ANF10 |
G9295-30020 |
US $3.20 |
||
