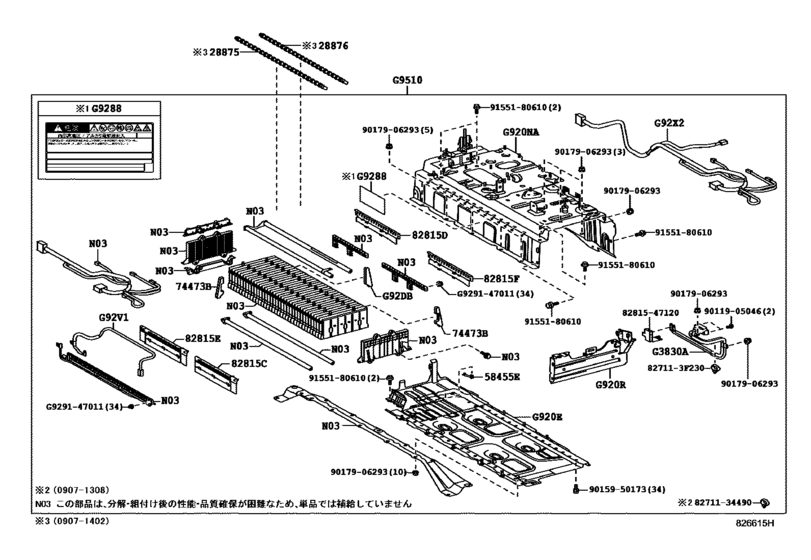

Battery & Battery Cable ([07.2009 - ] HV ﾊﾞｯﾃﾘ (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28875
|
28875
28875-28020 Duct, Battery Insulator, No.1BATTERY INSULATOR, NO.1 [07.2009 - 01.2013] 2AZFXE..ANF10 |
28875-28020 |
US $61.73 |
||
|
28876
|
28876
28876-28020 Duct, Battery Insulator, No.2BATTERY INSULATOR, NO.2 [07.2009 - 01.2013] 2AZFXE..ANF10 |
28876-28020 |
US $61.73 |
||
|
58455E
|
58455E
58455-75010 Stopper, Battery CarrierBATTERY CARRIER [07.2009 - 01.2013] ANF10 |
58455-75010 |
US $2.48 |
||
|
74473B
|
74473B
74473-47020 Cushion, Battery Carrier, No.3[07.2009 - 01.2013] ANF10 |
74473-47020 |
US $2.48 |
||
|
82815C
|
82815C
82815-33240 Cover, Wiring Harness Protector, No.1WIRING HARNESS PROTECTOR, NO.4 [07.2009 - 01.2013] ANF10 |
82815-33240 |
US $14.12 |
||
|
82815D
|
82815D
82815-33250 Cover, Wiring Harness Protector, No.1WIRING HARNESS PROTECTOR, NO.4 [07.2009 - 01.2013] ANF10 |
82815-33250 |
US $9.46 |
||
|
82815E
|
82815E
82815-47130 Cover, Wiring Harness Protector, No.1[07.2009 - 01.2013] ANF10 |
82815-47130 |
US $16.31 |
||
|
82815F
|
82815F
82815-47140 Cover, Wiring Harness Protector, No.2[07.2009 - 01.2013] ANF10 |
82815-47140 |
US $12.23 |
||
|
827113F230
|
827113F230
82711-3F230 Clamp, Sliding Roof Drain Hose |
82711-3F230 |
US $3.20 |
||
|
8271134490
|
8271134490
82711-34490 Wire, Fuse To Fuse(for Combustion Heater) |
82711-34490 |
US $1.76 |
||
|
8281547120
|
8281547120
82815-47120 Cover, Wiring Harness Protector, No.1 |
82815-47120 |
US $4.66 |
||
|
9011905046
|
9011905046
90119-05046 New Genuine Part |
90119-05046 |
US $1.10 |
||
|
9015950173
|
9015950173
90159-50173 Screw |
90159-50173 |
US $0.52 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.86 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $0.96 |
||
|
G929147011
|
G929147011
G9291-47011 New Genuine Part |
G9291-47011 |
US $1.76 |
||
|
G92DB
|
G92DB
G92DB-75010 Seal, Hybrid Battery, No.1HYBRID BATTERY, NO.1 [07.2009 - 01.2013] ANF10 |
G92DB-75010 |
US $5.24 |
||
|
G92V1
|
G92V1
G92V1-75010 Cable, Hybrid Battery Main, No.3HYBRID BATTERY MAIN, NO.3 [07.2009 - 01.2013] ANF10 |
G92V1-75010 |
US $49.21 |
||
|
G92X2
|
G92X2
G92X2-75010 Wire, Hv Battery Pack, No.2HYBRID BATTERY PACK, NO.2 [07.2009 - 01.2013] ANF10 |
G92X2-75010 |
US $62.46 |
||
|
G920E
|
G920E
G920E-75010 Carrier Sub-Assy, Hv Battery, LowerHYBRID VEHICLE BATTERY, LOWER [07.2009 - 01.2013] ANF10 |
G920E-75010 |
US $90.27 |
||
|
G920NA
|
G920NA
G920N-75010 Cover Sub-Assy, Hv Battery, LhHYBRID BATTERY, UPPER [07.2009 - 01.2013] ANF10 |
G920N-75010 |
US $157.25 |
||
| replacement | |||||
|
G920NA
|
G920NA
G920N-75011 Cover Sub-Assy, Hv Battery, Lh[07.2009 - 01.2013] ANF10 |
G920N-75011 |
US $142.69 |
||
|
G920NA
|
G920NA
G920N-75011 Cover Sub-Assy, Hv Battery, Lh[05.2013 -] ANF10 |
G920N-75011 |
US $142.69 |
||
|
G920R
|
G920R
G920R-75010 Shield Sub-Assy, Hybrid Battery, No.2HYBRID BATTERY, NO.2 [07.2009 - 01.2013] ANF10 |
G920R-75010 |
US $16.45 |
||
|
G3830A
|
G3830A
G3830-75010 Plug Assy, Electric Vehicle BatteryELECTRIC VEHICLE BATTERY [07.2009 - 01.2013] ANF10 |
G3830-75010 |
US $75.71 |
||
|
G9288
|
G9288
G9288-48010 Label, Battery Charging Notice[07.2009 - 01.2013] ANF10 |
G9288-48010 |
US $4.66 |
||
|
G9510
|
G9510
G9510-75010
Battery Assy, Hv Supply
[07.2009 - 01.2013] ANF10 |
G9510-75010 |
— | ||
| replacement | |||||
|
G9510
|
G9510
G9510-75011 Battery Assy, Hv Supply[07.2009 - 01.2013] ANF10 |
G9510-75011 |
US $2,896.80 |
||
|
G9510
|
G9510
G9510-75011 Battery Assy, Hv Supply[08.2013 -] ANF10 |
G9510-75011 |
US $2,896.80 |
||
