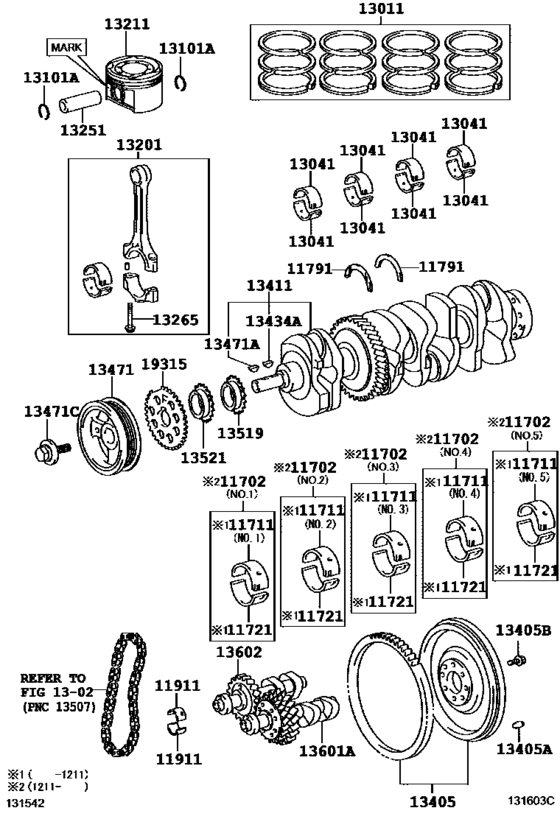

Crankshaft & Piston ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11701-28010-01 Bearing Set, Crankshaft[11.2012 - 01.2013] 2AZFXE..ANF10 MARK 1,ＮＯ．２，３，４，５ 修理書 参照 |
11701-28010-01 |
US $46.66 |
||
|
11702
|
11702
11701-28010-02 Bearing Set, Crankshaft[11.2012 - 01.2013] 2AZFXE..ANF10 MARK 2,ＮＯ．２，３，４，５ 修理書 参照 |
11701-28010-02 |
US $46.66 |
||
|
11702
|
11702
11701-28010-03 Bearing Set, Crankshaft[11.2012 - 01.2013] 2AZFXE..ANF10 MARK 3,ＮＯ．２，３，４，５ 修理書 参照 |
11701-28010-03 |
US $46.66 |
||
|
11702
|
11702
11701-28010-04 Bearing Set, Crankshaft[11.2012 - 01.2013] 2AZFXE..ANF10 MARK 4,ＮＯ．２，３，４，５ 修理書 参照 |
11701-28010-04 |
US $46.66 |
||
|
11702
|
11702
11701-28020-01 Bearing Set, Crankshaft[11.2012 - 01.2013] 2AZFXE..ANF10 MARK 1,ＮＯ．１，修理書 参照 |
11701-28020-01 |
US $31.16 |
||
|
11702
|
11702
11701-28020-02 Bearing Set, Crankshaft[11.2012 - 01.2013] 2AZFXE..ANF10 MARK 2,ＮＯ．１，修理書 参照 |
11701-28020-02 |
US $31.16 |
||
|
11702
|
11702
11701-28020-03 Bearing Set, Crankshaft[11.2012 - 01.2013] 2AZFXE..ANF10 MARK 3,ＮＯ．１，修理書 参照 |
11701-28020-03 |
US $31.16 |
||
|
11702
|
11702
11701-28020-04 Bearing Set, Crankshaft[11.2012 - 01.2013] 2AZFXE..ANF10 MARK 4,ＮＯ．１，修理書 参照 |
11701-28020-04 |
US $31.16 |
||
|
11711
|
11711
11711-28021-01 Bearing, CrankshaftCRANKSHAFT [07.2009 - 11.2012] 2AZFXE..ANF10 MARK 1,ＮＯ．２，３，４，５ 修理書 参照 |
11711-28021-01 |
from US $9.85 |
||
|
11711
|
11711
11711-28021-02 Bearing, CrankshaftCRANKSHAFT [07.2009 - 11.2012] 2AZFXE..ANF10 MARK 2,ＮＯ．２，３，４，５ 修理書 参照 |
11711-28021-02 |
from US $10.14 |
||
|
11711
|
11711
11711-28021-03 Bearing, CrankshaftCRANKSHAFT [07.2009 - 11.2012] 2AZFXE..ANF10 MARK 3,ＮＯ．２，３，４，５ 修理書 参照 |
11711-28021-03 |
US $25.69 |
||
|
11711
|
11711
11711-28021-04 Bearing, CrankshaftCRANKSHAFT [07.2009 - 11.2012] 2AZFXE..ANF10 MARK 4,ＮＯ．２，３，４，５ 修理書 参照 |
11711-28021-04 |
from US $10.74 |
||
|
11711
|
11711
11731-28020-01 Bearing, Crankshaft[07.2009 - 11.2012] 2AZFXE..ANF10 MARK1,ＮＯ．１，修理書 参照 |
11731-28020-01 |
US $14.27 |
||
|
11711
|
11711
11731-28020-02 Bearing, Crankshaft[07.2009 - 11.2012] 2AZFXE..ANF10 MARK2,ＮＯ．１，修理書 参照 |
11731-28020-02 |
US $13.24 |
||
|
11711
|
11711
11731-28020-03 Bearing, Crankshaft[07.2009 - 11.2012] 2AZFXE..ANF10 MARK3,ＮＯ．１，修理書 参照 |
11731-28020-03 |
US $13.34 |
||
|
11711
|
11711
11731-28020-04 Bearing, Crankshaft[07.2009 - 11.2012] 2AZFXE..ANF10 MARK4,ＮＯ．１，修理書 参照 |
11731-28020-04 |
US $14.27 |
||
|
11721
|
11721
11721-28021-01 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [07.2009 - 11.2012] 2AZFXE..ANF10 MARK 1,修理書参照 |
11721-28021-01 |
from US $9.61 |
||
|
11721
|
11721
11721-28021-02 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [07.2009 - 11.2012] 2AZFXE..ANF10 MARK 2,修理書参照 |
11721-28021-02 |
from US $9.77 |
||
|
11721
|
11721
11721-28021-03 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [07.2009 - 11.2012] 2AZFXE..ANF10 MARK 3,修理書参照 |
11721-28021-03 |
from US $9.56 |
||
|
11721
|
11721
11721-28021-04 Bearing, Crankshaft, No.2CRANKSHAFT, NO.2 [07.2009 - 11.2012] 2AZFXE..ANF10 MARK 4,修理書参照 |
11721-28021-04 |
from US $10.98 |
||
|
11791
|
11791
11791-28020 Washer, Crankshaft Thrust, Upper[07.2009 - 01.2013] 2AZFXE..ANF10 ＳＴＤ |
11791-28020 |
from US $16.73 |
||
|
11911
|
11911
11911-28011-01 Bearing, Balanceshaft, No.1BALANCESHAFT, NO.1 [07.2009 - 01.2013] 2AZFXE..ANF10 MARK 1,修理書参照 |
11911-28011-01 |
from US $9.59 |
||
|
11911
|
11911
11911-28011-02 Bearing, Balanceshaft, No.1BALANCESHAFT, NO.1 [07.2009 - 01.2013] 2AZFXE..ANF10 MARK 2,修理書参照 |
11911-28011-02 |
from US $6.98 |
||
|
11911
|
11911
11911-28011-03 Bearing, Balanceshaft, No.1BALANCESHAFT, NO.1 [07.2009 - 01.2013] 2AZFXE..ANF10 MARK 3,修理書参照 |
11911-28011-03 |
from US $6.83 |
||
|
13011
|
13011
13011-28160
Ring Set, Piston
[07.2009 - 12.2009] 2AZFXE..ANF10 ＳＴＤ |
13011-28160 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-28161 Ring Set, PistonPISTON [07.2009 - 12.2009] 2AZFXE..ANF10 ＳＴＤ |
13011-28161 |
from US $132.58 |
||
|
13011
|
13011
13011-28161 Ring Set, PistonPISTON [12.2009 - 01.2013] 2AZFXE..ANF10 ＳＴＤ |
13011-28161 |
from US $132.58 |
||
|
13011
|
13011
13011-28260 Ring Set, Piston[09.2014 -] 2AZFXE..ANF10 ＳＴＤ |
13011-28260 |
US $218.88 |
||
|
13041
|
13041
13281-28011-01 Bearing, Connecting RodCONNECTING ROD [07.2009 - 01.2013] 2AZFXE..ANF10 MARK 1,修理書参照 |
13281-28011-01 |
from US $5.58 |
||
|
13041
|
13041
13281-28011-02 Bearing, Connecting RodCONNECTING ROD [07.2009 - 01.2013] 2AZFXE..ANF10 MARK 2,修理書参照 |
13281-28011-02 |
from US $5.58 |
||
|
13041
|
13041
13281-28011-03 Bearing, Connecting RodCONNECTING ROD [07.2009 - 01.2013] 2AZFXE..ANF10 MARK 3,修理書参照 |
13281-28011-03 |
from US $5.66 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-09790-A0
Rod Sub-Assy, Connecting
[07.2009 - 08.2009] 2AZFXE..ANF10 MARK A,（Ｌ）：修理書 参照 |
13201-09790-A0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-A0 Rod Sub-Assy, ConnectingCONNECTING [07.2009 - 08.2009] 2AZFXE..ANF10 MARK A,（Ｌ）：修理書 参照 |
13201-29686-A0 |
from US $168.90 |
||
|
13201
|
13201
13201-09790-B0
Rod Sub-Assy, Connecting
[07.2009 - 08.2009] 2AZFXE..ANF10 MARK B,（Ｌ）：修理書 参照 |
13201-09790-B0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-B0 Rod Sub-Assy, ConnectingCONNECTING [07.2009 - 08.2009] 2AZFXE..ANF10 MARK B,（Ｌ）：修理書 参照 |
13201-29686-B0 |
from US $178.56 |
||
|
13201
|
13201
13201-09790-C0
Rod Sub-Assy, Connecting
[07.2009 - 08.2009] 2AZFXE..ANF10 MARK C,（Ｌ）：修理書 参照 |
13201-09790-C0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-C0 Rod Sub-Assy, ConnectingCONNECTING [07.2009 - 08.2009] 2AZFXE..ANF10 MARK C,（Ｌ）：修理書 参照 |
13201-29686-C0 |
US $168.90 |
||
|
13201
|
13201
13201-09791-A0
Rod Sub-Assy, Connecting
[08.2009 - 04.2012] 2AZFXE..ANF10 MARK A,（Ｌ）：修理書 参照 |
13201-09791-A0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-A0 Rod Sub-Assy, ConnectingCONNECTING [08.2009 - 04.2012] 2AZFXE..ANF10 MARK A,（Ｌ）：修理書 参照 |
13201-29686-A0 |
from US $168.90 |
||
|
13201
|
13201
13201-09791-B0
Rod Sub-Assy, Connecting
[08.2009 - 04.2012] 2AZFXE..ANF10 MARK B,（Ｌ）：修理書 参照 |
13201-09791-B0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-B0 Rod Sub-Assy, ConnectingCONNECTING [08.2009 - 04.2012] 2AZFXE..ANF10 MARK B,（Ｌ）：修理書 参照 |
13201-29686-B0 |
from US $178.56 |
||
|
13201
|
13201
13201-09791-C0
Rod Sub-Assy, Connecting
[08.2009 - 04.2012] 2AZFXE..ANF10 MARK C,（Ｌ）：修理書 参照 |
13201-09791-C0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29686-C0 Rod Sub-Assy, ConnectingCONNECTING [08.2009 - 04.2012] 2AZFXE..ANF10 MARK C,（Ｌ）：修理書 参照 |
13201-29686-C0 |
US $168.90 |
||
|
13201
|
13201
13201-29686-A0 Rod Sub-Assy, ConnectingCONNECTING [07.2009 - 04.2012] 2AZFXE..ANF10 MARK A,（Ｊ）：修理書 参照 |
13201-29686-A0 |
from US $168.90 |
||
|
13201
|
13201
13201-29686-B0 Rod Sub-Assy, ConnectingCONNECTING [07.2009 - 04.2012] 2AZFXE..ANF10 MARK B,（Ｊ）：修理書 参照 |
13201-29686-B0 |
from US $178.56 |
||
|
13201
|
13201
13201-29686-C0 Rod Sub-Assy, ConnectingCONNECTING [07.2009 - 04.2012] 2AZFXE..ANF10 MARK C,（Ｊ）：修理書 参照 |
13201-29686-C0 |
US $168.90 |
||
|
13211
|
13211
13211-28120-A0 Piston[07.2009 - 08.2010] 2AZFXE..ANF10 MARKA,修理書参照 |
13211-28120-A0 |
US $91.73 |
||
| replacement | |||||
|
13211
|
13211
13211-28121-A0 Piston[07.2009 - 08.2010] 2AZFXE..ANF10 MARKA,修理書参照 |
13211-28121-A0 |
US $75.71 |
||
|
13211
|
13211
13211-28120-B0 Piston[07.2009 - 08.2010] 2AZFXE..ANF10 MARKB,修理書参照 |
13211-28120-B0 |
US $91.73 |
||
| replacement | |||||
|
13211
|
13211
13211-28121-B0 Piston[07.2009 - 08.2010] 2AZFXE..ANF10 MARKB,修理書参照 |
13211-28121-B0 |
US $75.71 |
||
|
13211
|
13211
13211-28120-C0 Piston[07.2009 - 08.2010] 2AZFXE..ANF10 MARKC,修理書参照 |
13211-28120-C0 |
US $91.73 |
||
| replacement | |||||
|
13211
|
13211
13211-28121-C0 Piston[07.2009 - 08.2010] 2AZFXE..ANF10 MARKC,修理書参照 |
13211-28121-C0 |
US $75.71 |
||
|
13211
|
13211
13211-28121-A0 Piston[08.2010 - 01.2013] 2AZFXE..ANF10 MARK A,修理書参照 |
13211-28121-A0 |
US $75.71 |
||
|
13211
|
13211
13211-28121-B0 Piston[08.2010 - 01.2013] 2AZFXE..ANF10 MARK B,修理書参照 |
13211-28121-B0 |
US $75.71 |
||
|
13211
|
13211
13211-28121-C0 Piston[08.2010 - 01.2013] 2AZFXE..ANF10 MARK C,修理書参照 |
13211-28121-C0 |
US $75.71 |
||
|
13211
|
13211
13211-28150-A0 Piston[09.2014 -] 2AZFXE..ANF10 MARK A,マーク ２８１５０，＊ＲＲＭ |
13211-28150-A0 |
US $67.85 |
||
|
13211
|
13211
13211-28150-B0 Piston[09.2014 -] 2AZFXE..ANF10 MARK B,マーク ２８１５０，＊ＲＲＭ |
13211-28150-B0 |
US $67.85 |
||
|
13211
|
13211
13211-28150-C0 Piston[09.2014 -] 2AZFXE..ANF10 MARK C,マーク ２８１５０，＊ＲＲＭ |
13211-28150-C0 |
US $67.85 |
||
|
13251
|
13251
13251-28020-A0 Pin, Piston[07.2009 - 01.2013] 2AZFXE..ANF10 MARK A,修理書参照 |
13251-28020-A0 |
from US $10.78 |
||
|
13251
|
13251
13251-28020-B0 Pin, Piston[07.2009 - 01.2013] 2AZFXE..ANF10 MARK B,修理書参照 |
13251-28020-B0 |
from US $12.32 |
||
|
13251
|
13251
13251-28020-C0 Pin, Piston[07.2009 - 01.2013] 2AZFXE..ANF10 MARK C,修理書参照 |
13251-28020-C0 |
from US $10.74 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[07.2009 - 01.2013] 2AZFXE..ANF10 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[07.2009 - 01.2013] 2AZFXE..ANF10 |
13265-28020 |
from US $3 |
||
|
13405
|
13405
13405-28050 Flywheel Sub-Assy[07.2009 - 01.2013] 2AZFXE..ANF10 |
13405-28050 |
US $216.94 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[07.2009 - 01.2013] 2AZFXE..ANF10 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-12184
Bolt, Flywheel Setting
[07.2009 - 01.2013] 2AZFXE..ANF10 |
90105-12184 |
— | ||
| replacement | |||||
|
13405B
|
13405B
90105-12384 Bolt, Flywheel Setting[07.2009 - 01.2013] 2AZFXE..ANF10 |
90105-12384 |
from US $0.92 |
||
|
13411
|
13411
13401-0H010 Crankshaft[07.2009 - 04.2012] 2AZFXE..ANF10 （Ｌ） |
13401-0H010 |
US $1,528.80 |
||
|
13411
|
13411
13401-0H020 Crankshaft[01.2013 -] 2AZFXE..ANF10 （Ｌ） |
13401-0H020 |
US $963.87 |
||
|
13411
|
13411
13401-28010 Crankshaft[07.2009 - 01.2013] 2AZFXE..ANF10 （Ｊ） |
13401-28010 |
from US $885.24 |
||
|
13434A
|
13434A
95161-30416 Pin, Straight(For Crankshaft)[07.2009 - 01.2013] 2AZFXE..ANF10 |
95161-30416 |
from US $1.54 |
||
|
13471
|
13471
13470-28040 Pulley, Crankshaft[07.2009 - 01.2013] 2AZFXE..ANF10 |
13470-28040 |
US $116.48 |
||
|
13471A
|
13471A
95161-30416 Pin, Straight(For Crankshaft)[07.2009 - 01.2013] 2AZFXE..ANF10 |
95161-30416 |
from US $1.54 |
||
|
13471C
|
13471C
90119-14106 Bolt(For Crankshaft Pulley Set)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90119-14106 |
US $5.76 |
||
|
13471C
|
13471C
90119-14175 Bolt(For Crankshaft Pulley Set)[05.2015 -] 2AZFXE..ANF10 |
90119-14175 |
from US $3.98 |
||
|
13519
|
13519
13519-28010 Gear, Oil Pump Drive[07.2009 - 01.2013] 2AZFXE..ANF10 |
13519-28010 |
from US $5.56 |
||
|
13521
|
13521
13521-28030 Gear Or Sprocket, Crankshaft Timing[07.2009 - 01.2013] 2AZFXE..ANF10 |
13521-28030 |
from US $11.58 |
||
|
13601A
|
13601A
13601-28020
Balanceshaft Sub-Assy, No.1
[07.2009 - 01.2013] 2AZFXE..ANF10 |
13601-28020 |
— | ||
| replacement | |||||
|
13601A
|
13601A
13601-28021 Balanceshaft Sub-Assy, No.1[07.2009 - 01.2013] 2AZFXE..ANF10 |
13601-28021 |
from US $146.23 |
||
|
13601A
|
13601A
13601-28021 Balanceshaft Sub-Assy, No.1[02.2014 -] 2AZFXE..ANF10 |
13601-28021 |
from US $146.23 |
||
|
13602
|
13602
13602-28020 Balanceshaft Sub-Assy, No.2[07.2009 - 01.2013] 2AZFXE..ANF10 |
13602-28020 |
from US $74.04 |
||
|
19315
|
19315
19315-28010 Plate, Crank Angle Sensor, No.1[07.2009 - 01.2013] 2AZFXE..ANF10 |
19315-28010 |
from US $9.81 |
||
