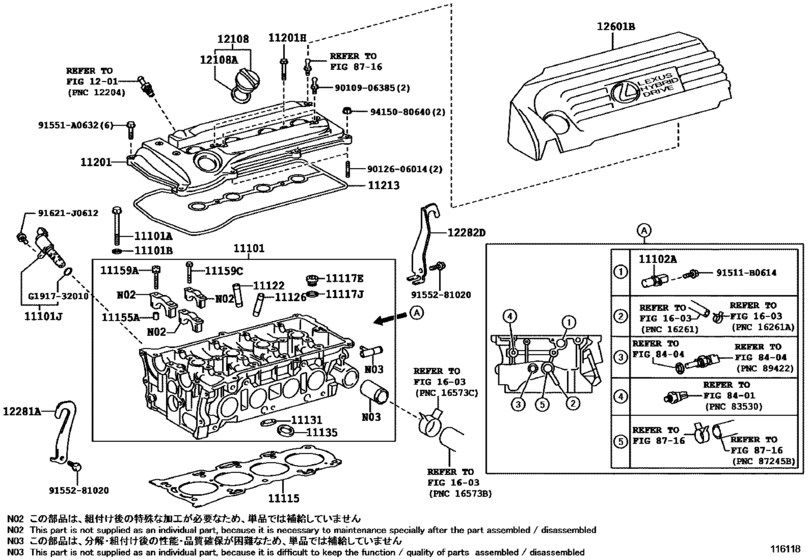

Cylinder Head ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-0H011
Head Sub-Assy, Cylinder
[07.2009 - 04.2012] 2AZFXE..ANF10 （Ｌ） |
11101-0H011 |
— | ||
|
11101
|
11101
11101-28012 Head Sub-Assy, Cylinder[07.2009 - 04.2012] 2AZFXE..ANF10 （Ｊ） |
11101-28012 |
from US $1,890.91 |
||
|
11101A
|
11101A
90910-02162 Bolt(For Cylinder Head Set)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90910-02162 |
from US $4.96 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90201-11034 |
from US $0.94 |
||
|
11101J
|
11101J
15330-28020
Valve Assy, Camshaft Timing Oil Control
[07.2009 - 01.2013] 2AZFXE..ANF10 |
15330-28020 |
— | ||
| replacement | |||||
|
11101J
|
11101J
15330-28010 VALVE ASSY CAM[07.2009 - 01.2013] 2AZFXE..ANF10 |
15330-28010 |
from US $60.88 |
||
|
11102A
|
11102A
90919-05026 Sensor, Position[07.2009 - 01.2013] 2AZFXE..ANF10 |
90919-05026 |
from US $75.48 |
||
|
11115
|
11115
11115-28040 Gasket, Cylinder Head[07.2009 - 01.2013] 2AZFXE..ANF10 |
11115-28040 |
from US $56.34 |
||
|
11117E
|
11117E
90341-27006 Plug, W/head Straight Screw, No.1[07.2009 - 01.2013] 2AZFXE..ANF10 |
90341-27006 |
from US $5.12 |
||
|
11117J
|
11117J
90430-27005 Gasket(For Cylinder Head Screw Plug)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90430-27005 |
from US $1.12 |
||
|
11122
|
11122
11122-28010 Bush, Intake Valve Guide[07.2009 - 01.2013] 2AZFXE..ANF10 ＳＴＤ |
11122-28010 |
from US $8.87 |
||
|
11122
|
11122
11123-28010 Bush, Intake Valve Guide[07.2009 - 01.2013] 2AZFXE..ANF10 Ｏ／Ｓ ０．０５ |
11123-28010 |
US $7.43 |
||
|
11126
|
11126
11126-20020 Bush, Exhaust Valve Guide[07.2009 - 01.2013] 2AZFXE..ANF10 ＳＴＤ |
11126-20020 |
from US $6.81 |
||
|
11126
|
11126
11127-20020 Bush, Exhaust Valve Guide[07.2009 - 01.2013] 2AZFXE..ANF10 Ｏ／Ｓ ０．０５ |
11127-20020 |
US $7.68 |
||
|
11131
|
11131
11131-0H020
Seat, Intake Valve
[07.2009 - 04.2012] 2AZFXE..ANF10 ＳＴＤ,（Ｌ） |
11131-0H020 |
— | ||
|
11131
|
11131
11131-28021 Seat, Intake Valve[07.2009 - 01.2013] 2AZFXE..ANF10 ＳＴＤ,（Ｊ） |
11131-28021 |
US $17.47 |
||
|
11131
|
11131
11131-28040 Seat, Intake Valve[12.2013 -] 2AZFXE..ANF10 ＳＴＤ |
11131-28040 |
US $8.74 |
||
|
11131
|
11131
11132-0H020
Seat, Intake Valve
[07.2009 - 04.2012] 2AZFXE..ANF10 Ｏ／Ｓ ０．０３,（Ｌ） |
11132-0H020 |
— | ||
|
11131
|
11131
11132-28021 Seat, Intake Valve[07.2009 - 04.2012] 2AZFXE..ANF10 Ｏ／Ｓ ０．０３,（Ｊ） |
11132-28021 |
US $11.50 |
||
|
11131
|
11131
11132-28040 Seat, Intake Valve[12.2013 -] 2AZFXE..ANF10 Ｏ／Ｓ ０．０３ |
11132-28040 |
from US $8.66 |
||
|
11135
|
11135
11135-0H020
Seat, Exhaust Valve
[07.2009 - 04.2012] 2AZFXE..ANF10 ＳＴＤ,（Ｌ） |
11135-0H020 |
— | ||
|
11135
|
11135
11135-28040 Seat, Exhaust Valve[07.2009 - 01.2013] 2AZFXE..ANF10 ＳＴＤ,（Ｊ） |
11135-28040 |
US $10.34 |
||
|
11135
|
11135
11136-0H020
Seat, Exhaust Valve
[07.2009 - 04.2012] 2AZFXE..ANF10 Ｏ／Ｓ ０．０３,（Ｌ） |
11136-0H020 |
— | ||
|
11135
|
11135
11136-28040
Seat, Exhaust Valve
[07.2009 - 04.2012] 2AZFXE..ANF10 Ｏ／Ｓ ０．０３,（Ｊ） |
11136-28040 |
— | ||
|
11155A
|
11155A
90253-11021 Pin, Ring[07.2009 - 01.2013] 2AZFXE..ANF10 |
90253-11021 |
from US $1.50 |
||
|
11159A
|
11159A
90080-10210 Bolt(For Head To Camshaft Bearing Cap)[07.2009 - 04.2012] 2AZFXE..ANF10 （Ｌ） |
90080-10210 |
US $1.75 |
||
|
11159A
|
11159A
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[07.2009 - 01.2013] 2AZFXE..ANF10 （Ｊ） |
90105-08353 |
from US $0.98 |
||
|
11159C
|
11159C
90080-11292
Bolt(For Head To Camshaft Bearing Cap)
[07.2009 - 04.2012] 2AZFXE..ANF10 （Ｌ） |
90080-11292 |
— | ||
|
11159C
|
11159C
90119-06902 Bolt(For Head To Camshaft Bearing Cap)[07.2009 - 01.2013] 2AZFXE..ANF10 （Ｊ） |
90119-06902 |
from US $1.01 |
||
|
11201
|
11201
11201-28031
Cover Sub-Assy, Cylinder Head
[07.2009 - 03.2011] 2AZFXE..ANF10 |
11201-28031 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-28033 Cover Sub-Assy, Cylinder Head[07.2009 - 03.2011] 2AZFXE..ANF10 |
11201-28033 |
from US $270.72 |
||
|
11201
|
11201
11201-28032 Cover Sub-Assy, Cylinder Head[03.2011 - 10.2012] 2AZFXE..ANF10 |
11201-28032 |
US $253.34 |
||
| replacement | |||||
|
11201
|
11201
11201-28033 Cover Sub-Assy, Cylinder Head[03.2011 - 10.2012] 2AZFXE..ANF10 |
11201-28033 |
from US $270.72 |
||
|
11201
|
11201
11201-28033 Cover Sub-Assy, Cylinder Head[10.2012 - 01.2013] 2AZFXE..ANF10 |
11201-28033 |
from US $270.72 |
||
|
11201H
|
11201H
90119-06903 Bolt(For Cylinder Head Cover)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90119-06903 |
from US $1.28 |
||
|
11213
|
11213
11213-28021 Gasket, Cylinder Head Cover[07.2009 - 01.2013] 2AZFXE..ANF10 |
11213-28021 |
from US $15.85 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[07.2009 - 01.2013] 2AZFXE..ANF10 |
12180-38010 |
from US $10.24 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90430-35001 |
from US $1.21 |
||
|
12281A
|
12281A
12281-0H010
Hanger, Engine, No.1
[07.2009 - 01.2013] 2AZFXE..ANF10 （Ｌ） |
12281-0H010 |
— | ||
|
12281A
|
12281A
12281-28010 Hanger, Engine, No.1[07.2009 - 01.2013] 2AZFXE..ANF10 （Ｊ） |
12281-28010 |
US $12.75 |
||
|
12282D
|
12282D
12282-0H010
Hanger, Engine, No.2
[07.2009 - 01.2013] 2AZFXE..ANF10 （Ｌ） |
12282-0H010 |
— | ||
|
12282D
|
12282D
12282-28010 Hanger, Engine, No.2[07.2009 - 01.2013] 2AZFXE..ANF10 （Ｊ） |
12282-28010 |
US $23.56 |
||
|
12601B
|
12601B
12601-28210 Cover Sub-Assy, Engine, No.1ENGINE, NO.1 [07.2009 - 01.2013] 2AZFXE..ANF10 |
12601-28210 |
US $112.11 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
91551A0632
|
91551A0632
91551-A0632 New Genuine Part |
91551-A0632 |
US $1.44 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9010906385
|
9010906385
90109-06385 Bolt , V-Bank Cover, No.1 |
90109-06385 |
from US $1.28 |
||
|
9012606014
|
9012606014
90126-06014 STUD HEX LOBULAR |
90126-06014 |
US $3.04 |
||
|
9155281020
|
9155281020
91552-81020 Bolt(For Alternator) |
91552-81020 |
US $1.60 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $1.93 |
||
|
G191732010
|
G191732010
G1917-32010 RING O SOLENOID |
G1917-32010 |
from US $2.88 |
||
