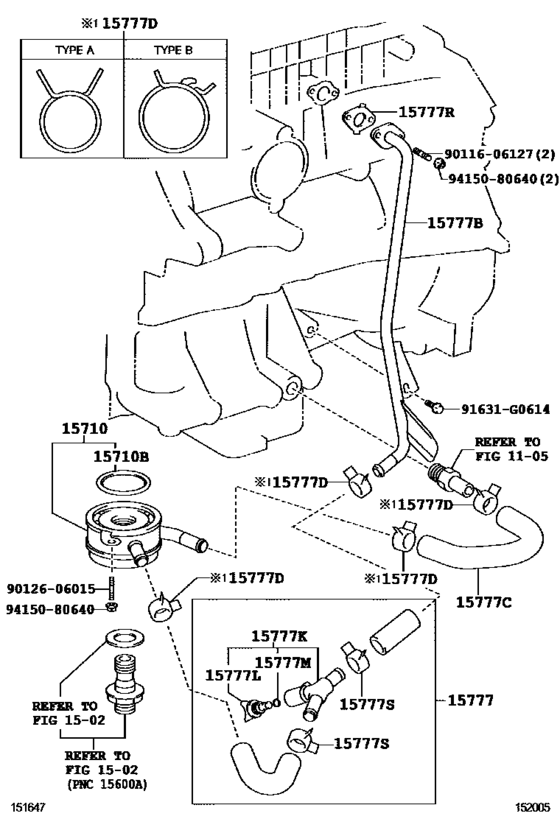

Engine Oil Cooler ([07.2009 - 12.2012] (0907-1212)) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-28020 Cooler Assy, Oil[07.2009 - 01.2013] 2AZFXE..ANF10 |
15710-28020 |
from US $401.86 |
||
|
15710B
|
15710B
90301-52006 Ring, O(For Oil Cooler)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90301-52006 |
from US $3.41 |
||
|
15777
|
15777
16267-28020 Hose, Oil Cooler[07.2009 - 12.2012] 2AZFXE..ANF10 |
16267-28020 |
US $14.27 |
||
| replacement | |||||
|
15777
|
15777
16267-28080 Hose, Oil CoolerOIL COOLER [07.2009 - 12.2012] 2AZFXE..ANF10 |
16267-28080 |
from US $7.86 |
||
|
15777
|
15777
16267-28080 Hose, Oil CoolerOIL COOLER [12.2012 - 01.2013] 2AZFXE..ANF10 |
16267-28080 |
from US $7.86 |
||
|
15777B
|
15777B
16279-28010 Pipe, Oil Cooler[07.2009 - 01.2013] 2AZFXE..ANF10 |
16279-28010 |
US $33.49 |
||
|
15777C
|
15777C
16281-28010 Hose, Oil Cooler[07.2009 - 01.2013] 2AZFXE..ANF10 |
16281-28010 |
from US $5.23 |
||
|
15777D
|
15777D
96134-41900 Clip Or Clamp(For Ventilation Hose)[07.2009 - 07.2012] 2AZFXE..ANF10 |
96134-41900 |
from US $1.44 |
||
|
15777D
|
15777D
96136-42201 Clip(For Ventilation Hose No.2)[07.2012 - 01.2013] 2AZFXE..ANF10 ＴＹＰＥ Ｂ：イラスト参照 |
96136-42201 |
from US $1.15 |
||
|
15777K
|
15777K
90910-09119 Cock Assy, Drain(For Oil Cooler Hose)[07.2009 - 12.2012] 2AZFXE..ANF10 |
90910-09119 |
US $25.25 |
||
|
15777L
|
15777L
23322-54010 Plug,air(For Oil Cooler Drain Cock)[07.2009 - 12.2012] 2AZFXE..ANF10 |
23322-54010 |
from US $5.09 |
||
|
15777M
|
15777M
16492-21050 Ring, O(For Oil Cooler Drain Cock)[07.2009 - 12.2012] 2AZFXE..ANF10 |
16492-21050 |
US $3.36 |
||
|
15777R
|
15777R
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[07.2009 - 01.2013] 2AZFXE..ANF10 |
16258-28040 |
from US $2.77 |
||
|
15777S
|
15777S
96134-41900 Clip Or Clamp(For Ventilation Hose)[07.2009 - 12.2012] 2AZFXE..ANF10 |
96134-41900 |
from US $1.44 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.70 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.76 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $1.93 |
||
