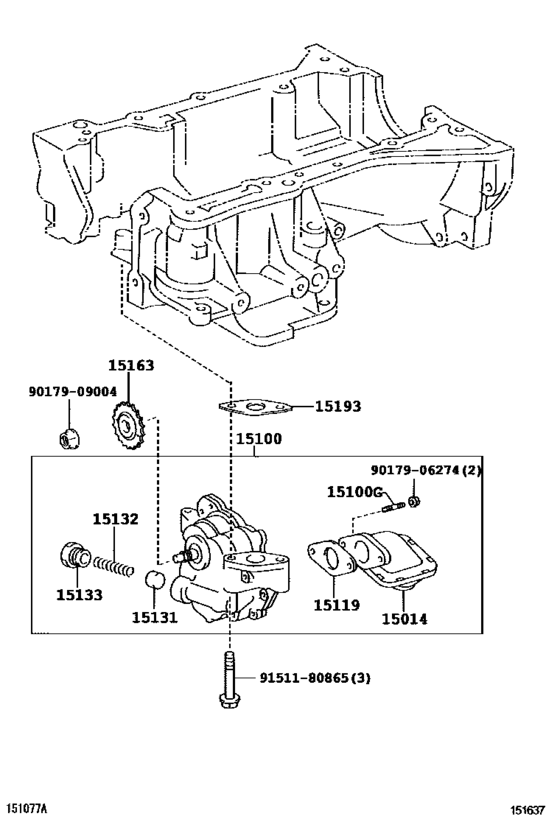

Engine Oil Pump ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15014
|
15014
15014-28020 Strainer Set, Oil Pump[07.2009 - 01.2013] 2AZFXE..ANF10 |
15014-28020 |
from US $16.05 |
||
|
15100
|
15100
15100-28020 Pump Assy, Oil[07.2009 - 01.2013] 2AZFXE..ANF10 |
15100-28020 |
from US $85.94 |
||
|
15100G
|
15100G
15183-28020 Bolt,stud(For Oil Pump)[07.2009 - 01.2013] 2AZFXE..ANF10 |
15183-28020 |
US $4.48 |
||
|
15119
|
15119
15119-28020 Gasket, Oil Pump Cover[07.2009 - 01.2013] 2AZFXE..ANF10 |
15119-28020 |
from US $4.37 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[07.2009 - 01.2013] 2AZFXE..ANF10 |
15131-46040 |
from US $3.10 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[07.2009 - 01.2013] 2AZFXE..ANF10 |
15132-46020 |
from US $1.72 |
||
|
15133
|
15133
15133-28020 Plug, Oil Pump Relief Valve[07.2009 - 01.2013] 2AZFXE..ANF10 |
15133-28020 |
from US $3.67 |
||
|
15163
|
15163
15163-28010 Gear, Oil Pump Drive Shaft[07.2009 - 01.2013] 2AZFXE..ANF10 |
15163-28010 |
from US $3.92 |
||
|
15193
|
15193
15193-28010 Gasket, Oil Pump[07.2009 - 01.2013] 2AZFXE..ANF10 |
15193-28010 |
from US $5.81 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017909004
|
9017909004
90179-09004 NUT |
90179-09004 |
from US $1.07 |
||
|
9151180865
|
9151180865
91511-80865 Bolt(For Cylinder Head Set Sub) |
91511-80865 |
US $0.87 |
