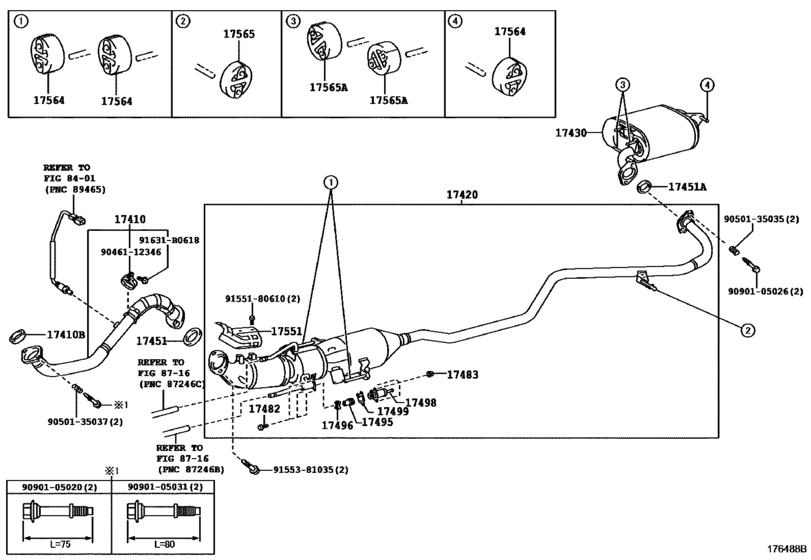

Exhaust Pipe ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-28630 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [07.2009 - 01.2013] 2AZFXE..ANF10 |
17410-28630 |
US $231.84 |
||
|
17410B
|
17410B
17451-28070 Gasket, Exhaust Pipe[07.2009 - 01.2013] 2AZFXE..ANF10 |
17451-28070 |
US $21.32 |
||
| replacement | |||||
|
17410B
|
17410B
17451-28041 Gasket, Exhaust Pipe[07.2009 - 01.2013] 2AZFXE..ANF10 |
17451-28041 |
from US $21.72 |
||
|
17420
|
17420
17420-28A10 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [07.2009 - 01.2010] 2AZFXE..ANF10 |
17420-28A10 |
US $2,358.72 |
||
| replacement | |||||
|
17420
|
17420
17420-28A12 Pipe Assy, Exhaust, Center[07.2009 - 01.2010] 2AZFXE..ANF10 |
17420-28A12 |
US $2,293.92 |
||
|
17420
|
17420
17420-28A11 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [02.2010 - 01.2013] 2AZFXE..ANF10 |
17420-28A11 |
US $2,358.72 |
||
| replacement | |||||
|
17420
|
17420
17420-28A12 Pipe Assy, Exhaust, Center[02.2010 - 01.2013] 2AZFXE..ANF10 |
17420-28A12 |
US $2,293.92 |
||
|
17420
|
17420
17420-28A12 Pipe Assy, Exhaust, Center[03.2013 -] 2AZFXE..ANF10 |
17420-28A12 |
US $2,293.92 |
||
|
17430
|
17430
17430-28A20 Pipe Assy, Exhaust, TailEXHAUST, TAIL [07.2009 - 01.2013] 2AZFXE..ANF10 |
17430-28A20 |
US $441 |
||
|
17451
|
17451
90917-06078 Gasket, Exhaust Pipe[07.2009 - 01.2013] 2AZFXE..ANF10 |
90917-06078 |
from US $5.44 |
||
| replacement | |||||
|
17451
|
17451
90917-A6003 Gasket, Exhaust Pipe[07.2009 - 01.2013] 2AZFXE..ANF10 |
90917-A6003 |
US $19.80 |
||
|
17451A
|
17451A
17451-23041 Gasket, Exhaust Pipe[07.2009 - 09.2010] 2AZFXE..ANF10 |
17451-23041 |
US $12.81 |
||
| replacement | |||||
|
17451A
|
17451A
17451-23042 Gasket, Exhaust Pipe, Center[07.2009 - 09.2010] 2AZFXE..ANF10 |
17451-23042 |
US $9.26 |
||
|
17451A
|
17451A
17451-23042 Gasket, Exhaust Pipe, Center[10.2010 - 01.2013] 2AZFXE..ANF10 |
17451-23042 |
US $9.26 |
||
|
17482
|
17482
17482-47010 Bolt, Exhaust Pipe Gas Control ActuatorEXHAUST PIPE GAS CONTROL ACTUATOR [07.2009 - 01.2013] 2AZFXE..ANF10 |
17482-47010 |
US $5.12 |
||
|
17483
|
17483
17483-47010 Nut, Exhaust Pipe Gas Control ActuatorEXHAUST PIPE GAS CONTROL ACTUATOR [07.2009 - 01.2013] 2AZFXE..ANF10 |
17483-47010 |
US $3.52 |
||
|
17495
|
17495
17495-47010 Actuator, Exhaust Pipe Gas ControlEXHAUST PIPE GAS CONTROL [07.2009 - 01.2013] 2AZFXE..ANF10 |
17495-47010 |
US $52.14 |
||
|
17496
|
17496
17496-47010 Stopper, Exhaust Pipe Gas Control ActuatorEXHAUST PIPE GAS CONTROL ACTUATOR [07.2009 - 01.2013] 2AZFXE..ANF10 |
17496-47010 |
US $3.52 |
||
|
17498
|
17498
17498-47010 Case, Exhaust Pipe Gas Control ActuatorEXHAUST PIPE GAS CONTROL ACTUATOR [07.2009 - 01.2013] 2AZFXE..ANF10 |
17498-47010 |
US $66.42 |
||
|
17499
|
17499
17499-47010 Gasket, Exhaust Pipe Gas Control ActuatorEXHAUST PIPE GAS CONTROL ACTUATOR [07.2009 - 01.2013] 2AZFXE..ANF10 |
17499-47010 |
US $5.28 |
||
|
17551
|
17551
17551-28040 Insulator, Exhaust Pipe Heat, No.1EXHAUST PIPE HEAT, NO.1 [07.2009 - 01.2013] 2AZFXE..ANF10 |
17551-28040 |
US $38.44 |
||
|
17564
|
17564
17565-28010 Support, Exhaust Pipe, No.1[07.2009 - 10.2009] 2AZFXE..ANF10 |
17565-28010 |
from US $9.89 |
||
|
17565
|
17565
17565-22030 Support, Exhaust Pipe, No.1[07.2009 - 01.2013] 2AZFXE..ANF10 |
17565-22030 |
from US $8.25 |
||
|
17565A
|
17565A
17565-22040 Support, Exhaust Pipe, No.1[10.2009 - 01.2013] 2AZFXE..ANF10 |
17565-22040 |
from US $9.95 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.86 |
||
|
9046112346
|
9046112346
90461-12346 New Genuine Part |
90461-12346 |
US $7.29 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
from US $3.20 |
||
|
9050135037
|
9050135037
90501-35037 Spring, Exhaust Pipe |
90501-35037 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $4.96 |
||
|
9090105031
|
9090105031
90901-05031 BOLT |
90901-05031 |
from US $3.68 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $0.96 |
||
|
9155381035
|
9155381035
91553-81035 BOLT, FLANGE |
91553-81035 |
from US $1.25 |
||
