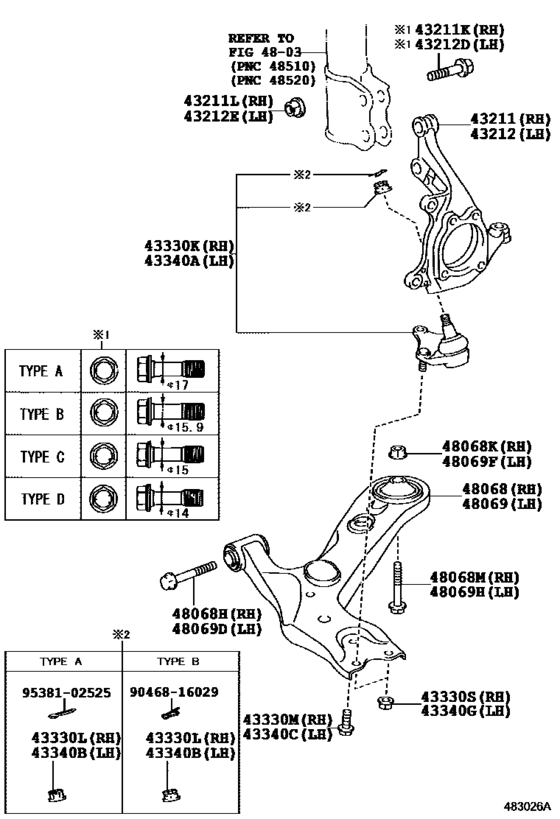

Front Axle Arm & Steering Knuckle ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-42080 Knuckle, Steering, Rh[07.2009 - 08.2012] ANF10 |
43211-42080 |
US $222.77 |
||
| replacement | |||||
|
43211
|
43211
43211-42081 Knuckle, Steering, Rh[07.2009 - 08.2012] ANF10 |
43211-42081 |
from US $211.97 |
||
|
43211
|
43211
43211-42081 Knuckle, Steering, Rh[09.2012 - 01.2013] ANF10 |
43211-42081 |
from US $211.97 |
||
|
43211K
|
43211K
90105-17008 Bolt (For Steering Knuckle Rh)[07.2009 - 01.2010] ANF10 外径＝１７,ＴＹＰＥ Ａ：イラスト参照 |
90105-17008 |
from US $4.06 |
||
|
43211K
|
43211K
90105-17009 Bolt (For Steering Knuckle Rh)[07.2009 - 01.2013] ANF10 外径＝１５．９,ＴＹＰＥ Ｂ：イラスト参照 |
90105-17009 |
from US $4.23 |
||
|
43211K
|
43211K
90105-17010 Bolt (For Steering Knuckle Rh)[07.2009 - 01.2013] ANF10 外径＝１５,ＴＹＰＥ Ｃ：イラスト参照 |
90105-17010 |
from US $4.19 |
||
|
43211K
|
43211K
90105-17011 Bolt (For Steering Knuckle Rh)[07.2009 - 01.2013] ANF10 外径＝１４,ＴＹＰＥ Ｄ：イラスト参照 |
90105-17011 |
from US $3.30 |
||
|
43211K
|
43211K
90105-17012 Bolt (For Rear Axle Carrier Rh)[01.2010 - 01.2013] ANF10 外径＝１７,ＴＹＰＥ Ａ：イラスト参照 |
90105-17012 |
from US $3.96 |
||
|
43211L
|
43211L
90178-17002 Nut (For Rear Axle Carrier Rh)[07.2009 - 01.2013] ANF10 |
90178-17002 |
from US $1.64 |
||
|
43212
|
43212
43212-42080 Knuckle, Steering, Lh[07.2009 - 08.2012] ANF10 |
43212-42080 |
US $222.77 |
||
| replacement | |||||
|
43212
|
43212
43212-42081 Knuckle, Steering, Lh[07.2009 - 08.2012] ANF10 |
43212-42081 |
from US $206.86 |
||
|
43212
|
43212
43212-42081 Knuckle, Steering, Lh[09.2012 - 01.2013] ANF10 |
43212-42081 |
from US $206.86 |
||
|
43212D
|
43212D
90105-17008 Bolt (For Steering Knuckle Rh)[07.2009 - 01.2010] ANF10 外径＝１７ |
90105-17008 |
from US $4.06 |
||
|
43212D
|
43212D
90105-17009 Bolt (For Steering Knuckle Rh)[07.2009 - 01.2013] ANF10 外径＝１５．９,ＴＹＰＥ Ｂ：イラスト参照 |
90105-17009 |
from US $4.23 |
||
|
43212D
|
43212D
90105-17010 Bolt (For Steering Knuckle Rh)[07.2009 - 01.2013] ANF10 外径＝１５,ＴＹＰＥ Ｃ：イラスト参照 |
90105-17010 |
from US $4.19 |
||
|
43212D
|
43212D
90105-17011 Bolt (For Steering Knuckle Rh)[07.2009 - 01.2013] ANF10 外径＝１４,ＴＹＰＥ Ｄ：イラスト参照 |
90105-17011 |
from US $3.30 |
||
|
43212D
|
43212D
90105-17012 Bolt (For Rear Axle Carrier Rh)[01.2010 - 01.2013] ANF10 外径＝１７ |
90105-17012 |
from US $3.96 |
||
|
43212E
|
43212E
90178-17002 Nut (For Rear Axle Carrier Rh)[07.2009 - 01.2013] ANF10 |
90178-17002 |
from US $1.64 |
||
|
43330K
|
43330K
43330-49195 Joint Assy, Lower Ball, Front RhLOWER BALL, FRONT RH [07.2009 - 01.2013] ANF10 |
43330-49195 |
US $44.99 |
||
|
43330L
|
43330L
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[07.2009 - 01.2013] ANF10 タイプ Ａ |
90171-14003 |
from US $1.37 |
||
|
43330L
|
43330L
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[07.2009 - 01.2013] ANF10 タイプ Ｂ |
90171-14011 |
from US $1.31 |
||
|
43330M
|
43330M
90105-12346 Bolt (For Front Lower Ball Joint)[07.2009 - 01.2013] ANF10 |
90105-12346 |
from US $1.19 |
||
|
43330S
|
43330S
90178-12019 Nut (For Front Lower Ball Joint Setting)[07.2009 - 01.2013] ANF10 |
90178-12019 |
from US $1.15 |
||
|
43340A
|
43340A
43330-49195 Joint Assy, Lower Ball, Front RhLOWER BALL, FRONT RH [07.2009 - 01.2013] ANF10 |
43330-49195 |
US $44.99 |
||
|
43340B
|
43340B
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[07.2009 - 01.2013] ANF10 タイプ Ａ |
90171-14003 |
from US $1.37 |
||
|
43340B
|
43340B
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[07.2009 - 01.2013] ANF10 タイプ Ｂ |
90171-14011 |
from US $1.31 |
||
|
43340C
|
43340C
90105-12346 Bolt (For Front Lower Ball Joint)[07.2009 - 01.2013] ANF10 |
90105-12346 |
from US $1.19 |
||
|
43340G
|
43340G
90178-12019 Nut (For Front Lower Ball Joint Setting)[07.2009 - 01.2013] ANF10 |
90178-12019 |
from US $1.15 |
||
|
48068
|
48068
48068-12300 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[07.2009 - 01.2013] ANF10 |
48068-12300 |
from US $197.11 |
||
|
48068H
|
48068H
90105-16090 Bolt(For Front Suspension Lower Arm No.1 Rh)[08.2012 - 01.2013] ANF10 |
90105-16090 |
from US $4.74 |
||
|
48068H
|
48068H
91554-L1690 Bolt(For Front Suspension Lower Arm No.1 Rh)[07.2009 - 07.2012] ANF10 |
91554-L1690 |
from US $6.12 |
||
|
48068K
|
48068K
90178-16006 Nut(For Front Suspension Lower Arm No.2 Rh)[07.2009 - 01.2013] ANF10 |
90178-16006 |
from US $1.58 |
||
|
48068M
|
48068M
90105-16090 Bolt(For Front Suspension Lower Arm No.1 Rh)[08.2012 - 01.2013] ANF10 |
90105-16090 |
from US $4.74 |
||
|
48068M
|
48068M
91554-L1690 Bolt(For Front Suspension Lower Arm No.1 Rh)[07.2009 - 07.2012] ANF10 |
91554-L1690 |
from US $6.12 |
||
|
48069
|
48069
48069-12300 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[07.2009 - 01.2013] ANF10 |
48069-12300 |
from US $210.24 |
||
|
48069D
|
48069D
90105-16090 Bolt(For Front Suspension Lower Arm No.1 Rh)[08.2012 - 01.2013] ANF10 |
90105-16090 |
from US $4.74 |
||
|
48069D
|
48069D
91554-L1690 Bolt(For Front Suspension Lower Arm No.1 Rh)[07.2009 - 07.2012] ANF10 |
91554-L1690 |
from US $6.12 |
||
|
48069F
|
48069F
90178-16006 Nut(For Front Suspension Lower Arm No.2 Rh)[07.2009 - 01.2013] ANF10 |
90178-16006 |
from US $1.58 |
||
|
48069H
|
48069H
90105-16090 Bolt(For Front Suspension Lower Arm No.1 Rh)[08.2012 - 01.2013] ANF10 |
90105-16090 |
from US $4.74 |
||
|
48069H
|
48069H
91554-L1690 Bolt(For Front Suspension Lower Arm No.1 Rh)[07.2009 - 07.2012] ANF10 |
91554-L1690 |
from US $6.12 |
||
|
9046816029
|
9046816029
90468-16029 CLIP |
90468-16029 |
from US $0.64 |
||
|
9538102525
|
9538102525
95381-02525 PINCOTTER |
95381-02525 |
from US $1.92 |
||
