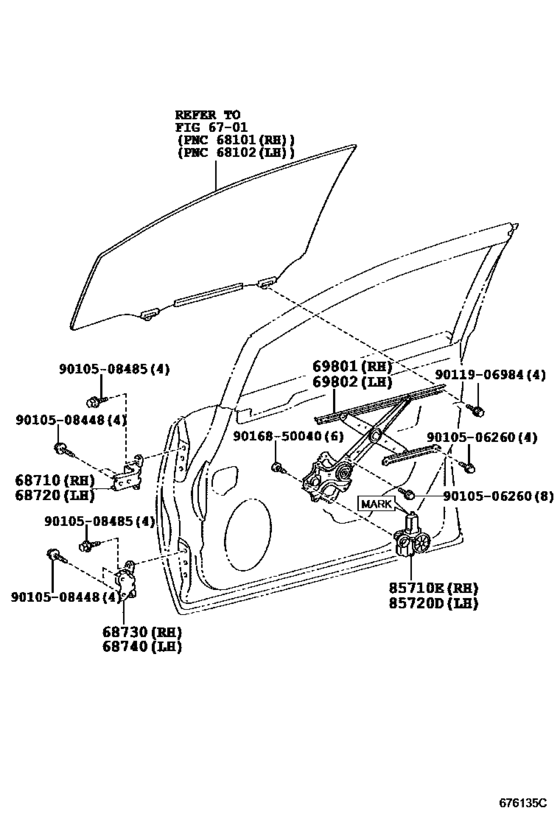

Front Door Window Regulator & Hinge ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[07.2009 - 01.2013] ANF10 |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[07.2009 - 01.2013] ANF10 |
68720-12151 |
from US $31.16 |
||
|
68730
|
68730
68730-12120 Hinge Assy, Front Door, Lower Rh[07.2009 - 01.2013] ANF10 |
68730-12120 |
from US $34.05 |
||
|
68740
|
68740
68740-12120 Hinge Assy, Front Door, Lower Lh[07.2009 - 01.2013] ANF10 |
68740-12120 |
from US $34.05 |
||
|
69801
|
69801
69801-48050 Regulator Sub-Assy, Front Door Window, RhFRONT DOOR WINDOW, RH [07.2009 - 01.2013] ANF10 |
69801-48050 |
US $75.48 |
||
|
69802
|
69802
69802-48060 Regulator Sub-Assy, Front Door Window, LhFRONT DOOR WINDOW, LH [07.2009 - 01.2013] ANF10 |
69802-48060 |
US $75.48 |
||
|
85710E
|
85710E
85710-47110 Motor Assy, Power Window Regulator, Rh[01.2013 - 05.2015] ANF10 マーク＝Ｔ１ |
85710-47110 |
from US $408.84 |
||
|
85710E
|
85710E
85710-48070 Motor Assy, Power Window Regulator, RhPOWER WINDOW REGULATOR, RH [07.2009 - 11.2010] ANF10 識別記号＝Ｒ１ |
85710-48070 |
US $372.74 |
||
| replacement | |||||
|
85710E
|
85710E
85710-47110 Motor Assy, Power Window Regulator, Rh[07.2009 - 11.2010] ANF10 識別記号＝Ｒ１ |
85710-47110 |
from US $408.84 |
||
|
85710E
|
85710E
85710-60350 Motor Assy, Power Window Regulator, Rh[05.2015 - 06.2015] ANF10 識別記号＝ＥＫ１ |
85710-60350 |
US $310.13 |
||
|
85710E
|
85710E
85710-60351 Motor Assy, Power Window Regulator, Rh[06.2015 -] ANF10 識別記号＝ＥＢ１ |
85710-60351 |
from US $281.01 |
||
|
85710E
|
85710E
85710-75060 Motor Assy, Power Window Regulator, Rh[11.2010 - 01.2013] ANF10 識別記号＝Ｆ１ |
85710-75060 |
US $458.64 |
||
| replacement | |||||
|
85710E
|
85710E
85710-47110 Motor Assy, Power Window Regulator, Rh[11.2010 - 01.2013] ANF10 識別記号＝Ｆ１ |
85710-47110 |
from US $408.84 |
||
|
85720D
|
85720D
85720-47110 Motor Assy, Power Window Regulator, Lh[01.2013 - 05.2015] ANF10 マーク＝Ｔ２ |
85720-47110 |
from US $413.71 |
||
|
85720D
|
85720D
85720-48080 Motor Assy, Power Window Regulator, LhPOWER WINDOW REGULATOR, LH [07.2009 - 11.2010] ANF10 識別記号＝Ｒ２ |
85720-48080 |
US $372.74 |
||
| replacement | |||||
|
85720D
|
85720D
85720-47110 Motor Assy, Power Window Regulator, Lh[07.2009 - 11.2010] ANF10 識別記号＝Ｒ２ |
85720-47110 |
from US $413.71 |
||
|
85720D
|
85720D
85720-60330 Motor Assy, Power Window Regulator, Lh[05.2015 - 06.2015] ANF10 識別記号＝ＥＫ２ |
85720-60330 |
US $310.13 |
||
| replacement | |||||
|
85720D
|
85720D
85720-60331 Motor Assy, Power Window Regulator, Lh[05.2015 - 06.2015] ANF10 識別記号＝ＥＫ２ |
85720-60331 |
from US $281.01 |
||
|
85720D
|
85720D
85720-60331 Motor Assy, Power Window Regulator, Lh[06.2015 -] ANF10 識別記号＝ＥＢ２ |
85720-60331 |
from US $281.01 |
||
|
85720D
|
85720D
85720-75060 Motor Assy, Power Window Regulator, Lh[11.2010 - 01.2013] ANF10 識別記号＝Ｆ２ |
85720-75060 |
US $458.64 |
||
| replacement | |||||
|
85720D
|
85720D
85720-47110 Motor Assy, Power Window Regulator, Lh[11.2010 - 01.2013] ANF10 識別記号＝Ｆ２ |
85720-47110 |
from US $413.71 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.82 |
||
|
9010508485
|
9010508485
90105-08485 BOLT FLANGE |
90105-08485 |
from US $0.78 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $0.96 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
