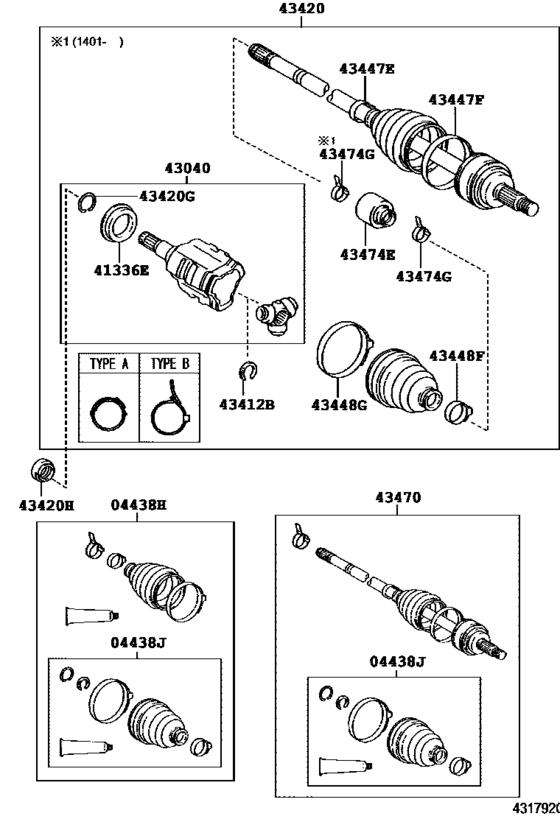

Front Drive Shaft ([07.2009 - ] ﾚﾌﾄ (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-42070
Boot Kit, Front Drive Shaft, In & Outboard, LH
[07.2009 - 01.2013] ANF10 |
04428-42070 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04428-42071 Boot Kit, Front Drive Shaft, In & Outboard, LH[07.2009 - 01.2013] ANF10 |
04428-42071 |
from US $155.52 |
||
|
04438H
|
04438H
04428-44031 Boot Kit, Front Drive Shaft, In & Outboard, Lh[08.2014 -] ANF10 |
04428-44031 |
US $90.27 |
||
|
04438J
|
04438J
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[07.2009 - 01.2013] ANF10 |
04438-42180 |
from US $69.93 |
||
|
41336E
|
41336E
41336-28030 Cover, Front Drive Shaft Dust, Lh[07.2009 - 01.2013] ANF10 |
41336-28030 |
US $4.37 |
||
|
43040
|
43040
43040-28021 Joint Assy, Front Drive Inboard, Lh[07.2009 - 01.2013] ANF10 |
43040-28021 |
from US $274.03 |
||
|
43412B
|
43412B
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[07.2009 - 01.2013] ANF10 |
43425-28010 |
US $0.64 |
||
|
43420
|
43420
43420-75010 Shaft Assy, Front Drive, LhFRONT DRIVE, LH [07.2009 - 01.2013] ANF10 |
43420-75010 |
US $698.88 |
||
| replacement | |||||
|
43420
|
43420
43420-75011 Shaft Assy, Front Drive, Lh[07.2009 - 01.2013] ANF10 |
43420-75011 |
US $634.82 |
||
|
43420
|
43420
43420-75011 Shaft Assy, Front Drive, Lh[08.2016 -] ANF10 |
43420-75011 |
US $634.82 |
||
|
43420G
|
43420G
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[07.2009 - 01.2013] ANF10 |
90521-33002 |
from US $1.60 |
||
|
43420H
|
43420H
90311-50031
Oil Seal, Front Drive Shaft, Lh
[07.2009 - 09.2012] ANF10 |
90311-50031 |
— | ||
| replacements | |||||
|
43420H
|
43420H
90311-50053 Oil Seal, Front Drive Shaft, Lh[07.2009 - 09.2012] ANF10 |
90311-50053 |
from US $11.21 |
||
|
43420H
|
43420H
90311-50063 SEAL TYPE T OIL[07.2009 - 09.2012] ANF10 |
90311-50063 |
from US $12.32 |
||
|
43420H
|
43420H
90311-50053 Oil Seal, Front Drive Shaft, Lh[09.2012 - 01.2013] ANF10 |
90311-50053 |
from US $11.21 |
||
|
43447E
|
43447E
42345-42100 Clamp (For Front Axle Outboard Joint Boot)Small [07.2009 - 01.2013] ANF10 |
42345-42100 |
US $3.52 |
||
|
43447F
|
43447F
42345-42090 Clamp, No.2 (For Front Axle Outboard Joint Boot)Big [07.2009 - 01.2013] ANF10 |
42345-42090 |
from US $5.44 |
||
|
43448F
|
43448F
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [07.2009 - 01.2013] ANF10 ＴＹＰＥ Ａ：イラスト参照 |
42345-42010 |
from US $0.84 |
||
|
43448F
|
43448F
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[07.2009 - 01.2013] ANF10 ＴＹＰＥ Ｂ：イラスト参照 |
90949-01559 |
US $5.12 |
||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [07.2009 - 01.2013] ANF10 |
42345-12160 |
from US $4.64 |
||
|
43470
|
43470
43470-79105 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [07.2009 - 01.2013] ANF10 |
43470-79105 |
US $486.30 |
||
| replacement | |||||
|
43470
|
43470
43470-79106 Shaft Assy, Front Drive Outboard Joint, Lh[07.2009 - 01.2013] ANF10 |
43470-79106 |
US $441.17 |
||
|
43470
|
43470
43470-79106 Shaft Assy, Front Drive Outboard Joint, Lh[08.2014 -] ANF10 |
43470-79106 |
US $441.17 |
||
|
43474E
|
43474E
43474-42030 Damper, Front Drive Shaft, LhFRONT DRIVE SHAFT, LH [08.2016 -] ANF10 |
43474-42030 |
US $55.04 |
||
|
43474E
|
43474E
43474-75010 Damper, Front Drive Shaft, LhFRONT DRIVE SHAFT, LH [07.2009 - 01.2013] ANF10 |
43474-75010 |
US $54.89 |
||
| replacement | |||||
|
43474E
|
43474E
43474-42030 Damper, Front Drive Shaft, LhFRONT DRIVE SHAFT, LH [07.2009 - 01.2013] ANF10 |
43474-42030 |
US $55.04 |
||
|
43474G
|
43474G
42345-14010 Clamp, Rear Drive Shaft Boot[07.2009 - 01.2013] ANF10 |
42345-14010 |
US $11.20 |
||
