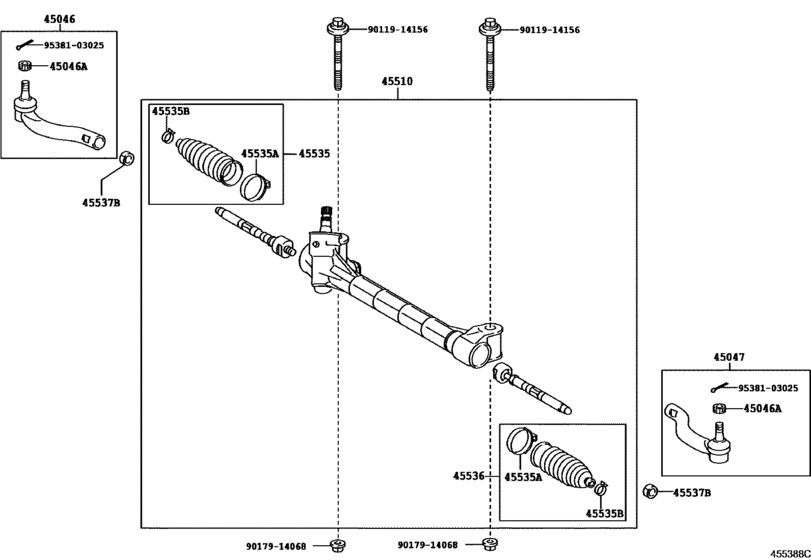

Front Steering Gear & Link ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-49195 End Sub-Assy, Tie Rod, Rh[07.2009 - 01.2013] ANF10 |
45046-49195 |
from US $47.07 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[07.2009 - 01.2013] ANF10 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-49135 End Sub-Assy, Tie Rod, Lh[07.2009 - 01.2013] ANF10 |
45047-49135 |
from US $49.08 |
||
|
45510
|
45510
45510-75020 Gear Assy, SteeringSTEERING [07.2009 - 01.2013] ANF10 |
45510-75020 |
US $517.17 |
||
|
45510
|
45510
45510-75050 Gear Assy, Steering[05.2015 -] ANF10 |
45510-75050 |
US $401.86 |
||
|
45535
|
45535
45535-49015 Boot, Steering Rack, No.1STEERING RACK, NO.1 [07.2009 - 01.2013] ANF10 |
45535-49015 |
from US $17.63 |
||
|
45535A
|
45535A
45538-47010 Clamp(For Steering Rack Boot)[07.2009 - 01.2013] ANF10 |
45538-47010 |
US $4.32 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[07.2009 - 01.2013] ANF10 |
90467-19021 |
from US $1.52 |
||
|
45536
|
45536
45535-49015 Boot, Steering Rack, No.1STEERING RACK, NO.1 [07.2009 - 01.2013] ANF10 |
45535-49015 |
from US $17.63 |
||
|
45537B
|
45537B
90178-16001 Nut[07.2009 - 01.2013] ANF10 |
90178-16001 |
from US $1.37 |
||
|
9011914156
|
9011914156
90119-14156 Bolt, Steering Rack Housing |
90119-14156 |
US $7.68 |
||
|
9017914068
|
9017914068
90179-14068 Nut(For Front Suspension Lower Arm) |
90179-14068 |
US $1.92 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
