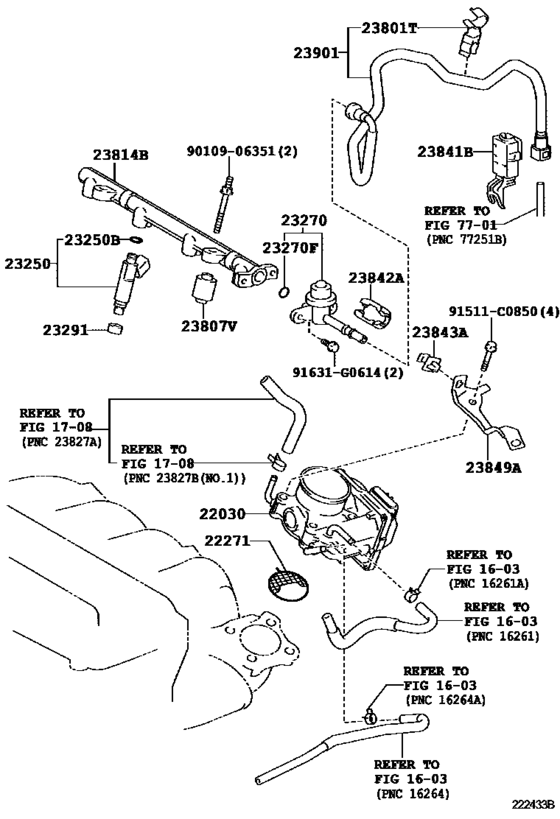

Fuel Injection System ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-28071 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [07.2009 - 01.2013] 2AZFXE..ANF10 |
22030-28071 |
from US $778.95 |
||
|
22271
|
22271
22271-75031 Gasket, Throttle Body[07.2009 - 01.2013] 2AZFXE..ANF10 |
22271-75031 |
from US $3.02 |
||
|
23250
|
23250
23209-28060 Injector Assy, Fuel[07.2009 - 01.2013] 2AZFXE..ANF10 |
23209-28060 |
US $241.92 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90301-07037 |
from US $2.24 |
||
|
23270
|
23270
23270-28052 Damper Assy, Fuel Pressure Pulsation[07.2009 - 01.2013] 2AZFXE..ANF10 |
23270-28052 |
from US $106.53 |
||
|
23270
|
23270
23270-28070
Damper Assy, Fuel Pressure Pulsation
[12.2014 -] 2AZFXE..ANF10 |
23270-28070 |
— | ||
|
23270F
|
23270F
90301-07037 Ring, O(For Fuel Injector)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90301-07037 |
from US $2.24 |
||
|
23291
|
23291
23291-28020 Insulator, Injector Vibration[07.2009 - 01.2013] 2AZFXE..ANF10 |
23291-28020 |
from US $4 |
||
|
23801T
|
23801T
23841-28060 Clamp Or Clip, Fuel Hose(For Efi)FUEL HOSE(FOR EFI) [07.2009 - 01.2013] 2AZFXE..ANF10 |
23841-28060 |
US $1.31 |
||
|
23807V
|
23807V
90561-08053 Spacer, No.1(For Delivery Pipe)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90561-08053 |
from US $1.40 |
||
|
23814B
|
23814B
23814-28031 Pipe Sub-Assy, Fuel Delivery[07.2009 - 01.2013] 2AZFXE..ANF10 |
23814-28031 |
US $70.91 |
||
|
23814B
|
23814B
23814-28060 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [12.2014 -] 2AZFXE..ANF10 |
23814-28060 |
US $78.62 |
||
|
23841B
|
23841B
23841-21040 Clamp, Fuel Pipe, No.1(For Efi)[07.2009 - 11.2012] 2AZFXE..ANF10 |
23841-21040 |
US $13.54 |
||
|
23841B
|
23841B
23841-37090 Clamp, Fuel Pipe, No.1(For Efi)[11.2012 - 01.2013] 2AZFXE..ANF10 |
23841-37090 |
US $14.56 |
||
|
23842A
|
23842A
23842-28010 Clamp, Fuel Pipe, No.1(For Efi)[07.2009 - 01.2013] 2AZFXE..ANF10 |
23842-28010 |
from US $5.99 |
||
|
23843A
|
23843A
90469-12012 Clamp Or Clip(For Fuel Hose)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90469-12012 |
from US $3.36 |
||
|
23849A
|
23849A
23849-28090 Support, Fuel PipeFUEL PIPE [07.2009 - 01.2013] 2AZFXE..ANF10 |
23849-28090 |
US $3.79 |
||
|
23901
|
23901
23901-28090 Tube Sub-Assy, FuelFUEL [07.2009 - 01.2013] 2AZFXE..ANF10 |
23901-28090 |
US $65.67 |
||
|
91511C0850
|
91511C0850
91511-C0850 New Genuine Part |
91511-C0850 |
US $0.87 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
US $0.96 |
||
|
9010906351
|
9010906351
90109-06351 New Genuine Part |
90109-06351 |
US $1.31 |
