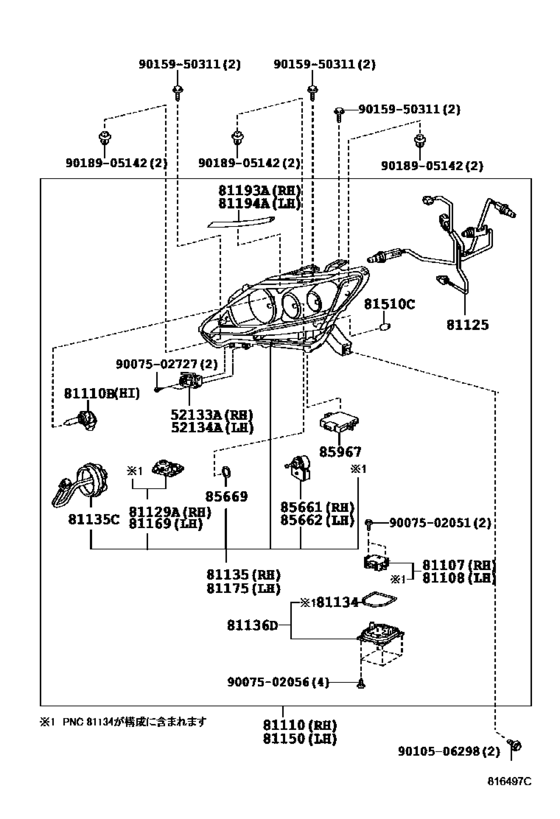

Headlamp ([01.2013 - ] (1301- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52133A
|
52133A
52133-75020 Bracket, Front Bumper, RhFRONT BUMPER, RH [07.2009 - 01.2013] ANF10 |
52133-75020 |
US $16.35 |
||
|
52134A
|
52134A
52134-75020 Bracket, Front Bumper, LhFRONT BUMPER, LH [07.2009 - 01.2013] ANF10 |
52134-75020 |
US $14 |
||
|
81107
|
81107
81107-47240
Computer Sub-Assy, Headlamp Light Control
[07.2009 - 06.2011] ANF10 |
81107-47240 |
— | ||
| replacement | |||||
|
81107
|
81107
81107-47290 Computer Sub-Assy, Headlamp Light Control[07.2009 - 06.2011] ANF10 |
81107-47290 |
US $779.80 |
||
|
81107
|
81107
81107-47290 Computer Sub-Assy, Headlamp Light Control[06.2011 - 01.2013] ANF10 |
81107-47290 |
US $779.80 |
||
|
81107
|
81107
81107-47380 Computer Sub-Assy, Headlamp Light Control[01.2013 -] ANF10 |
81107-47380 |
US $590.30 |
||
|
81108
|
81108
81107-47240
Computer Sub-Assy, Headlamp Light Control
[07.2009 - 06.2011] ANF10 |
81107-47240 |
— | ||
| replacement | |||||
|
81108
|
81108
81107-47290 Computer Sub-Assy, Headlamp Light Control[07.2009 - 06.2011] ANF10 |
81107-47290 |
US $779.80 |
||
|
81108
|
81108
81107-47290 Computer Sub-Assy, Headlamp Light Control[06.2011 - 01.2013] ANF10 |
81107-47290 |
US $779.80 |
||
|
81108
|
81108
81107-47380 Computer Sub-Assy, Headlamp Light Control[01.2013 -] ANF10 |
81107-47380 |
US $590.30 |
||
|
81110
|
81110
81110-75081 Headlamp Assy, RhRH [07.2009 - 01.2013] ANF10 |
81110-75081 |
US $2,009.28 |
||
|
81110
|
81110
81110-75161 Headlamp Assy, Rh[01.2013 - 02.2015] ANF10 |
81110-75161 |
US $2,052.96 |
||
| replacement | |||||
|
81110
|
81110
81110-75162 Headlamp Assy, Rh[01.2013 - 02.2015] ANF10 |
81110-75162 |
US $1,863.68 |
||
|
81110
|
81110
81110-75162 Headlamp Assy, Rh[03.2015 -] ANF10 |
81110-75162 |
US $1,863.68 |
||
|
81110B
|
81110B
90981-13046-79 Bulb(For Headlamp, No.1)NO.1) [07.2009 - 01.2013] ANF10 １２Ｖ６５Ｗ（ＳＡＥ），６０Ｗ（ＥＣＥ） |
90981-13046-79 |
US $30.40 |
||
|
81125
|
81125
81125-75080 Cord, HeadlampHEADLAMP [07.2009 - 01.2013] ANF10 |
81125-75080 |
US $34.36 |
||
|
81125
|
81125
81125-75161 Cord, Headlamp[01.2013 -] ANF10 |
81125-75161 |
US $31.16 |
||
|
81129A
|
81129A
81129-50381 Reflector, Headlamp, RhHEADLAMP SWIVEL, RH [07.2009 - 01.2013] ANF10 |
81129-50381 |
US $168.90 |
||
|
81134
|
81134
90075-68007 Gasket, Headlamp[07.2009 - 01.2013] ANF10 |
90075-68007 |
from US $8 |
||
|
81135
|
81135
81145-75081 Unit Assy, Headlamp, RhHEADLAMP, RH [07.2009 - 01.2013] ANF10 |
81145-75081 |
US $1,727.20 |
||
|
81135
|
81135
81145-75161 Unit Assy, Headlamp, Rh[01.2013 - 03.2015] ANF10 |
81145-75161 |
US $1,645.28 |
||
| replacement | |||||
|
81135
|
81135
81145-75162 Unit Assy, Headlamp, Rh[01.2013 - 03.2015] ANF10 |
81145-75162 |
US $1,972 |
||
|
81135
|
81135
81145-75162 Unit Assy, Headlamp, Rh[03.2015 -] ANF10 |
81145-75162 |
US $1,972 |
||
|
81135C
|
81135C
81135-75080 Cover, Headlamp Back, No.1HEADLAMP BACK, NO.1 [07.2009 - 01.2013] ANF10 |
81135-75080 |
US $9.04 |
||
|
81136D
|
81136D
81136-47380 Cover, Headlamp[01.2013 -] ANF10 |
81136-47380 |
US $18.27 |
||
|
81150
|
81150
81150-75081 Headlamp Assy, LhLH [07.2009 - 01.2013] ANF10 |
81150-75081 |
US $2,009.28 |
||
|
81150
|
81150
81150-75161 Headlamp Assy, Lh[01.2013 - 02.2015] ANF10 |
81150-75161 |
US $2,052.96 |
||
| replacement | |||||
|
81150
|
81150
81150-75162 Headlamp Assy, Lh[01.2013 - 02.2015] ANF10 |
81150-75162 |
US $1,863.68 |
||
|
81150
|
81150
81150-75162 Headlamp Assy, Lh[03.2015 -] ANF10 |
81150-75162 |
US $1,863.68 |
||
|
81169
|
81169
81169-50381 Reflector, Headlamp, LhHEADLAMP SWIVEL, LH [07.2009 - 01.2013] ANF10 |
81169-50381 |
US $168.90 |
||
|
81175
|
81175
81185-75081 Unit Assy, Headlamp, LhHEADLAMP, LH [07.2009 - 01.2013] ANF10 |
81185-75081 |
US $1,727.20 |
||
|
81175
|
81175
81185-75161 Unit Assy, Headlamp, Lh[01.2013 - 03.2015] ANF10 |
81185-75161 |
US $1,645.28 |
||
| replacement | |||||
|
81175
|
81175
81185-75162 Unit Assy, Headlamp, Lh[01.2013 - 03.2015] ANF10 |
81185-75162 |
US $1,972 |
||
|
81175
|
81175
81185-75162 Unit Assy, Headlamp, Lh[03.2015 -] ANF10 |
81185-75162 |
US $1,972 |
||
|
81193A
|
81193A
81193-75020 Protector, Headlamp, RhHEADLAMP, RH [01.2013 -] ANF10 |
81193-75020 |
US $8.74 |
||
|
81194A
|
81194A
81194-75020 Protector, Headlamp, LhHEADLAMP, LH [01.2013 -] ANF10 |
81194-75020 |
US $8.74 |
||
|
81510C
|
81510C
90981-15021-79 Bulb (For Front Turn Signal Lamp)[07.2009 - 01.2013] ANF10 １２Ｖ ２１Ｗ，アンバー |
90981-15021-79 |
US $4.80 |
||
| replacement | |||||
|
81510C
|
81510C
90981-15021 Bulb (For Front Turn Signal Lamp)[07.2009 - 01.2013] ANF10 １２Ｖ ２１Ｗ，アンバー |
90981-15021 |
from US $3.51 |
||
|
85661
|
85661
85661-28011 Motor, Headlamp Leveling, RhHEADLAMP LEVELING, RH [07.2009 - 01.2013] ANF10 |
85661-28011 |
from US $164.24 |
||
|
85662
|
85662
85691-28011 Motor, Headlamp Leveling, LhHEADLAMP LEVELING, LH [07.2009 - 01.2013] ANF10 |
85691-28011 |
from US $164.24 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[07.2009 - 01.2013] ANF10 |
90075-99120 |
from US $2.71 |
||
|
85967
|
85967
85967-30070 Computer, Light Control[01.2013 -] ANF10 |
85967-30070 |
from US $126.44 |
||
|
9007502051
|
9007502051
90075-02051 Screw, Headlamp |
90075-02051 |
US $0.96 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
from US $0.64 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
US $1.12 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.64 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.80 |
||
