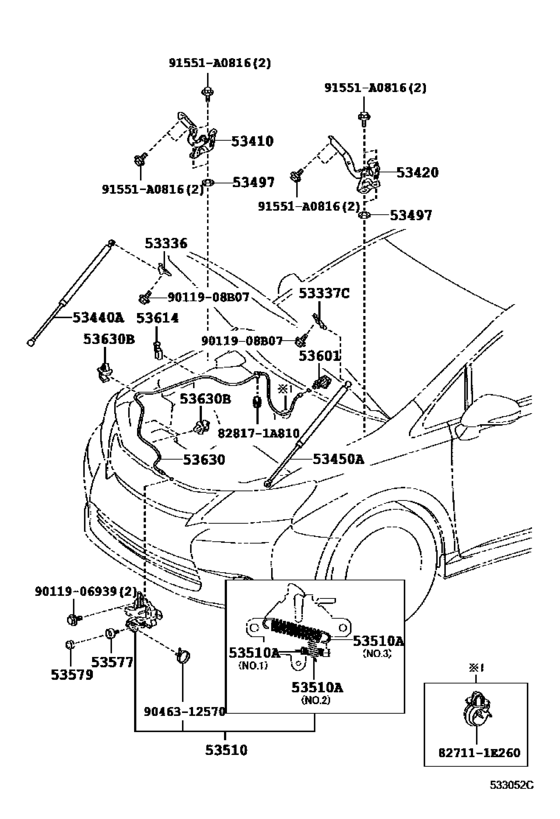

Hood Lock & Hinge ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53336
|
53336
53336-75020 Bracket, Hood Stay, RhHOOD STAY, RH [07.2009 - 01.2013] ANF10 |
53336-75020 |
US $3.93 |
||
|
53337C
|
53337C
53337-75020 Bracket, Hood Stay, LhHOOD STAY, LH [07.2009 - 01.2013] ANF10 |
53337-75020 |
US $3.93 |
||
|
53410
|
53410
53410-75020 Hinge Assy, Hood, RhHOOD, RH [07.2009 - 01.2013] ANF10 |
53410-75020 |
US $31.77 |
||
|
53420
|
53420
53420-75020 Hinge Assy, Hood, LhHOOD, LH [07.2009 - 01.2013] ANF10 |
53420-75020 |
US $34.20 |
||
|
53440A
|
53440A
53440-75010 Support Assy, Hood, RhHOOD, RH [07.2009 - 01.2013] ANF10 |
53440-75010 |
US $101.92 |
||
|
53440A
|
53440A
53440-75011 Support Assy, Hood, Rh[12.2016 -] ANF10 |
53440-75011 |
US $91.73 |
||
|
53450A
|
53450A
53450-75010 Support Assy, Hood, LhHOOD, LH [07.2009 - 01.2013] ANF10 |
53450-75010 |
US $101.92 |
||
|
53450A
|
53450A
53450-75011 Support Assy, Hood, Lh[12.2016 -] ANF10 |
53450-75011 |
US $91.73 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[07.2009 - 01.2013] ANF10 厚さ＝２．０ |
53497-20070 |
US $2.24 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[07.2009 - 01.2013] ANF10 厚さ＝０．５ |
53497-42010 |
US $1.60 |
||
|
53510
|
53510
53510-75020 Lock Assy, HoodHOOD [07.2009 - 01.2013] ANF10 |
53510-75020 |
US $52.27 |
||
|
53510
|
53510
53510-75050 Lock Assy, Hood[01.2013 -] ANF10 |
53510-75050 |
US $39.46 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[07.2009 - 01.2013] ANF10 線径＝０．９，コイル巻数＝２１,ＮＯ．１ |
90506-09055 |
from US $1.44 |
||
|
53510A
|
53510A
90506-12063 Spring, Tension(For Hood Lock)[07.2009 - 01.2013] ANF10 線径＝１．２，コイル巻数＝８．５,ＮＯ．２ |
90506-12063 |
US $1.44 |
||
|
53510A
|
53510A
90506-16077 Spring, Tension(For Hood Lock)[07.2009 - 01.2013] ANF10 線径＝１．６，コイル巻数＝１２,ＮＯ．３ |
90506-16077 |
US $1.92 |
||
|
53577
|
53577
53577-33010 Bolt, Hood Lock[07.2009 - 01.2013] ANF10 |
53577-33010 |
US $3.68 |
||
|
53579
|
53579
53579-50010 Cap, Hood Lock Nut[07.2009 - 01.2013] ANF10 |
53579-50010 |
from US $1.21 |
||
|
53601
|
53601
53601-52010-A4 Lever Sub-Assy, Hood Lock ControlHOOD LOCK CONTROL [07.2009 - 01.2013] ANF10 IVORY,TRIM05,07 |
53601-52010-A4 |
from US $18.93 |
||
|
53601
|
53601
53601-52010-A5 Lever Sub-Assy, Hood Lock ControlHOOD LOCK CONTROL [07.2009 - 01.2013] ANF10 WATER WHITE,TRIM06 |
53601-52010-A5 |
US $20.82 |
||
|
53601
|
53601
53601-52010-A6 Lever Sub-Assy, Hood Lock Control[01.2013 -] ANF10 ECRU,TRIM06 |
53601-52010-A6 |
US $18.93 |
||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[07.2009 - 01.2013] ANF10 BLACK,TRIM2# |
53601-52010-C0 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[07.2009 - 01.2013] ANF10 BLACK,TRIM2# |
53601-52010-C1 |
from US $21.43 |
||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[12.2016 -] ANF10 BLACK,TRIM2# |
53601-52010-C1 |
from US $21.43 |
||
|
53614
|
53614
53614-47020 Clamp, Hood Lock Control CableHOOD LOCK CONTROL CABLE [07.2009 - 01.2013] ANF10 |
53614-47020 |
US $3.20 |
||
|
53630
|
53630
53630-75020 Cable Assy, Hood Lock ControlHOOD LOCK CONTROL [07.2009 - 01.2013] ANF10 |
53630-75020 |
US $13.25 |
||
|
53630B
|
53630B
90469-06005 Clamp(For Hood Lock Control Cable)[07.2009 - 01.2013] ANF10 |
90469-06005 |
from US $1.28 |
||
|
91551A0816
|
91551A0816
91551-A0816 Bolt |
91551-A0816 |
US $1.28 |
||
|
827111E260
|
827111E260
82711-1E260 Clamp (For Fuel Lid Lock Control Cable) |
82711-1E260 |
from US $1.01 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9011908B07
|
9011908B07
90119-08B07 New Genuine Part |
90119-08B07 |
US $1.28 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
US $0.96 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
