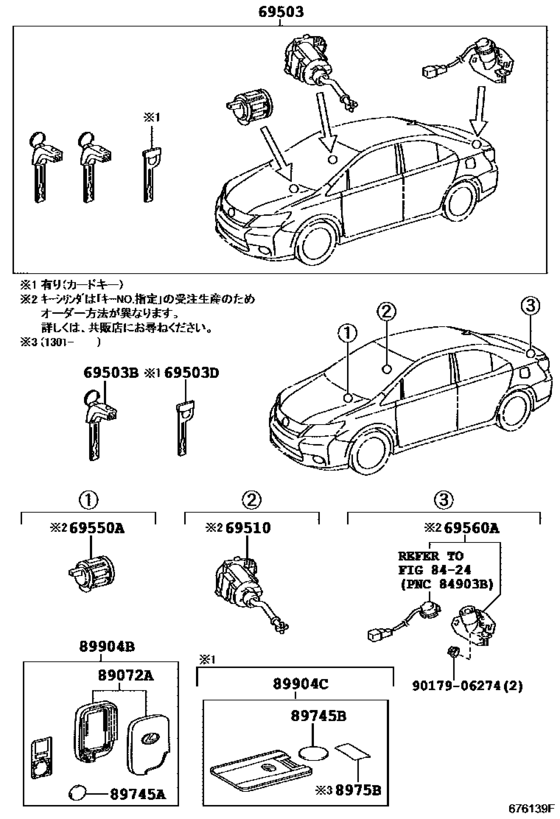

Lock Cylinder Set ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8975B
|
8975B
8975B-50020 Cover, Transmitter Housing[01.2013 -] ANF10 |
8975B-50020 |
US $1.93 |
||
|
69503
|
69503
69005-75020
Cylinder Set, Lock
[07.2009 - 09.2009] ANF10 電子キー（２）＆スマートカードキー（１） |
69005-75020 |
— | ||
| replacement | |||||
|
69503
|
69503
69005-75021 Cylinder Set, LockLOCK [07.2009 - 09.2009] ANF10 電子キー（２）＆スマートカードキー（１） |
69005-75021 |
US $211.12 |
||
|
69503
|
69503
69005-75021 Cylinder Set, LockLOCK [10.2009 - 09.2010] ANF10 電子キー（２）＆スマートカードキー（１） |
69005-75021 |
US $211.12 |
||
|
69503
|
69503
69005-75100 Cylinder Set, LockLOCK [07.2009 - 09.2010] ANF10 |
69005-75100 |
US $238.78 |
||
|
69503B
|
69503B
69515-50240 Key, Cut[07.2009 - 01.2013] ANF10 マスターキー |
69515-50240 |
US $115.44 |
||
|
69503D
|
69503D
69515-30330 Key, Cut(Card Key)[10.2009 - 09.2010] ANF10 マスターキー,電子キー（２）＆スマートカードキー（１） |
69515-30330 |
US $105.08 |
||
|
69503D
|
69503D
69515-50220 Key, Cut(Card Key)[07.2009 - 09.2009] ANF10 マスターキー,電子キー（２）＆スマートカードキー（１） |
69515-50220 |
US $115.44 |
||
|
69510
|
69510
69510-75010 Cylinder Assy, Front Door Lock, RhFRONT DOOR LOCK, RH [07.2009 - 01.2013] ANF10 |
69510-75010 |
US $139.78 |
||
|
69550A
|
69550A
69550-50040 Cylinder Assy, Glove Compartment Door Lock[07.2009 - 01.2013] ANF10 |
69550-50040 |
US $133.95 |
||
|
69560A
|
69560A
69560-53050 Cylinder Assy, Luggage Compartment Door Lock[07.2009 - 01.2013] ANF10 |
69560-53050 |
US $100.46 |
||
|
89072A
|
89072A
89072-50771 Housing Set, Door Control Transmitter[07.2009 - 01.2013] ANF10 |
89072-50771 |
US $53.58 |
||
|
89745A
|
89745A
89745-52020 Battery, Transmitter[07.2009 - 01.2013] ANF10 |
89745-52020 |
from US $7.04 |
||
|
89745B
|
89745B
89745-50030 Battery, Transmitter(Card Key)[07.2009 - 09.2010] ANF10 電子キー（２）＆スマートカードキー（１） |
89745-50030 |
from US $10.71 |
||
|
89904B
|
89904B
89904-75040 Transmitter Sub-Assy, Electrical KeyELECTRICAL KEY [07.2009 - 01.2013] ANF10 |
89904-75040 |
US $366.80 |
||
|
89904C
|
89904C
89994-48151 Transmitter Sub-Assy, Electrical Key(Card Key)ELECTRICAL KEY(CARD KEY) [07.2009 - 09.2010] ANF10 電子キー（２）＆スマートカードキー（１） |
89994-48151 |
US $449.40 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
