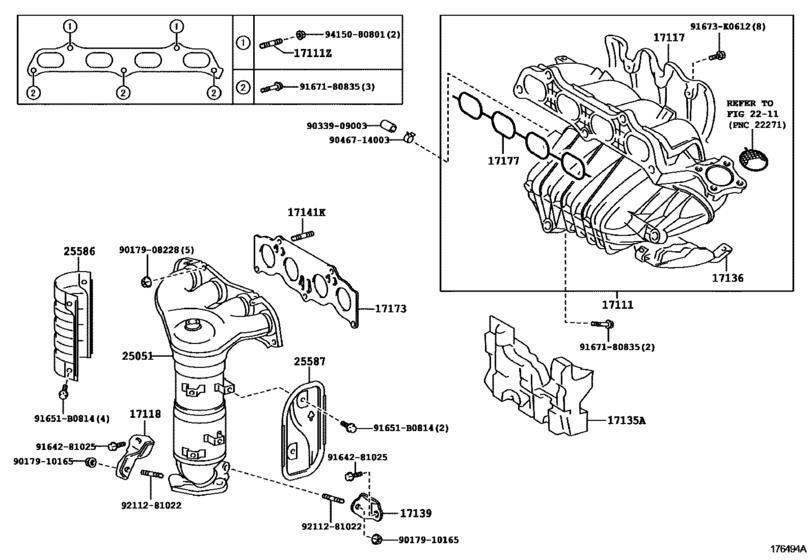

Manifold ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-28140 Manifold, Intake[07.2009 - 12.2011] 2AZFXE..ANF10 |
17120-28140 |
US $511.06 |
||
| replacement | |||||
|
17111
|
17111
17120-28141 Manifold, Intake[07.2009 - 12.2011] 2AZFXE..ANF10 |
17120-28141 |
US $385.84 |
||
|
17111
|
17111
17120-28141 Manifold, Intake[01.2012 - 01.2013] 2AZFXE..ANF10 |
17120-28141 |
US $385.84 |
||
|
17111Z
|
17111Z
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90126-08026 |
from US $2.46 |
||
|
17117
|
17117
17117-28040 Insulator, Intake Pipe[07.2009 - 01.2013] 2AZFXE..ANF10 |
17117-28040 |
US $47.61 |
||
|
17118
|
17118
17118-28020 Stay, Manifold[07.2009 - 01.2013] 2AZFXE..ANF10 |
17118-28020 |
US $16.07 |
||
|
17135A
|
17135A
17135-28011 Insulator, Intake Manifold, No.1[07.2009 - 01.2013] 2AZFXE..ANF10 |
17135-28011 |
US $57.80 |
||
|
17136
|
17136
17136-28020 Insulator, Intake Manifold, No.2[07.2009 - 01.2013] 2AZFXE..ANF10 |
17136-28020 |
US $92.60 |
||
|
17139
|
17139
17139-28050 Stay, Manifold, No.2[07.2009 - 01.2013] 2AZFXE..ANF10 |
17139-28050 |
US $13.80 |
||
|
17141K
|
17141K
90126-08037 Bolt, Stud(For Oil Strainer)[07.2009 - 01.2013] 2AZFXE..ANF10 |
90126-08037 |
from US $3.90 |
||
|
17173
|
17173
17173-28010 Gasket, Exhaust Manifold To Head[07.2009 - 01.2013] 2AZFXE..ANF10 |
17173-28010 |
from US $20.24 |
||
|
17177
|
17177
17177-28010
Gasket, Intake Manifold To Head, No.1
[07.2009 - 12.2011] 2AZFXE..ANF10 |
17177-28010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-28031 Gasket, Intake Manifold To Head, No.1[07.2009 - 12.2011] 2AZFXE..ANF10 |
17177-28031 |
from US $6.24 |
||
|
17177
|
17177
17177-28031 Gasket, Intake Manifold To Head, No.1[01.2012 - 01.2013] 2AZFXE..ANF10 |
17177-28031 |
from US $6.24 |
||
|
25051
|
25051
25051-28320 Converter Sub-Assy, Exhaust Manifold[07.2009 - 01.2013] 2AZFXE..ANF10 |
25051-28320 |
US $1,716.16 |
||
|
25586
|
25586
25586-28110 Insulator, Manifold Converter, No.1[07.2009 - 01.2013] 2AZFXE..ANF10 |
25586-28110 |
US $45.49 |
||
|
25587
|
25587
25587-28030 Insulator, Manifold Converter, No.2MANIFOLD CONVERTER, NO.2 [07.2009 - 01.2013] 2AZFXE..ANF10 |
25587-28030 |
US $20.53 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
| replacement | |||||
|
91651B0814
|
91651B0814
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
91673K0612
|
91673K0612
91673-K0612 New Genuine Part |
91673-K0612 |
US $0.73 |
||
|
9017908228
|
9017908228
90179-08228 NUT |
90179-08228 |
from US $0.88 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $1.03 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
from US $3.36 |
||
|
9046714003
|
9046714003
90467-14003 Clip Or Clamp(For Ventilation Hose) |
90467-14003 |
US $2.08 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $1.01 |
||
|
9167180835
|
9167180835
91671-80835 Bolt, Compressor, No.1 |
91671-80835 |
US $1.60 |
||
|
9211281022
|
9211281022
92112-81022 BOLT STUD |
92112-81022 |
US $1.28 |
||
|
9415080801
|
9415080801
94150-80801 Nut |
94150-80801 |
US $1.28 |
||
