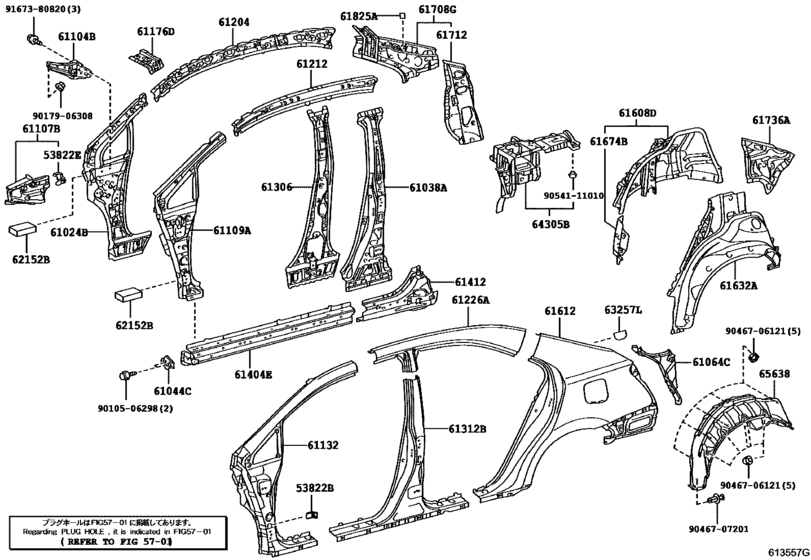

Side Member ([07.2009 - ] LH (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53822B
|
53822B
53821-75020 Bracket, Front Fender, Rear RhFRONT FENDER, REAR RH [07.2009 - 01.2013] ANF10 |
53821-75020 |
from US $4.32 |
||
|
53822E
|
53822E
53822-75010 Bracket, Front Fender, Rear No.2 LhFRONT FENDER, REAR NO.2 LH [07.2009 - 01.2013] ANF10 |
53822-75010 |
US $4.08 |
||
|
61024B
|
61024B
61024-75010 Pillar Sub-Assy, Front Body, Inner LhFRONT BODY, INNER LH [07.2009 - 01.2010] ANF10 |
61024-75010 |
US $276.64 |
||
| replacements | |||||
|
61024B
|
61024B
61024-75011 Pillar Sub-Assy, Front Body, Inner LhFRONT BODY, INNER LH [07.2009 - 01.2010] ANF10 |
61024-75011 |
US $276.64 |
||
|
61024B
|
61024B
63240-75011 Hose Assy, Sliding Roof Drain, LhSLIDING ROOF DRAIN, LH [07.2009 - 01.2010] ANF10 |
63240-75011 |
US $17.04 |
||
|
61024B
|
61024B
61024-75011 Pillar Sub-Assy, Front Body, Inner LhFRONT BODY, INNER LH [01.2010 - 01.2013] ANF10 |
61024-75011 |
US $276.64 |
||
|
61024B
|
61024B
61024-75012 Pillar Sub-Assy, Front Body, Inner Lh[01.2013 -] ANF10 |
61024-75012 |
US $208.21 |
||
|
61038A
|
61038A
61038-75901 Reinforcement Sub-Assy, Center Body Pillar, LhCENTER BODY PILLAR, LH [07.2009 - 01.2013] ANF10 |
61038-75901 |
US $198.02 |
||
|
61044C
|
61044C
61044-75020 Extension Sub-Assy, Front Body Pillar, Outer LhFRONT BODY PILLAR, OUTER LH [07.2009 - 01.2013] ANF10 |
61044-75020 |
US $19.07 |
||
|
61064C
|
61064C
61064-75010 Trough Sub-Assy, Luggage Door Opening, Front LhLUGGAGE DOOR OPENING, FRONT LH [07.2009 - 01.2013] ANF10 |
61064-75010 |
US $64.60 |
||
|
61104B
|
61104B
61104-75010 Reinforcement Sub-Assy, Cowl Side, LhCOWL SIDE, LH [07.2009 - 01.2013] ANF10 |
61104-75010 |
US $37.27 |
||
|
61107B
|
61107B
61107-75010 Reinforce Sub-Assy, Front Body Pillar, Upper LhFRONT BODY PILLAR, UPPER LH [07.2009 - 01.2013] ANF10 |
61107-75010 |
US $60.13 |
||
|
61109A
|
61109A
61109-75901 Reinforce Sub-Assy, Front Body Pillar, Lower LhFRONT BODY PILLAR, LOWER LH [07.2009 - 01.2013] ANF10 |
61109-75901 |
US $168.90 |
||
|
61132
|
61132
61132-75010 Pillar, Front Body, Upper Outer LhFRONT BODY, UPPER OUTER LH [07.2009 - 01.2013] ANF10 |
61132-75010 |
US $193.65 |
||
|
61176D
|
61176D
61176-75010 Reinforce, Front Body Pillar, Upper Out No.2 LhFRONT BODY PILLAR, UPPER OUT NO.2 LH [07.2009 - 01.2013] ANF10 |
61176-75010 |
US $19.07 |
||
|
61204
|
61204
61204-75901 Rail Sub-Assy, Roof Side, Inner LhROOF SIDE, INNER LH [07.2009 - 01.2013] ANF10 |
61204-75901 |
US $85.90 |
||
|
61212
|
61212
61202-75010 Rail, Roof Side, Outer LhROOF SIDE, OUTER LH [07.2009 - 01.2013] ANF10 |
61202-75010 |
US $100.46 |
||
|
61226A
|
61226A
61226-75010 Rail, Roof Side Outer Upper No.1, LhROOF SIDE OUTER UPPER NO.1, LH [07.2009 - 01.2013] ANF10 |
61226-75010 |
US $97.55 |
||
|
61306
|
61306
61306-75010 Reinforce Sub-Assy, Center Body Pillar, Lower LhCENTER BODY PILLAR, LOWER LH [07.2009 - 01.2013] ANF10 |
61306-75010 |
US $96.10 |
||
|
61312B
|
61312B
61312-75010 Pillar, Center Body, Outer LhCENTER BODY, OUTER LH [07.2009 - 01.2013] ANF10 |
61312-75010 |
US $174.72 |
||
|
61404E
|
61404E
61404-75901 Reinforce Sub-Assy, Rocker, Outer LhROCKER, OUTER LH [07.2009 - 01.2013] ANF10 |
61404-75901 |
US $180.54 |
||
|
61412
|
61412
61408-75010 Panel, Rocker, Outer LhROCKER, OUTER LH [07.2009 - 01.2013] ANF10 |
61408-75010 |
US $123.76 |
||
|
61608D
|
61608D
61634-12909 Panel, Quarter Wheel House, Inner LhQUARTER WHEEL HOUSE, INNER LH [07.2009 - 01.2013] ANF10 |
61634-12909 |
US $202.38 |
||
|
61612
|
61612
61612-75010 Panel, Quarter, LhQUARTER, LH [07.2009 - 01.2013] ANF10 |
61612-75010 |
US $914.20 |
||
|
61632A
|
61632A
61632-75010 Panel, Quarter Wheel House, Outer LhQUARTER WHEEL HOUSE, OUTER LH [07.2009 - 01.2013] ANF10 |
61632-75010 |
US $110.66 |
||
|
61674B
|
61674B
61604-75010 Panel Sub-Assy, Quarter Wheel House, LhQUARTER WHEEL HOUSE, INNER LH [07.2009 - 01.2013] ANF10 |
61604-75010 |
US $39.02 |
||
|
61708G
|
61708G
61708-75010 Panel Sub-Assy, Roof Side, Inner Front LhROOF SIDE, INNER FRONT LH [07.2009 - 01.2013] ANF10 |
61708-75010 |
US $103.38 |
||
|
61712
|
61712
61712-75010 Panel, Roof Side, Outer LhROOF SIDE, OUTER LH [07.2009 - 01.2013] ANF10 |
61712-75010 |
US $47.32 |
||
|
61736A
|
61736A
61736-75010 Panel, Roof Side, Inner Rear LhROOF SIDE, INNER REAR LH [07.2009 - 01.2013] ANF10 |
61736-75010 |
US $35.53 |
||
|
61825A
|
61825A
61825-75010 Plate, Noise Control, No.2NOISE CONTROL, NO.2 [07.2009 - 01.2013] ANF10 |
61825-75010 |
US $3.79 |
||
|
62152B
|
62152B
62152-12050 Pad, Cowl Side Silencer, No.2[07.2009 - 01.2013] ANF10 |
62152-12050 |
US $1.60 |
||
|
63257L
|
63257L
63257-75010 Seal, Sliding RoofSLIDING ROOF [07.2009 - 01.2013] ANF10 |
63257-75010 |
US $3.68 |
||
|
64305B
|
64305B
64305-75010 Reinforce Sub-Assy, Package Tray Bracket, LhPACKAGE TRAY BRACKET, LH [07.2009 - 01.2013] ANF10 |
64305-75010 |
US $135.41 |
||
|
65638
|
65638
65638-75010 Liner, Rear Wheel House, LhREAR WHEEL HOUSE, LH [07.2009 - 01.2013] ANF10 |
65638-75010 |
US $52.88 |
||
|
65638
|
65638
65638-75020 Liner, Rear Wheel House, LhREAR WHEEL HOUSE, LH [07.2009 - 01.2013] ANF10 寒冷地仕様 |
65638-75020 |
US $58.97 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.64 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9046706121
|
9046706121
90467-06121 Clip, Rear Bumper Side |
90467-06121 |
from US $3.20 |
||
|
9046707201
|
9046707201
90467-07201 Clamp(For Cool Air Intake) |
90467-07201 |
from US $1.13 |
||
|
9054111010
|
9054111010
90541-11010 Cushion, Luggage Compartment Door |
90541-11010 |
from US $0.96 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
