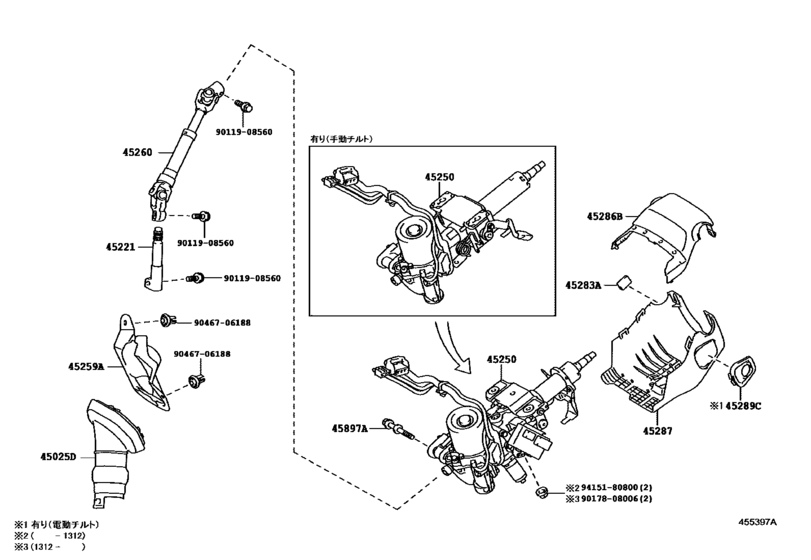

Steering Column & Shaft ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-12290 Cover Sub-Assy, Steering Column Hole, No.1[07.2009 - 01.2013] ANF10 |
45025-12290 |
US $54.02 |
||
|
45221
|
45221
45221-75010 Shaft, Steering IntermediateSTEERING INTERMEDIATE [07.2009 - 01.2013] ANF10 |
45221-75010 |
US $149.76 |
||
|
45250
|
45250
45250-75070 Column Assy, SteeringSTEERING [07.2009 - 09.2011] ANF10 |
45250-75070 |
US $1,166.26 |
||
| replacement | |||||
|
45250
|
45250
45250-75071 Column Assy, Steering[07.2009 - 09.2011] ANF10 |
45250-75071 |
US $971.15 |
||
|
45250
|
45250
45250-75071 Column Assy, Steering[10.2011 - 01.2013] ANF10 |
45250-75071 |
US $971.15 |
||
|
45250
|
45250
45250-75100 Column Assy, SteeringSTEERING [07.2009 - 09.2011] ANF10 “ｖｅｒｓｉｏｎ Ｉ”; ANF10 “ｖｅｒｓｉｏｎ Ｌ” |
45250-75100 |
US $1,805.44 |
||
| replacement | |||||
|
45250
|
45250
45250-75101 Column Assy, Steering[07.2009 - 09.2011] ANF10 “ｖｅｒｓｉｏｎ Ｉ”; ANF10 “ｖｅｒｓｉｏｎ Ｌ” |
45250-75101 |
US $2,062.16 |
||
|
45250
|
45250
45250-75101 Column Assy, Steering[10.2011 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”; ANF10 “ｖｅｒｓｉｏｎ Ｌ” |
45250-75101 |
US $2,062.16 |
||
|
45250
|
45250
45250-75150 Column Assy, Steering[08.2013 -] ANF10 |
45250-75150 |
US $882.34 |
||
|
45250
|
45250
45250-75160 Column Assy, Steering[08.2013 -] ANF10 “ｖｅｒｓｉｏｎ Ｉ”; ANF10 “ｖｅｒｓｉｏｎ Ｌ” |
45250-75160 |
US $1,356.99 |
||
|
45259A
|
45259A
45259-12060 Sheet, Column Hole Cover Silencer[07.2009 - 01.2013] ANF10 |
45259-12060 |
US $13.69 |
||
|
45260
|
45260
45260-75010
Shaft Assy, Steering Intermediate, No.2
[07.2009 - 03.2012] ANF10 |
45260-75010 |
— | ||
| replacement | |||||
|
45260
|
45260
45260-75030 Shaft Assy, Steering Intermediate, No.2[07.2009 - 03.2012] ANF10 |
45260-75030 |
US $200.16 |
||
|
45260
|
45260
45260-75030 Shaft Assy, Steering Intermediate, No.2[04.2012 - 01.2013] ANF10 |
45260-75030 |
US $200.16 |
||
|
45283A
|
45283A
45283-22010 Plate, Safety Caution[07.2009 - 01.2013] ANF10 |
45283-22010 |
US $2.40 |
||
|
45286B
|
45286B
45286-75010-C0 Cover, Steering Column, UprSTEERING COLUMN, UPR [07.2009 - 01.2013] ANF10 BLACK,TRIM2# |
45286-75010-C0 |
US $18.20 |
||
|
45286B
|
45286B
45286-75010-E0 Cover, Steering Column, UprSTEERING COLUMN, UPR [07.2009 - 01.2013] ANF10 DK. BROWN,TRIM0# |
45286-75010-E0 |
US $18.20 |
||
|
45286B
|
45286B
45286-75020-C0 Cover, Steering Column, UprSTEERING COLUMN, UPR [07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”,BLACK,TRIM06,2# |
45286-75020-C0 |
US $18.20 |
||
|
45286B
|
45286B
45286-75020-E0 Cover, Steering Column, UprSTEERING COLUMN, UPR [07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”,DK. BROWN,TRIM05,06,07 |
45286-75020-E0 |
US $18.20 |
||
|
45286B
|
45286B
45286-75030-C0 Cover, Steering Column, UprSTEERING COLUMN, UPR [07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｌ”＆プリクラッシュシステム−有り（＊ＤＭＯ＆＊ＰＢ＆＊ＲＰＣＳ ）,BLACK,TRIM06,2# |
45286-75030-C0 |
US $18.20 |
||
|
45286B
|
45286B
45286-75030-E0 Cover, Steering Column, UprSTEERING COLUMN, UPR [07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｌ”＆プリクラッシュシステム−有り（＊ＤＭＯ＆＊ＰＢ＆＊ＲＰＣＳ ）,DK. BROWN,TRIM05,06,07 |
45286-75030-E0 |
US $18.20 |
||
|
45287
|
45287
45287-75010-C0 Cover, Steering Column, LwrSTEERING COLUMN, LWR [07.2009 - 01.2013] ANF10 BLACK,TRIM2# |
45287-75010-C0 |
US $33.49 |
||
|
45287
|
45287
45287-75010-E0 Cover, Steering Column, LwrSTEERING COLUMN, LWR [07.2009 - 01.2013] ANF10 DK. BROWN,TRIM0# |
45287-75010-E0 |
US $33.49 |
||
|
45287
|
45287
45287-75020-C0 Cover, Steering Column, LwrSTEERING COLUMN, LWR [07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”,BLACK,TRIM06,2#; ANF10 “ｖｅｒｓｉｏｎ Ｌ”＆プリクラッシュシステム−有り（＊ＤＭＯ＆＊ＰＢ＆＊ＲＰＣＳ ）,BLACK,TRIM06,2# |
45287-75020-C0 |
US $33.49 |
||
|
45287
|
45287
45287-75020-E0 Cover, Steering Column, LwrSTEERING COLUMN, LWR [07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”,DK. BROWN,TRIM05,06,07; ANF10 “ｖｅｒｓｉｏｎ Ｌ”＆プリクラッシュシステム−有り（＊ＤＭＯ＆＊ＰＢ＆＊ＲＰＣＳ ）,DK. BROWN,TRIM05,06,07 |
45287-75020-E0 |
US $33.49 |
||
|
45289C
|
45289C
45289-75010-C0 Cover, Steering Column, Lwr No.2STEERING COLUMN, LWR NO.2 [07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”,BLACK,TRIM06,2#; ANF10 “ｖｅｒｓｉｏｎ Ｌ”＆プリクラッシュシステム−有り（＊ＤＭＯ＆＊ＰＢ＆＊ＲＰＣＳ ）,BLACK,TRIM06,2# |
45289-75010-C0 |
US $4.08 |
||
|
45289C
|
45289C
45289-75010-E0 Cover, Steering Column, Lwr No.2STEERING COLUMN, LWR NO.2 [07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”,DK. BROWN,TRIM05,06,07; ANF10 “ｖｅｒｓｉｏｎ Ｌ”＆プリクラッシュシステム−有り（＊ＤＭＯ＆＊ＰＢ＆＊ＲＰＣＳ ）,DK. BROWN,TRIM05,06,07 |
45289-75010-E0 |
US $4.08 |
||
|
45897A
|
45897A
45897-20020 Bolt, Tilt Steering Pawl SetTILT STEERING PAWL SET [07.2009 - 09.2012] ANF10 |
45897-20020 |
US $7.86 |
||
|
45897A
|
45897A
90119-10981 Bolt, Tilt Steering Pawl Set[10.2012 - 01.2013] ANF10 |
90119-10981 |
from US $1.79 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9017808006
|
9017808006
90178-08006 NUT FLANGE |
90178-08006 |
US $1.60 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
from US $2.03 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
