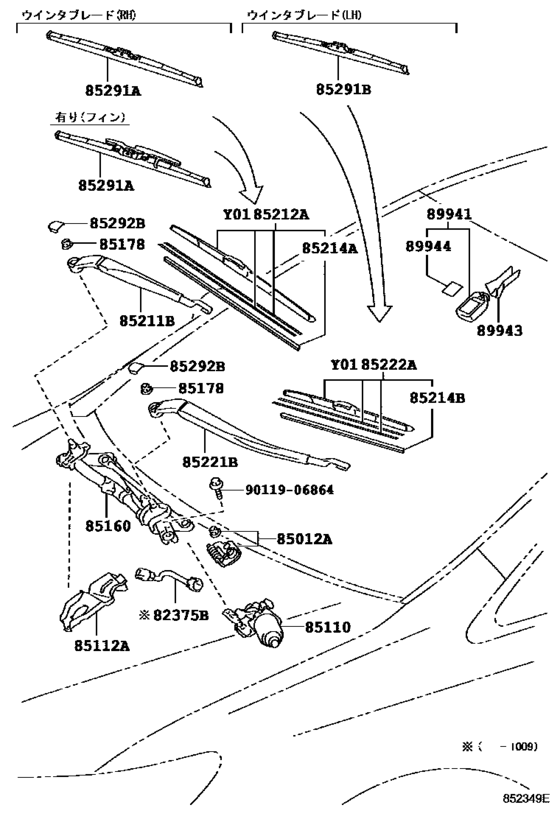

Windshield Wiper ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2018
- Sales region
- Japan
- Frame
- ANF10
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82375B
|
82375B
82375-75010 Wire, Wiper MotorWIPER MOTOR [07.2009 - 09.2010] ANF10 |
82375-75010 |
US $16.16 |
||
|
85012A
|
85012A
85012-50010 Crank Sub-Assy, Front Wiper[07.2009 - 01.2013] ANF10 |
85012-50010 |
US $31.14 |
||
|
85110
|
85110
85110-47100 Motor Assy, Windshield WiperWINDSHIELD WIPER [07.2009 - 11.2010] ANF10 |
85110-47100 |
US $351.40 |
||
|
85110
|
85110
85110-47110
Motor Assy, Windshield Wiper
[07.2009 - 11.2010] ANF10 寒冷地仕様 |
85110-47110 |
— | ||
| replacement | |||||
|
85110
|
85110
85110-47200 Motor Assy, Windshield WiperWINDSHIELD WIPER [07.2009 - 11.2010] ANF10 寒冷地仕様 |
85110-47200 |
US $354.20 |
||
|
85110
|
85110
85110-47190 Motor Assy, Windshield WiperWINDSHIELD WIPER [12.2010 - 01.2013] ANF10 |
85110-47190 |
US $351.40 |
||
|
85110
|
85110
85110-47200 Motor Assy, Windshield WiperWINDSHIELD WIPER [12.2010 - 01.2013] ANF10 寒冷地仕様 |
85110-47200 |
US $354.20 |
||
|
85112A
|
85112A
85112-75010
Cover, Windshield Wiper Shaft, No.1
[07.2009 - 01.2013] ANF10 |
85112-75010 |
— | ||
|
85160
|
85160
85150-75010 Link Assy, Windshield WiperWINDSHIELD WIPER [07.2009 - 09.2010] ANF10 |
85150-75010 |
US $120.85 |
||
|
85160
|
85160
85150-75011 Link Assy, Windshield Wiper[09.2010 - 01.2013] ANF10 |
85150-75011 |
US $109.56 |
||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[07.2009 - 07.2012] ANF10 |
90179-10223 |
from US $0.99 |
||
|
85178
|
85178
90182-10006 Nut (For Front Wiper Arm Setting)[07.2012 - 01.2013] ANF10 |
90182-10006 |
US $1.28 |
||
|
85211B
|
85211B
85211-75010 Arm, Front Wiper, RhFR WIPER, RH [07.2009 - 01.2013] ANF10 |
85211-75010 |
US $61.56 |
||
|
85212A
|
85212A
85212-68050-79 Blade, Fr Wiper, RhFR WIPER, RH [07.2009 -] ANF10 |
85212-68050-79 |
US $65.21 |
||
|
85214A
|
85214A
85214-68020 Rubber, Wiper, Rh[07.2009 - 01.2013] ANF10 |
85214-68020 |
US $9.83 |
||
| replacement | |||||
|
85214A
|
85214A
85214-52110 Rubber, Wiper, Rh[07.2009 - 01.2013] ANF10 |
85214-52110 |
from US $14.40 |
||
|
85214B
|
85214B
85214-28090 Rubber, Wiper, Lh[07.2009 - 01.2013] ANF10 |
85214-28090 |
from US $8.54 |
||
|
85221B
|
85221B
85221-75010 Arm, Front Wiper, LhFR WIPER, LH [07.2009 - 01.2013] ANF10 |
85221-75010 |
US $75.24 |
||
|
85222A
|
85222A
85222-28180-79 Blade, Fr Wiper, LhFR WIPER, LH [07.2009 -] ANF10 |
85222-28180-79 |
US $27.51 |
||
|
85291A
|
85291A
85291-12090-79 Blade, Front Wiper, Winter, RhFRONT WIPER, WINTER, RH [07.2009 -] ANF10 ウィンタブレード（ＤＯＰ） |
85291-12090-79 |
US $88.80 |
||
|
85291A
|
85291A
85291-68010-79 Blade, Front Wiper, Winter, RhFRONT WIPER, WINTER, RH [07.2009 -] ANF10 ウィンタブレード（ＤＯＰ）,有り（フィン） |
85291-68010-79 |
US $104.83 |
||
|
85291B
|
85291B
85291-44080-79 Blade, Front Wiper, Winter, LhFRONT WIPER, WINTER, LH [07.2009 -] ANF10 ウィンタブレード（ＤＯＰ） |
85291-44080-79 |
US $54.72 |
||
|
85292B
|
85292B
85292-13010 Cover, Windshield Wiper Arm[07.2009 - 01.2013] ANF10 |
85292-13010 |
from US $4 |
||
|
89941
|
89941
89941-42010 Sensor, Rain[07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”; ANF10 “ｖｅｒｓｉｏｎ Ｌ” |
89941-42010 |
US $198.72 |
||
|
89943
|
89943
89943-47010 Cover, Rain SensorRAIN SENSOR [07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”; ANF10 “ｖｅｒｓｉｏｎ Ｌ” |
89943-47010 |
US $23.56 |
||
|
89944
|
89944
89944-42010 Tape, Rain Sensor[07.2009 - 01.2013] ANF10 “ｖｅｒｓｉｏｎ Ｉ”; ANF10 “ｖｅｒｓｉｏｎ Ｌ” |
89944-42010 |
from US $13.26 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.28 |
||
