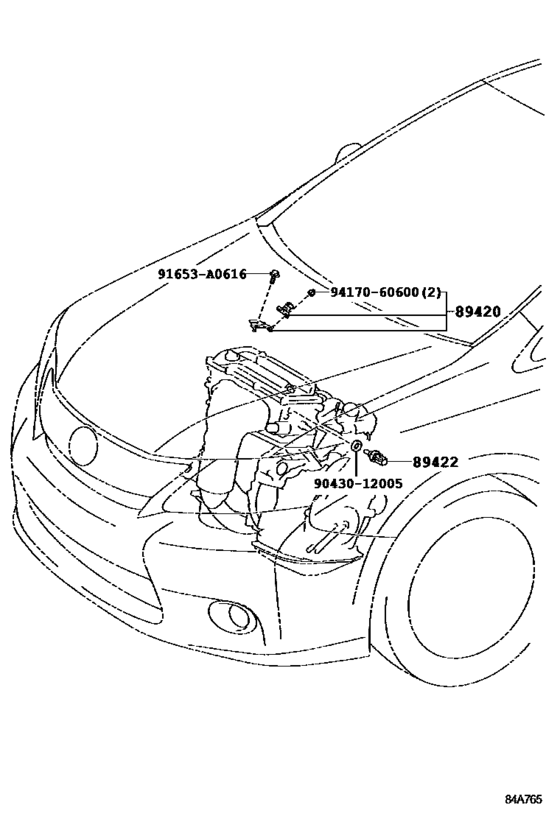

Electronic Fuel Injection System ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- ANF10
- grade
- V
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- To
- 01.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89420
|
89420
89420-75010
Sensor Assy, Vacuum
[07.2009 - 01.2012] ANF10 |
89420-75010 |
— | ||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[07.2009 - 01.2012] ANF10 |
89422-33030 |
from US $36.63 |
||
|
91653A0616
|
91653A0616
91653-A0616 BOLT WWASHER |
91653-A0616 |
US $1.44 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9417060600
|
9417060600
94170-60600 NUT CAP |
94170-60600 |
US $0.96 |
