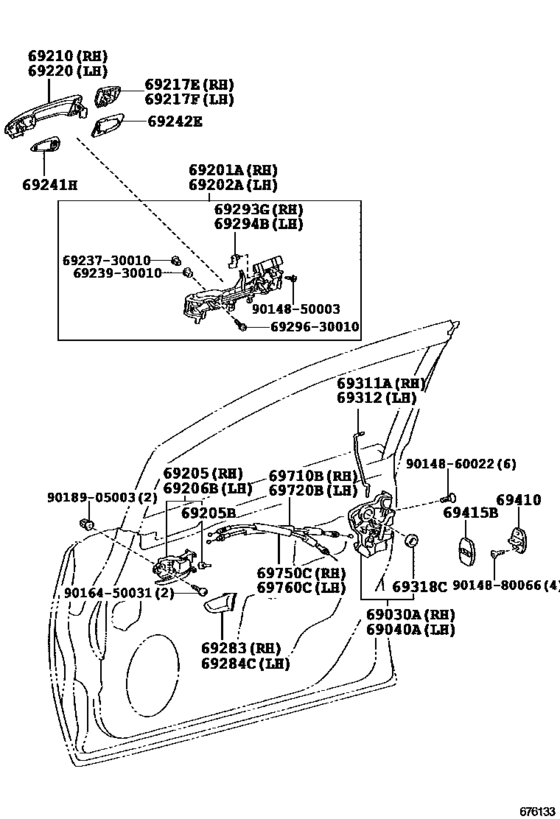

Front Door Lock & Handle ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- ANF10
- grade
- V
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- To
- 01.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-42230 Lock Assy, Front Door W/motor, Rh[07.2009 - 01.2012] ANF10 |
69030-42230 |
from US $150.27 |
||
|
69040A
|
69040A
69040-42250 Lock Assy, Front Door W/motor, Lh[07.2009 - 01.2012] ANF10 |
69040-42250 |
from US $180 |
||
|
69201A
|
69201A
69201-48011 Frame Sub-Assy, Front Door Outside Handle, RhFRONT DOOR OUTSIDE HANDLE, RH [07.2009 - 01.2012] ANF10 |
69201-48011 |
US $57.80 |
||
|
69202A
|
69202A
69202-48011 Frame Sub-Assy, Front Door Outside Handle, LhFRONT DOOR OUTSIDE HANDLE, LH [07.2009 - 01.2012] ANF10 |
69202-48011 |
US $57.80 |
||
|
69205
|
69205
69205-75010-A0 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
69205-75010-A0 |
US $25.77 |
||
|
69205
|
69205
69205-75010-A1 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
69205-75010-A1 |
US $28.39 |
||
|
69205
|
69205
69205-75010-C0 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
69205-75010-C0 |
US $32.07 |
||
|
69205B
|
69205B
90541-04014 Cushion, Console Box[07.2009 - 01.2012] ANF10 |
90541-04014 |
from US $1.60 |
||
|
69206B
|
69206B
69206-75010-A0 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
69206-75010-A0 |
US $25.77 |
||
|
69206B
|
69206B
69206-75010-A1 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
69206-75010-A1 |
US $28.39 |
||
|
69206B
|
69206B
69206-75010-C0 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
69206-75010-C0 |
US $32.03 |
||
|
69210
|
69210
69210-48040-A0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 01.2012] ANF10 WHITE PEARL CS.,077 |
69210-48040-A0 |
US $160.16 |
||
|
69210
|
69210
69210-48040-A1 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 01.2012] ANF10 QUARTZ WHITE C.S.,078 |
69210-48040-A1 |
US $160.16 |
||
|
69210
|
69210
69210-48040-B0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 10.2011] ANF10 DK.GRAY MC.,1G0 |
69210-48040-B0 |
US $145.60 |
||
|
69210
|
69210
69210-48040-B2 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 01.2012] ANF10 SILVER M.M.,1G1 |
69210-48040-B2 |
US $160.16 |
||
|
69210
|
69210
69210-48040-B3 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 01.2012] ANF10 MOONLIGHT OPAL CS.,1H0 |
69210-48040-B3 |
US $145.60 |
||
|
69210
|
69210
69210-48040-B4 Handle Assy, Front Door, Outside Rh[10.2011 - 01.2012] ANF10 MERCURY GRAY MC.,1H9 |
69210-48040-B4 |
US $145.60 |
||
|
69210
|
69210
69210-48040-C0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 01.2012] ANF10 BLACK,212 |
69210-48040-C0 |
US $145.60 |
||
|
69210
|
69210
69210-48040-C1 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 01.2012] ANF10 BLACK OPAL MC.,214 |
69210-48040-C1 |
US $160.16 |
||
|
69210
|
69210
69210-48040-D0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 01.2012] ANF10 RED MC.CS.,3R1 |
69210-48040-D0 |
US $145.60 |
||
|
69210
|
69210
69210-48040-E0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 09.2010] ANF10 BEIGE ME.,4T1 |
69210-48040-E0 |
US $192.19 |
||
|
69210
|
69210
69210-48040-E3 Handle Assy, Front Door, Outside Rh[09.2010 - 01.2012] ANF10 SLEEK ECRU ME.,4U7 |
69210-48040-E3 |
US $145.60 |
||
|
69210
|
69210
69210-48040-J0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [07.2009 - 09.2010] ANF10 DK.BLUE MC. CC.,8U0 |
69210-48040-J0 |
US $192.19 |
||
|
69210
|
69210
69210-48040-J3 Handle Assy, Front Door, Outside Rh[09.2010 - 01.2012] ANF10 LAPIS LAZULI MC.,8V3 |
69210-48040-J3 |
US $160.16 |
||
|
69217E
|
69217E
69217-48020-A0
Cover, Front Door Outside Handle, Rh
[07.2009 - 01.2012] ANF10 WHITE PEARL CS.,077 |
69217-48020-A0 |
— | ||
|
69217E
|
69217E
69217-48020-A1
Cover, Front Door Outside Handle, Rh
[07.2009 - 01.2012] ANF10 QUARTZ WHITE C.S.,078 |
69217-48020-A1 |
— | ||
|
69217E
|
69217E
69217-48020-B0
Cover, Front Door Outside Handle, Rh
[07.2009 - 10.2011] ANF10 DK.GRAY MC.,1G0 |
69217-48020-B0 |
— | ||
|
69217E
|
69217E
69217-48020-B2
Cover, Front Door Outside Handle, Rh
[07.2009 - 01.2012] ANF10 SILVER M.M.,1G1 |
69217-48020-B2 |
— | ||
|
69217E
|
69217E
69217-48020-B3
Cover, Front Door Outside Handle, Rh
[07.2009 - 01.2012] ANF10 MOONLIGHT OPAL CS.,1H0 |
69217-48020-B3 |
— | ||
|
69217E
|
69217E
69217-48020-B4
Cover, Front Door Outside Handle, Rh
[10.2011 - 01.2012] ANF10 MERCURY GRAY MC.,1H9 |
69217-48020-B4 |
— | ||
|
69217E
|
69217E
69217-48020-C0
Cover, Front Door Outside Handle, Rh
[07.2009 - 01.2012] ANF10 BLACK,212 |
69217-48020-C0 |
— | ||
|
69217E
|
69217E
69217-48020-C1
Cover, Front Door Outside Handle, Rh
[07.2009 - 01.2012] ANF10 BLACK OPAL MC.,214 |
69217-48020-C1 |
— | ||
|
69217E
|
69217E
69217-48020-D0
Cover, Front Door Outside Handle, Rh
[07.2009 - 01.2012] ANF10 RED MC.CS.,3R1 |
69217-48020-D0 |
— | ||
|
69217E
|
69217E
69217-48020-E0
Cover, Front Door Outside Handle, Rh
[07.2009 - 09.2010] ANF10 BEIGE ME.,4T1 |
69217-48020-E0 |
— | ||
|
69217E
|
69217E
69217-48020-E3
Cover, Front Door Outside Handle, Rh
[09.2010 - 01.2012] ANF10 SLEEK ECRU ME.,4U7 |
69217-48020-E3 |
— | ||
|
69217E
|
69217E
69217-48020-J0
Cover, Front Door Outside Handle, Rh
[07.2009 - 09.2010] ANF10 DK.BLUE MC. CC.,8U0 |
69217-48020-J0 |
— | ||
|
69217E
|
69217E
69217-48020-J3
Cover, Front Door Outside Handle, Rh
[09.2010 - 01.2012] ANF10 LAPIS LAZULI MC.,8V3 |
69217-48020-J3 |
— | ||
|
69217F
|
69217F
69218-48020-A0 Cover, Front Door Outside Handle, LhFRONT DOOR OUTSIDE HANDLE, LH [07.2009 - 01.2012] ANF10 WHITE PEARL CS.,077 |
69218-48020-A0 |
US $17.02 |
||
|
69217F
|
69217F
69218-48020-A1
Cover, Front Door Outside Handle, Lh
[07.2009 - 01.2012] ANF10 QUARTZ WHITE C.S.,078 |
69218-48020-A1 |
— | ||
|
69217F
|
69217F
69218-48020-B0
Cover, Front Door Outside Handle, Lh
[07.2009 - 10.2011] ANF10 DK.GRAY MC.,1G0 |
69218-48020-B0 |
— | ||
|
69217F
|
69217F
69218-48020-B2
Cover, Front Door Outside Handle, Lh
[07.2009 - 01.2012] ANF10 SILVER M.M.,1G1 |
69218-48020-B2 |
— | ||
|
69217F
|
69217F
69218-48020-B3
Cover, Front Door Outside Handle, Lh
[07.2009 - 01.2012] ANF10 MOONLIGHT OPAL CS.,1H0 |
69218-48020-B3 |
— | ||
|
69217F
|
69217F
69218-48020-B4
Cover, Front Door Outside Handle, Lh
[10.2011 - 01.2012] ANF10 MERCURY GRAY MC.,1H9 |
69218-48020-B4 |
— | ||
|
69217F
|
69217F
69218-48020-C0
Cover, Front Door Outside Handle, Lh
[07.2009 - 01.2012] ANF10 BLACK,212 |
69218-48020-C0 |
— | ||
|
69217F
|
69217F
69218-48020-C1
Cover, Front Door Outside Handle, Lh
[07.2009 - 01.2012] ANF10 BLACK OPAL MC.,214 |
69218-48020-C1 |
— | ||
|
69217F
|
69217F
69218-48020-D0
Cover, Front Door Outside Handle, Lh
[07.2009 - 01.2012] ANF10 RED MC.CS.,3R1 |
69218-48020-D0 |
— | ||
|
69217F
|
69217F
69218-48020-E0
Cover, Front Door Outside Handle, Lh
[07.2009 - 09.2010] ANF10 BEIGE ME.,4T1 |
69218-48020-E0 |
— | ||
|
69217F
|
69217F
69218-48020-E3
Cover, Front Door Outside Handle, Lh
[09.2010 - 01.2012] ANF10 SLEEK ECRU ME.,4U7 |
69218-48020-E3 |
— | ||
|
69217F
|
69217F
69218-48020-J0
Cover, Front Door Outside Handle, Lh
[07.2009 - 09.2010] ANF10 DK.BLUE MC. CC.,8U0 |
69218-48020-J0 |
— | ||
|
69217F
|
69217F
69218-48020-J3
Cover, Front Door Outside Handle, Lh
[09.2010 - 01.2012] ANF10 LAPIS LAZULI MC.,8V3 |
69218-48020-J3 |
— | ||
|
69220
|
69220
69220-48040-A0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 01.2012] ANF10 WHITE PEARL CS.,077 |
69220-48040-A0 |
US $216.24 |
||
|
69220
|
69220
69220-48040-A1 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 01.2012] ANF10 QUARTZ WHITE C.S.,078 |
69220-48040-A1 |
US $160.16 |
||
|
69220
|
69220
69220-48040-B0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 10.2011] ANF10 DK.GRAY MC.,1G0 |
69220-48040-B0 |
US $145.60 |
||
|
69220
|
69220
69220-48040-B2 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 01.2012] ANF10 SILVER M.M.,1G1 |
69220-48040-B2 |
US $160.16 |
||
|
69220
|
69220
69220-48040-B3 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 01.2012] ANF10 MOONLIGHT OPAL CS.,1H0 |
69220-48040-B3 |
US $145.60 |
||
|
69220
|
69220
69220-48040-B4 Handle Assy, Front Door Outside, Lh[10.2011 - 01.2012] ANF10 MERCURY GRAY MC.,1H9 |
69220-48040-B4 |
from US $145.60 |
||
|
69220
|
69220
69220-48040-C0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 01.2012] ANF10 BLACK,212 |
69220-48040-C0 |
US $145.60 |
||
|
69220
|
69220
69220-48040-C1 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 01.2012] ANF10 BLACK OPAL MC.,214 |
69220-48040-C1 |
US $160.16 |
||
|
69220
|
69220
69220-48040-D0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 01.2012] ANF10 RED MC.CS.,3R1 |
69220-48040-D0 |
US $145.60 |
||
|
69220
|
69220
69220-48040-E0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 09.2010] ANF10 BEIGE ME.,4T1 |
69220-48040-E0 |
US $192.19 |
||
|
69220
|
69220
69220-48040-E3 Handle Assy, Front Door Outside, Lh[09.2010 - 01.2012] ANF10 SLEEK ECRU ME.,4U7 |
69220-48040-E3 |
US $145.60 |
||
|
69220
|
69220
69220-48040-J0 Handle Assy, Front Door Outside, LhFRONT DOOR OUTSIDE, LH [07.2009 - 09.2010] ANF10 DK.BLUE MC. CC.,8U0 |
69220-48040-J0 |
US $192.19 |
||
|
69220
|
69220
69220-48040-J3 Handle Assy, Front Door Outside, Lh[09.2010 - 01.2012] ANF10 LAPIS LAZULI MC.,8V3 |
69220-48040-J3 |
US $160.16 |
||
|
69241H
|
69241H
69241-48030 Pad, Rear Door Outside Handle, FrontREAR DOOR OUTSIDE HANDLE, FRONT [07.2009 - 01.2012] ANF10 RH |
69241-48030 |
from US $6.40 |
||
|
69241H
|
69241H
69242-48030 Pad, Rear Door Outside Handle, FrontREAR DOOR OUTSIDE HANDLE, FRONT [07.2009 - 01.2012] ANF10 LH |
69242-48030 |
US $6.40 |
||
|
69242E
|
69242E
69241-48040 Pad, Front Door Outside Handle, RearFRONT DOOR OUTSIDE HANDLE, REAR [07.2009 - 09.2010] ANF10 RH |
69241-48040 |
US $7.28 |
||
| replacement | |||||
|
69242E
|
69242E
69241-48050 Pad, Front Door Outside Handle, Rear[07.2009 - 09.2010] ANF10 RH |
69241-48050 |
from US $6.40 |
||
|
69242E
|
69242E
69241-48041 Pad, Front Door Outside Handle, Rear[10.2010 - 01.2012] ANF10 RH |
69241-48041 |
US $7.28 |
||
| replacement | |||||
|
69242E
|
69242E
69241-48050 Pad, Front Door Outside Handle, Rear[10.2010 - 01.2012] ANF10 RH |
69241-48050 |
from US $6.40 |
||
|
69242E
|
69242E
69242-48040 Pad, Front Door Outside Handle, RearFRONT DOOR OUTSIDE HANDLE, REAR [07.2009 - 09.2010] ANF10 LH |
69242-48040 |
US $7.28 |
||
| replacement | |||||
|
69242E
|
69242E
69242-48050 Pad, Front Door Outside Handle, Rear[07.2009 - 09.2010] ANF10 LH |
69242-48050 |
from US $6.40 |
||
|
69242E
|
69242E
69242-48041 Pad, Front Door Outside Handle, Rear[10.2010 - 01.2012] ANF10 LH |
69242-48041 |
US $7.28 |
||
| replacement | |||||
|
69242E
|
69242E
69242-48050 Pad, Front Door Outside Handle, Rear[10.2010 - 01.2012] ANF10 LH |
69242-48050 |
from US $6.40 |
||
|
69283
|
69283
69283-30050-A2 Plug, Front Door Inside Handle Bezel, RhFRONT DOOR INSIDE HANDLE BEZEL, RH [07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
69283-30050-A2 |
US $9.03 |
||
|
69283
|
69283
69283-30050-A3 Plug, Front Door Inside Handle Bezel, RhFRONT DOOR INSIDE HANDLE BEZEL, RH [07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
69283-30050-A3 |
US $10.05 |
||
|
69283
|
69283
69283-30050-C0 Plug, Front Door Inside Handle Bezel, Rh[07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
69283-30050-C0 |
US $10.72 |
||
|
69284C
|
69284C
69284-30050-A2 Plug, Front Door Inside Handle Bezel, LhFRONT DOOR INSIDE HANDLE BEZEL, LH [07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
69284-30050-A2 |
US $9.03 |
||
|
69284C
|
69284C
69284-30050-A3 Plug, Front Door Inside Handle Bezel, LhFRONT DOOR INSIDE HANDLE BEZEL, LH [07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
69284-30050-A3 |
US $10.05 |
||
|
69284C
|
69284C
69284-30050-C0 Plug, Front Door Inside Handle Bezel, Lh[07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
69284-30050-C0 |
US $10.72 |
||
|
69293G
|
69293G
69293-12030 Snap, Front Door Outside Handle[07.2009 - 01.2012] ANF10 |
69293-12030 |
from US $2.09 |
||
|
69294B
|
69294B
69293-12040 Snap, Front Door Outside Handle[07.2009 - 01.2012] ANF10 |
69293-12040 |
from US $2 |
||
|
69311A
|
69311A
69311-75010 Rod, Front Door Lock Open, RhFRONT DOOR LOCK OPEN, RH [07.2009 - 01.2012] ANF10 |
69311-75010 |
US $5.53 |
||
|
69312
|
69312
69312-75010 Rod, Front Door Lock Open, LhFRONT DOOR LOCK OPEN, LH [07.2009 - 01.2012] ANF10 |
69312-75010 |
US $5.53 |
||
|
69318C
|
69318C
69318-51010 Seal, Front Door Lock Hole, Rh[07.2009 - 01.2012] ANF10 |
69318-51010 |
from US $1.64 |
||
|
69410
|
69410
69410-33020 Plate Assy, Front Door Lock Striker[07.2009 - 01.2012] ANF10 |
69410-33020 |
US $25.08 |
||
|
69415B
|
69415B
69415-33010 Cover, Door Lock Striker, Front[07.2009 - 01.2012] ANF10 |
69415-33010 |
US $5.12 |
||
|
69710B
|
69710B
69710-75020 Cable Assy, Front Door Lock Remote Control, RhFRONT DOOR LOCK REMOTE CONTROL, RH [07.2009 - 01.2012] ANF10 |
69710-75020 |
US $12.67 |
||
|
69720B
|
69720B
69710-75020 Cable Assy, Front Door Lock Remote Control, RhFRONT DOOR LOCK REMOTE CONTROL, RH [07.2009 - 01.2012] ANF10 |
69710-75020 |
US $12.67 |
||
|
69750C
|
69750C
69750-75020 Cable Assy, Front Door Inside Locking, RhFRONT DOOR INSIDE LOCKING, RH [07.2009 - 01.2012] ANF10 |
69750-75020 |
US $14.12 |
||
|
69760C
|
69760C
69750-75020 Cable Assy, Front Door Inside Locking, RhFRONT DOOR INSIDE LOCKING, RH [07.2009 - 01.2012] ANF10 |
69750-75020 |
US $14.12 |
||
|
6923730010
|
6923730010
69237-30010 Nut, Front Door Handle |
69237-30010 |
US $2.56 |
||
|
6923930010
|
6923930010
69239-30010 Bush(For Rear Door Outside Handle) |
69239-30010 |
US $1.44 |
||
|
6929630010
|
6929630010
69296-30010 Screw, Door Inside Handle |
69296-30010 |
US $1.44 |
||
|
9014850003
|
9014850003
90148-50003 Screw Hex Lobular |
90148-50003 |
from US $0.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.68 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.68 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
