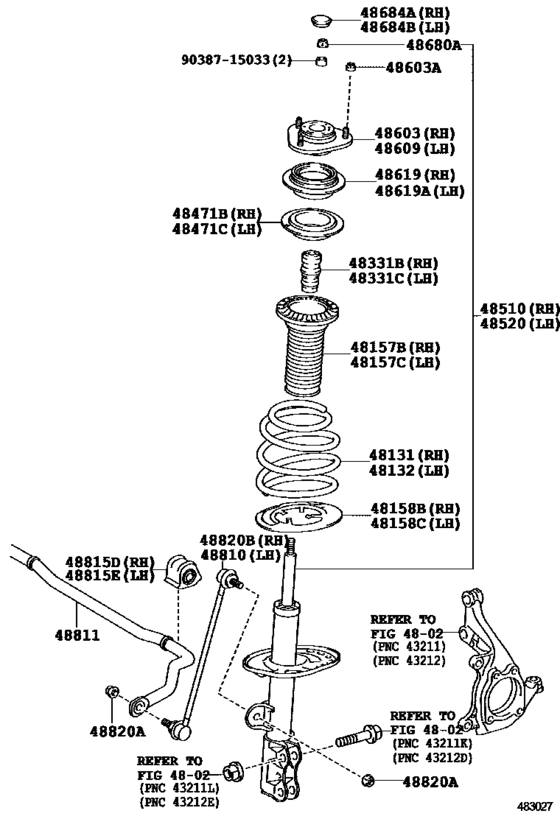

Front Spring & Shock Absorber ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- ANF10
- grade
- V
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- To
- 01.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-75020 Spring, Front Coil, RhFRONT COIL, RH [07.2009 - 10.2011] ANF10 |
48131-75020 |
US $110.88 |
||
|
48131
|
48131
48131-75021 Spring, Front Coil, Rh[10.2011 - 01.2012] ANF10 |
48131-75021 |
US $101.92 |
||
|
48132
|
48132
48131-75020 Spring, Front Coil, RhFRONT COIL, RH [07.2009 - 10.2011] ANF10 |
48131-75020 |
US $110.88 |
||
|
48132
|
48132
48131-75021 Spring, Front Coil, Rh[10.2011 - 01.2012] ANF10 |
48131-75021 |
US $101.92 |
||
|
48157B
|
48157B
48157-47020 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [01.2010 - 01.2012] ANF10 |
48157-47020 |
from US $20.36 |
||
|
48157B
|
48157B
48157-72010 Insulator, Front Coil Spring, Upper Rh[07.2009 - 12.2009] ANF10 |
48157-72010 |
US $20.97 |
||
| replacement | |||||
|
48157B
|
48157B
48157-47020 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [07.2009 - 12.2009] ANF10 |
48157-47020 |
from US $20.36 |
||
|
48157C
|
48157C
48157-47020 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [01.2010 - 01.2012] ANF10 |
48157-47020 |
from US $20.36 |
||
|
48157C
|
48157C
48157-72010 Insulator, Front Coil Spring, Upper Rh[07.2009 - 12.2009] ANF10 |
48157-72010 |
US $20.97 |
||
| replacement | |||||
|
48157C
|
48157C
48157-47020 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [07.2009 - 12.2009] ANF10 |
48157-47020 |
from US $20.36 |
||
|
48158B
|
48158B
48158-42010 Insulator, Front Coil Spring, Lower[07.2009 - 01.2012] ANF10 |
48158-42010 |
from US $12.17 |
||
|
48158C
|
48158C
48158-42010 Insulator, Front Coil Spring, Lower[07.2009 - 01.2012] ANF10 |
48158-42010 |
from US $12.17 |
||
|
48331B
|
48331B
48331-21030 Bumper, Front Spring, Rh[08.2011 - 01.2012] ANF10 |
48331-21030 |
from US $9.01 |
||
|
48331B
|
48331B
48331-75010 Bumper, Front Spring, RhFRONT SPRING, RH [07.2009 - 07.2011] ANF10 |
48331-75010 |
US $9.61 |
||
| replacement | |||||
|
48331B
|
48331B
48331-21030 Bumper, Front Spring, Rh[07.2009 - 07.2011] ANF10 |
48331-21030 |
from US $9.01 |
||
|
48331C
|
48331C
48331-21030 Bumper, Front Spring, Rh[08.2011 - 01.2012] ANF10 |
48331-21030 |
from US $9.01 |
||
|
48331C
|
48331C
48331-75010 Bumper, Front Spring, RhFRONT SPRING, RH [07.2009 - 07.2011] ANF10 |
48331-75010 |
US $9.61 |
||
| replacement | |||||
|
48331C
|
48331C
48331-21030 Bumper, Front Spring, Rh[07.2009 - 07.2011] ANF10 |
48331-21030 |
from US $9.01 |
||
|
48471B
|
48471B
48471-42010 Seat, Front Coil Spring, Upper[07.2009 - 01.2012] ANF10 |
48471-42010 |
from US $15.20 |
||
|
48471C
|
48471C
48471-42010 Seat, Front Coil Spring, Upper[07.2009 - 01.2012] ANF10 |
48471-42010 |
from US $15.20 |
||
|
48510
|
48510
48510-79075
Absorber Assy, Shock, Front Rh
[07.2009 - 10.2011] ANF10 MARK 48510-75040 |
48510-79075 |
— | ||
|
48510
|
48510
48510-79085 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [07.2009 - 10.2011] ANF10..V MARK 48510-75060,TOURING PACKAGE&TIRE & DISK WHEEL-225/45R18 ALUMI(CHROME PAINTED) |
48510-79085 |
US $313.73 |
||
|
48510
|
48510
48510-79145 Absorber Assy, Shock, Front Rh[10.2011 - 01.2012] ANF10 MARK 48510-75031 |
48510-79145 |
US $222.77 |
||
|
48510
|
48510
48510-79155 Absorber Assy, Shock, Front Rh[10.2011 - 01.2012] ANF10..V MARK 48510-75061,TOURING PACKAGE&TIRE & DISK WHEEL-225/45R18 ALUMI(CHROME PAINTED) |
48510-79155 |
US $222.77 |
||
|
48520
|
48520
48520-79075
Absorber Assy, Shock, Front Lh
[07.2009 - 10.2011] ANF10 MARK 48520-75040 |
48520-79075 |
— | ||
|
48520
|
48520
48520-79085 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [07.2009 - 10.2011] ANF10..V MARK 48520-75060,TOURING PACKAGE&TIRE & DISK WHEEL-225/45R18 ALUMI(CHROME PAINTED) |
48520-79085 |
US $276.64 |
||
|
48520
|
48520
48520-79145 Absorber Assy, Shock, Front Lh[10.2011 - 01.2012] ANF10 MARK 48520-75031 |
48520-79145 |
US $222.77 |
||
|
48520
|
48520
48520-79155 Absorber Assy, Shock, Front Lh[10.2011 - 01.2012] ANF10..V MARK 48520-75061,TOURING PACKAGE&TIRE & DISK WHEEL-225/45R18 ALUMI(CHROME PAINTED) |
48520-79155 |
US $222.77 |
||
|
48603
|
48603
48609-75020 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [07.2009 - 01.2012] ANF10 |
48609-75020 |
US $82.88 |
||
|
48603A
|
48603A
90178-10030 Nut(For Front Suspension Support)[07.2009 - 01.2012] ANF10 |
90178-10030 |
from US $0.92 |
||
|
48609
|
48609
48609-75020 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [07.2009 - 01.2012] ANF10 |
48609-75020 |
US $82.88 |
||
|
48619
|
48619
48619-28010 Bearing, Strut Mounting[07.2009 - 01.2012] ANF10 |
48619-28010 |
from US $14.72 |
||
|
48619A
|
48619A
48619-28010 Bearing, Strut Mounting[07.2009 - 01.2012] ANF10 |
48619-28010 |
from US $14.72 |
||
|
48680A
|
48680A
90177-14005 Nut(For Front Support To Front Shock Absorber)[07.2009 - 01.2012] ANF10 |
90177-14005 |
US $1.92 |
||
|
48684A
|
48684A
48684-42020 Cover, Front Suspension Support Dust, Rh[07.2009 - 01.2012] ANF10 |
48684-42020 |
US $16.11 |
||
|
48684B
|
48684B
48684-42020 Cover, Front Suspension Support Dust, Rh[07.2009 - 01.2012] ANF10 |
48684-42020 |
US $16.11 |
||
|
48810
|
48810
48820-42030 Link Assy, Front Stabilizer[07.2009 - 01.2012] ANF10 |
48820-42030 |
from US $53.92 |
||
|
48811
|
48811
48811-75020 Bar, Stabilizer, FrontSTABILIZER, FRONT [07.2009 - 01.2012] ANF10 |
48811-75020 |
US $104.83 |
||
|
48815D
|
48815D
48815-75020 Bush, Front Stabilizer Bar, RhFRONT STABILIZER BAR, RH [07.2009 - 01.2012] ANF10 |
48815-75020 |
from US $15.96 |
||
|
48815E
|
48815E
48815-75010 Bush, Front Stabilizer Bar, LhFRONT STABILIZER BAR, LH [07.2009 - 01.2012] ANF10 |
48815-75010 |
from US $15.96 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[07.2009 - 01.2012] ANF10 |
90179-12151 |
from US $0.94 |
||
|
48820B
|
48820B
48820-42030 Link Assy, Front Stabilizer[07.2009 - 01.2012] ANF10 |
48820-42030 |
from US $53.92 |
||
|
9038715033
|
9038715033
90387-15033 COLLAR |
90387-15033 |
US $3.20 |
||
