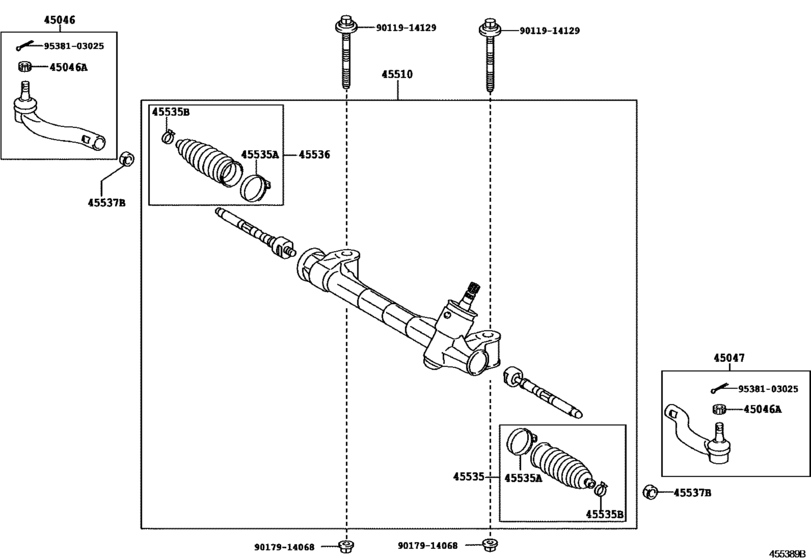

Front Steering Gear & Link ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- ANF10
- grade
- V
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- To
- 01.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-49195 End Sub-Assy, Tie Rod, Rh[07.2009 - 01.2012] ANF10 |
45046-49195 |
from US $47.07 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[07.2009 - 01.2012] ANF10 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-49135 End Sub-Assy, Tie Rod, Lh[07.2009 - 01.2012] ANF10 |
45047-49135 |
from US $50.62 |
||
|
45510
|
45510
45510-75030
Gear Assy, Steering
[07.2009 - 01.2012] ANF10 |
45510-75030 |
— | ||
|
45535
|
45535
45535-49015 Boot, Steering Rack, No.1STEERING RACK, NO.1 [07.2009 - 01.2012] ANF10 |
45535-49015 |
from US $17.63 |
||
|
45535A
|
45535A
45538-47010 Clamp(For Steering Rack Boot)[07.2009 - 01.2012] ANF10 |
45538-47010 |
US $4.32 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[07.2009 - 01.2012] ANF10 |
90467-19021 |
from US $1.54 |
||
|
45536
|
45536
45535-49015 Boot, Steering Rack, No.1STEERING RACK, NO.1 [07.2009 - 01.2012] ANF10 |
45535-49015 |
from US $17.63 |
||
|
45537B
|
45537B
90178-16001 Nut[07.2009 - 01.2012] ANF10 |
90178-16001 |
from US $1.85 |
||
|
9011914129
|
9011914129
90119-14129 Bolt, Steering Rack Housing |
90119-14129 |
US $6.88 |
||
|
9017914068
|
9017914068
90179-14068 Nut(For Front Suspension Lower Arm) |
90179-14068 |
from US $1.92 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
