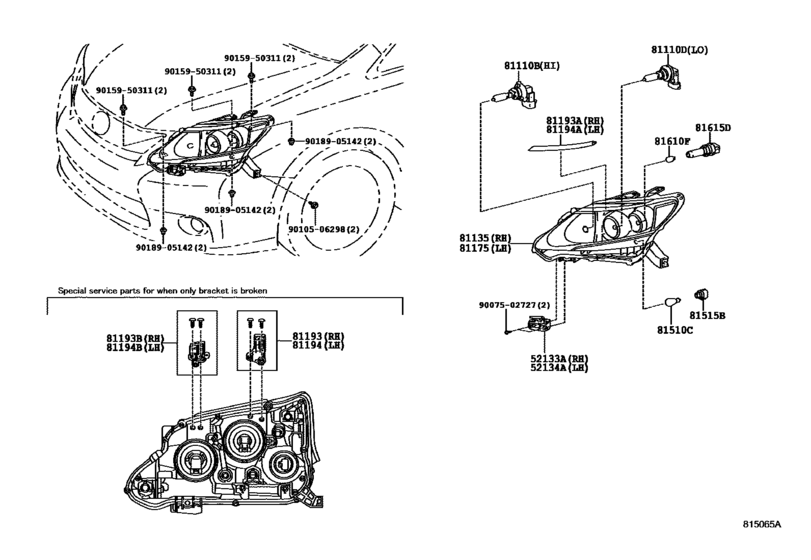

Headlamp ([07.2009 - ] HALOGEN (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- ANF10
- grade
- V
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- To
- 01.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52133A
|
52133A
52133-75020 Bracket, Front Bumper, RhFRONT BUMPER, RH [07.2009 - 01.2012] ANF10 |
52133-75020 |
US $16.35 |
||
|
52134A
|
52134A
52134-75020 Bracket, Front Bumper, LhFRONT BUMPER, LH [07.2009 - 01.2012] ANF10 |
52134-75020 |
US $14 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[07.2009 - 01.2012] ANF10 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $16.34 |
||
|
81110D
|
81110D
90981-13075 Bulb(For Headlamp, No.1)[07.2009 - 01.2012] ANF10 12V 55W,HALOGEN |
90981-13075 |
from US $17.86 |
||
|
81135
|
81135
81130-75030 Unit Assy, Headlamp, RhHEADLAMP, RH [07.2009 - 01.2012] ANF10 |
81130-75030 |
US $844.48 |
||
|
81135
|
81135
81145-75101
Unit Assy, Headlamp, Rh
[07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM |
81145-75101 |
— | ||
|
81175
|
81175
81170-75030
Unit Assy, Headlamp, Lh
[07.2009 - 01.2012] ANF10 |
81170-75030 |
— | ||
|
81175
|
81175
81185-75101
Unit Assy, Headlamp, Lh
[07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM |
81185-75101 |
— | ||
|
81193
|
81193
81193-75070
Retainer, Headlamp Protector, Upper Rh
[07.2009 - 01.2012] ANF10 |
81193-75070 |
— | ||
|
81193
|
81193
81193-75090 Retainer, Headlamp Protector, Upper RhHEADLAMP PROTECTOR, UPR RH [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM |
81193-75090 |
US $13.92 |
||
|
81193A
|
81193A
81193-75020 Protector, Headlamp, RhHEADLAMP, RH [07.2009 - 01.2012] ANF10 |
81193-75020 |
US $8.74 |
||
|
81193B
|
81193B
81193-75080 Retainer, Headlamp Protector, Upper Rh No.2HEADLAMP PROTECTOR, UPR RH NO.2 [07.2009 - 01.2012] ANF10 |
81193-75080 |
US $11.20 |
||
|
81194
|
81194
81194-75070
Retainer, Headlamp Protector, Upper Lh
[07.2009 - 01.2012] ANF10 |
81194-75070 |
— | ||
|
81194
|
81194
81194-75090 Retainer, Headlamp Protector, Upper LhHEADLAMP PROTECTOR, UPR LH [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM |
81194-75090 |
US $13.92 |
||
|
81194A
|
81194A
81194-75020 Protector, Headlamp, LhHEADLAMP, LH [07.2009 - 01.2012] ANF10 |
81194-75020 |
US $8.74 |
||
|
81194B
|
81194B
81194-75080 Retainer, Headlamp Protector, Upper Lh No.2HEADLAMP PROTECTOR, UPR LH NO.2 [07.2009 - 01.2012] ANF10 |
81194-75080 |
US $11.20 |
||
|
81510C
|
81510C
90981-AF004 Bulb, Front Turn Signal & Parking Lamp[07.2009 - 01.2012] ANF10 12V 30/8W |
90981-AF004 |
from US $9.07 |
||
|
81515B
|
81515B
90075-60060 Plug Assy, Front Turn Signal LampFRONT TURN SIGNAL LAMP [07.2009 - 01.2012] ANF10 |
90075-60060 |
from US $6.79 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[07.2009 - 01.2012] ANF10 12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[07.2009 - 01.2012] ANF10 12V 5W |
90080-81053 |
US $2.75 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[07.2009 - 01.2012] ANF10 |
90075-60077 |
from US $6.47 |
||
|
9007502727
|
9007502727
90075-02727 Screw, Headlamp |
90075-02727 |
US $1.12 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.64 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.80 |
||
