Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
52133A	52133A 52133-75020 Bracket, Front Bumper, Rh FRONT BUMPER, RH [07.2009 - 01.2012] ANF10	52133-75020	US $16.35
52134A	52134A 52134-75020 Bracket, Front Bumper, Lh FRONT BUMPER, LH [07.2009 - 01.2012] ANF10	52134-75020	US $14
81107	81107 81107-47240 Computer Sub-Assy, Headlamp Light Control [07.2009 - 06.2011] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81107-47240	—
	replacement
81107	81107 81107-47290 Computer Sub-Assy, Headlamp Light Control [07.2009 - 06.2011] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81107-47290	US $779.80
81107	81107 81107-47290 Computer Sub-Assy, Headlamp Light Control [06.2011 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81107-47290	US $779.80
81108	81108 81107-47240 Computer Sub-Assy, Headlamp Light Control [07.2009 - 06.2011] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81107-47240	—
	replacement
81108	81108 81107-47290 Computer Sub-Assy, Headlamp Light Control [07.2009 - 06.2011] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81107-47290	US $779.80
81108	81108 81107-47290 Computer Sub-Assy, Headlamp Light Control [06.2011 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81107-47290	US $779.80
81110B	81110B 90981-13046 Bulb(For Headlamp, No.1) (12V, 65W) [07.2009 - 01.2012] ANF10 12V65W(SAE),60W(ECE)	90981-13046	from US $16.34
81125	81125 81125-75100 Cord, Headlamp [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81125-75100	—
81129A	81129A 81129-50381 Reflector, Headlamp, Rh HEADLAMP SWIVEL, RH [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81129-50381	US $168.90
81134	81134 90075-68007 Gasket, Headlamp [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	90075-68007	from US $7.68
81135	81135 81130-75030 Unit Assy, Headlamp, Rh HEADLAMP, RH [07.2009 - 01.2012] ANF10	81130-75030	US $844.48
81135	81135 81145-75101 Unit Assy, Headlamp, Rh [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81145-75101	—
81135C	81135C 81135-75080 Cover, Headlamp Back, No.1 HEADLAMP BACK, NO.1 [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81135-75080	US $9.04
81169	81169 81169-50381 Reflector, Headlamp, Lh HEADLAMP SWIVEL, LH [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81169-50381	US $168.90
81175	81175 81170-75030 Unit Assy, Headlamp, Lh [07.2009 - 01.2012] ANF10	81170-75030	—
81175	81175 81185-75101 Unit Assy, Headlamp, Lh [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81185-75101	—
81193	81193 81193-75070 Retainer, Headlamp Protector, Upper Rh [07.2009 - 01.2012] ANF10	81193-75070	—
81193	81193 81193-75090 Retainer, Headlamp Protector, Upper Rh HEADLAMP PROTECTOR, UPR RH [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81193-75090	US $13.92
81193A	81193A 81193-75020 Protector, Headlamp, Rh HEADLAMP, RH [07.2009 - 01.2012] ANF10	81193-75020	US $8.74
81193B	81193B 81193-75080 Retainer, Headlamp Protector, Upper Rh No.2 HEADLAMP PROTECTOR, UPR RH NO.2 [07.2009 - 01.2012] ANF10	81193-75080	US $11.20
81194	81194 81194-75070 Retainer, Headlamp Protector, Upper Lh [07.2009 - 01.2012] ANF10	81194-75070	—
81194	81194 81194-75090 Retainer, Headlamp Protector, Upper Lh HEADLAMP PROTECTOR, UPR LH [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	81194-75090	US $13.92
81194A	81194A 81194-75020 Protector, Headlamp, Lh HEADLAMP, LH [07.2009 - 01.2012] ANF10	81194-75020	US $8.74
81194B	81194B 81194-75080 Retainer, Headlamp Protector, Upper Lh No.2 HEADLAMP PROTECTOR, UPR LH NO.2 [07.2009 - 01.2012] ANF10	81194-75080	US $11.20
81510C	81510C 90981-AF004 Bulb, Front Turn Signal & Parking Lamp [07.2009 - 01.2012] ANF10 12V 30/8W	90981-AF004	from US $9.07
81610F	81610F 99132-12050 Bulb (12V 5W) [07.2009 - 01.2012] ANF10 12V 5W	99132-12050	from US $1.76
	replacement
81610F	81610F 90080-81053 Bulb(For Clearance Lamp) [07.2009 - 01.2012] ANF10 12V 5W	90080-81053	US $1.15
81710F	81710F 99132-12050 Bulb (12V 5W) [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	99132-12050	from US $1.76
	replacement
81710F	81710F 90080-81053 Bulb(For Clearance Lamp) [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	90080-81053	US $1.15
85661	85661 85661-28011 Motor, Headlamp Leveling, Rh HEADLAMP LEVELING, RH [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	85661-28011	from US $164.24
85662	85662 85691-28011 Motor, Headlamp Leveling, Lh HEADLAMP LEVELING, LH [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	85691-28011	from US $164.24
85669	85669 90075-99120 Packing, Headlamp Leveling Motor Base [07.2009 - 01.2012] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM	90075-99120	from US $2.71
9007502056	9007502056 90075-02056 Screw, Headlamp	90075-02056	from US $0.64
9007502727	9007502727 90075-02727 Screw, Headlamp	90075-02727	US $1.12
9010506298	9010506298 90105-06298 BOLT FLANGE	90105-06298	from US $0.64
9015950311	9015950311 90159-50311 SCREW	90159-50311	from US $0.76
	replacement
9015950311	9015950311 90159-A0034 SCREW WWASHER	90159-A0034	US $22.20 ~~US $22.20~~
9018905142	9018905142 90189-05142 GROMMET, SCREW	90189-05142	from US $0.80

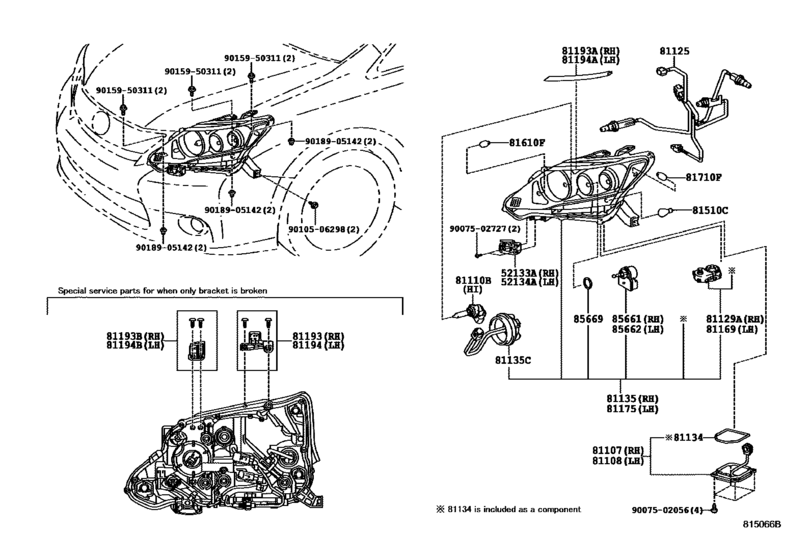

Headlamp ([07.2009 - ] LED (0907- )) Diagram Toyota LEXUS HS250H U.S.A. 17820737-917340

Headlamp ([07.2009 - ] LED (0907- )) Diagram Toyota LEXUS HS250H U.S.A. 17820737-917340
