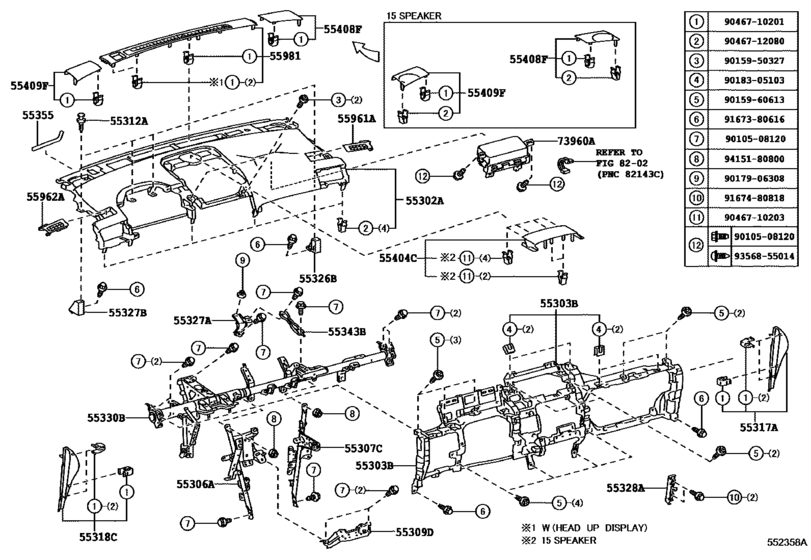

Instrument Panel & Glove Compartment ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- ANF10
- grade
- V
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- To
- 01.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55302A
|
55302A
55302-75030-C0
Panel Sub-Assy, Instrument, Upper
[07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55302-75030-C0 |
— | ||
|
55302A
|
55302A
55302-75030-E0
Panel Sub-Assy, Instrument, Upper
[07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05,06 |
55302-75030-E0 |
— | ||
|
55303B
|
55303B
55303-75030
Panel Sub-Assy, Instrument, Lower
[07.2009 - 01.2012] ANF10 |
55303-75030 |
— | ||
|
55306A
|
55306A
55306-75030
Brace Sub-Assy, Instrument Panel, No.1
[07.2009 - 01.2012] ANF10 |
55306-75030 |
— | ||
|
55307C
|
55307C
55307-75030
Brace Sub-Assy, Instrument Panel, No.2
[07.2009 - 01.2012] ANF10 |
55307-75030 |
— | ||
|
55309D
|
55309D
55309-75030
Brace Sub-Assy, Instrument Panel To Floor
[07.2009 - 01.2012] ANF10 |
55309-75030 |
— | ||
|
55312A
|
55312A
52161-16010 Clip[07.2009 - 01.2012] ANF10 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
55312A
|
55312A
52161-0K040 Clip[07.2009 - 01.2012] ANF10 |
52161-0K040 |
from US $1.50 |
||
|
55312A
|
55312A
52161-02020 Clip[07.2009 - 01.2012] ANF10 |
52161-02020 |
US $5.27 |
||
|
55317A
|
55317A
55317-75050-C0 Panel, Instrument Side, RhINSTRUMENT SIDE, RH [07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55317-75050-C0 |
US $24.46 |
||
|
55317A
|
55317A
55317-75050-E0 Panel, Instrument Side, RhINSTRUMENT SIDE, RH [07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05 |
55317-75050-E0 |
US $24.46 |
||
|
55318C
|
55318C
55318-75030-C0 Panel, Instrument Side, LhINSTRUMENT SIDE, LH [07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55318-75030-C0 |
US $24.46 |
||
|
55318C
|
55318C
55318-75030-E0 Panel, Instrument Side, LhINSTRUMENT SIDE, LH [07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05 |
55318-75030-E0 |
US $24.46 |
||
|
55326B
|
55326B
55326-75010 Stay, Instrument Panel, RhINSTRUMENT PANEL, RH [07.2009 - 01.2012] ANF10 |
55326-75010 |
US $13.83 |
||
|
55327A
|
55327A
55327-75020
Stay, Instrument Panel, No.2
[07.2009 - 01.2012] ANF10 |
55327-75020 |
— | ||
|
55327B
|
55327B
55326-75020 Stay, Instrument Panel, LhINSTRUMENT PANEL, LH [07.2009 - 01.2012] ANF10 |
55326-75020 |
US $13.83 |
||
|
55328A
|
55328A
55328-75080
Stay, Instrument Panel, No.3
[07.2009 - 01.2012] ANF10 |
55328-75080 |
— | ||
|
55330B
|
55330B
55330-75030
Reinforcement Assy, Instrument Panel
[07.2009 - 01.2012] ANF10 |
55330-75030 |
— | ||
|
55343B
|
55343B
55343-75010 Brace, Instrument Panel To Cowl, CenterINSTRUMENT PANEL TO COWL, CENTER [07.2009 - 01.2012] ANF10 |
55343-75010 |
US $9.61 |
||
|
55355
|
55355
55355-75060
Cushion, Instrument Panel, No.1
[07.2009 - 01.2012] ANF10 |
55355-75060 |
— | ||
|
55404C
|
55404C
55472-75020 Panel Sub-Assy, Instrument Cluster Finish, No.2INSTRUMENT CLUSTER FINISH, NO.2 [07.2009 - 01.2012] ANF10 |
55472-75020 |
US $35.67 |
||
|
55408F
|
55408F
55408-75020-C0 Panel Sub-Assy, Instrument Panel Speaker, No.1INSTRUMENT PANEL SPEAKER, NO.1 [07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55408-75020-C0 |
US $26.35 |
||
|
55408F
|
55408F
55408-75020-E0 Panel Sub-Assy, Instrument Panel Speaker, No.1INSTRUMENT PANEL SPEAKER, NO.1 [07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05,06 |
55408-75020-E0 |
US $26.35 |
||
|
55409F
|
55409F
55409-75030-C0
Panel Sub-Assy, Instrument Panel Speaker, No.2
[07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55409-75030-C0 |
— | ||
|
55409F
|
55409F
55409-75030-E0
Panel Sub-Assy, Instrument Panel Speaker, No.2
[07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05,06 |
55409-75030-E0 |
— | ||
|
55961A
|
55961A
55961-75010-C0 Nozzle, Side Defroster, RhSIDE DEFROSTER, RH [07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55961-75010-C0 |
US $12.08 |
||
|
55961A
|
55961A
55961-75010-E0 Nozzle, Side Defroster, RhSIDE DEFROSTER, RH [07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05,06 |
55961-75010-E0 |
US $12.08 |
||
|
55962A
|
55962A
55962-75010-C0 Nozzle, Side Defroster, LhSIDE DEFROSTER, LH [07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55962-75010-C0 |
US $12.08 |
||
|
55962A
|
55962A
55962-75010-E0 Nozzle, Side Defroster, LhSIDE DEFROSTER, LH [07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05,06 |
55962-75010-E0 |
US $12.08 |
||
|
55981
|
55981
55981-75010-C0 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55981-75010-C0 |
US $54.75 |
||
|
55981
|
55981
55981-75010-E0 Garnish, Defroster Nozzle, No.1DEFROSTER NOZZLE, NO.1 [07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05,06 |
55981-75010-E0 |
US $54.75 |
||
|
73960A
|
73960A
73960-75020
Air Bag Assy, Instrument Panel Passenger W/o Door
[07.2009 - 01.2012] ANF10 |
73960-75020 |
— | ||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9015960613
|
9015960613
90159-60613 New Genuine Part |
90159-60613 |
US $0.96 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.96 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167480818
|
9167480818
91674-80818 BOLT FLANGE |
91674-80818 |
from US $0.99 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
||
