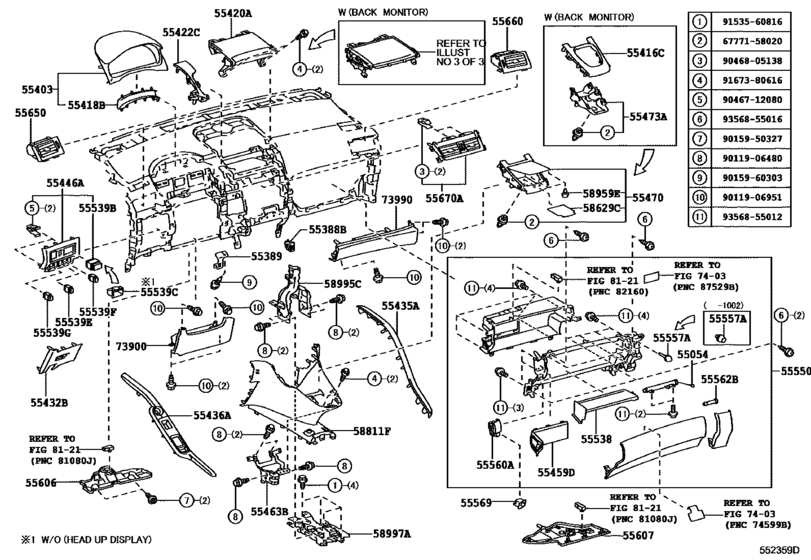

Instrument Panel & Glove Compartment ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- ANF10
- grade
- V
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- To
- 01.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-75010 Stopper Sub-Assy, Glove Compartment DoorGLOVE COMPARTMENT DOOR [07.2009 - 01.2012] ANF10 |
55054-75010 |
US $11.79 |
||
|
55388B
|
55388B
55388-42010 Bracket, Console Mounting, RhFINISH PANEL MOUNTING, NO.2 [07.2009 - 01.2011] ANF10 |
55388-42010 |
US $2.68 |
||
|
55388B
|
55388B
55388-75040
Bracket, Console Mounting, Rh
[02.2011 - 01.2012] ANF10 |
55388-75040 |
— | ||
|
55389
|
55389
55389-12040 Bracket, Console Mounting, LhFINISH PANEL MOUNTING, NO.1 [07.2009 - 01.2012] ANF10 |
55389-12040 |
US $4.95 |
||
|
55403
|
55403
55403-75020-C2
Hood Sub-Assy, Meter
[07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55403-75020-C2 |
— | ||
|
55403
|
55403
55403-75020-E3
Hood Sub-Assy, Meter
[07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05 |
55403-75020-E3 |
— | ||
|
55416C
|
55416C
55416-75050 Retainer, Instrument Cluster Finish PanelINSTRUMENT CLUSTER FINISH PANEL [07.2009 - 01.2012] ANF10 BACK MONITOR(REAR TELEVISION CAMERA)-WITH; ANF10..W BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM) |
55416-75050 |
US $41.50 |
||
|
55418B
|
55418B
55418-75020
Spacer,meter Hood
[07.2009 - 01.2012] ANF10 |
55418-75020 |
— | ||
|
55420A
|
55420A
55420-75021
Panel Assy, Instrument Cluster Finish, Center
[07.2009 - 08.2011] ANF10 BACK MONITOR(REAR TELEVISION CAMERA)-WITH; ANF10..W BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM) |
55420-75021 |
— | ||
| replacement | |||||
|
55420A
|
55420A
55420-75022
Panel Assy, Instrument Cluster Finish, Center
[07.2009 - 08.2011] ANF10 BACK MONITOR(REAR TELEVISION CAMERA)-WITH; ANF10..W BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM) |
55420-75022 |
— | ||
|
55420A
|
55420A
55420-75022
Panel Assy, Instrument Cluster Finish, Center
[09.2011 - 01.2012] ANF10 BACK MONITOR(REAR TELEVISION CAMERA)-WITH; ANF10..W BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM) |
55420-75022 |
— | ||
|
55420A
|
55420A
55420-75040
Panel Assy, Instrument Cluster Finish, Center
[07.2009 - 01.2012] ANF10 |
55420-75040 |
— | ||
|
55422C
|
55422C
55422-75020-C0
Panel, Instrument Cluster Finish, Center Upper
[07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55422-75020-C0 |
— | ||
|
55422C
|
55422C
55422-75020-E0
Panel, Instrument Cluster Finish, Center Upper
[07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05,06 |
55422-75020-E0 |
— | ||
|
55432B
|
55432B
55432-75020-A0
Panel, Instrument Panel Finish, Lower
[07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
55432-75020-A0 |
— | ||
|
55432B
|
55432B
55432-75020-A1
Panel, Instrument Panel Finish, Lower
[07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
55432-75020-A1 |
— | ||
|
55432B
|
55432B
55432-75020-C0
Panel, Instrument Panel Finish, Lower
[07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
55432-75020-C0 |
— | ||
|
55435A
|
55435A
55435-75020-C1
Panel, Instrument Panel Finish, End Rh
[07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55435-75020-C1 |
— | ||
|
55435A
|
55435A
55435-75020-E2
Panel, Instrument Panel Finish, End Rh
[07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05 |
55435-75020-E2 |
— | ||
|
55436A
|
55436A
55436-75020-C1
Panel, Instrument Panel Finish, End Lh
[07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55436-75020-C1 |
— | ||
|
55436A
|
55436A
55436-75020-E2
Panel, Instrument Panel Finish, End Lh
[07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05 |
55436-75020-E2 |
— | ||
|
55446A
|
55446A
55446-75040-A0
Base, Switch Hole, No.1
[07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
55446-75040-A0 |
— | ||
|
55446A
|
55446A
55446-75040-A1
Base, Switch Hole, No.1
[07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
55446-75040-A1 |
— | ||
|
55446A
|
55446A
55446-75040-C0
Base, Switch Hole, No.1
[07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
55446-75040-C0 |
— | ||
|
55459D
|
55459D
55459-75010
Cover, Instrument, Lower Lh
[07.2009 - 01.2012] ANF10 |
55459-75010 |
— | ||
|
55463B
|
55463B
55463-75060
Bracket, Console Box Mounting, No.2
[07.2009 - 01.2012] ANF10 |
55463-75060 |
— | ||
|
55470
|
55470
55470-75040
Garnish Assy, Instrument Cluster Finish Panel
[07.2009 - 01.2012] ANF10 |
55470-75040 |
— | ||
|
55473A
|
55473A
55473-75030 Retainer, Instrument Panel Finish PanelINSTRUMENT PANEL FINISH PANEL [07.2009 - 01.2012] ANF10 BACK MONITOR(REAR TELEVISION CAMERA)-WITH; ANF10..W BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM) |
55473-75030 |
US $32.32 |
||
|
55538
|
55538
55567-75010
Retainer,glove Compartment
[07.2009 - 01.2012] ANF10 |
55567-75010 |
— | ||
|
55539B
|
55539B
55539-48050 Cover, Spare Switch Hole, No.2SPARE SWITCH HOLE [07.2009 - 01.2012] ANF10 |
55539-48050 |
US $7.13 |
||
|
55539C
|
55539C
55539-75040-A0 Cover, Spare Switch HoleSPARE SWITCH HOLE [07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
55539-75040-A0 |
US $10.34 |
||
|
55539C
|
55539C
55539-75040-A1 Cover, Spare Switch HoleSPARE SWITCH HOLE [07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
55539-75040-A1 |
US $11.50 |
||
|
55539C
|
55539C
55539-75040-C0 Cover, Spare Switch HoleSPARE SWITCH HOLE [07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
55539-75040-C0 |
US $10.87 |
||
|
55539E
|
55539E
55539-48040 Cover, Spare Switch HoleSPARE SWITCH HOLE [07.2009 - 01.2012] ANF10; ANF10..V CANADA SPEC; ANF10..W CANADA SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH; ANF10 BACK MONITOR(REAR TELEVISION CAMERA)-WITH; ANF10 BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM) |
55539-48040 |
US $6.26 |
||
|
55539F
|
55539F
55539-48040 Cover, Spare Switch HoleSPARE SWITCH HOLE [07.2009 - 01.2012] ANF10..V; ANF10..W SUN SHADE-WITHOUT |
55539-48040 |
US $6.26 |
||
|
55539G
|
55539G
55539-48040 Cover, Spare Switch HoleSPARE SWITCH HOLE [07.2009 - 01.2012] ANF10; ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM |
55539-48040 |
US $6.26 |
||
|
55550
|
55550
55550-75020-A0
Door Assy, Glove Compartment
[07.2009 - 01.2010] ANF10 IVORY,TRIM05 |
55550-75020-A0 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-75022-A0
Door Assy, Glove Compartment
[07.2009 - 01.2010] ANF10 IVORY,TRIM05 |
55550-75022-A0 |
— | ||
|
55550
|
55550
55550-75020-A1
Door Assy, Glove Compartment
[07.2009 - 01.2010] ANF10 WATER WHITE,TRIM06 |
55550-75020-A1 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-75022-A1
Door Assy, Glove Compartment
[07.2009 - 01.2010] ANF10 WATER WHITE,TRIM06 |
55550-75022-A1 |
— | ||
|
55550
|
55550
55550-75020-C0
Door Assy, Glove Compartment
[07.2009 - 01.2010] ANF10 BLACK,TRIM2# |
55550-75020-C0 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-75022-C0
Door Assy, Glove Compartment
[07.2009 - 01.2010] ANF10 BLACK,TRIM2# |
55550-75022-C0 |
— | ||
|
55550
|
55550
55550-75021-A0
Door Assy, Glove Compartment
[02.2010 - 11.2010] ANF10 IVORY,TRIM05 |
55550-75021-A0 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-75022-A0
Door Assy, Glove Compartment
[02.2010 - 11.2010] ANF10 IVORY,TRIM05 |
55550-75022-A0 |
— | ||
|
55550
|
55550
55550-75021-A1
Door Assy, Glove Compartment
[02.2010 - 11.2010] ANF10 WATER WHITE,TRIM06 |
55550-75021-A1 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-75022-A1
Door Assy, Glove Compartment
[02.2010 - 11.2010] ANF10 WATER WHITE,TRIM06 |
55550-75022-A1 |
— | ||
|
55550
|
55550
55550-75021-C0
Door Assy, Glove Compartment
[02.2010 - 11.2010] ANF10 BLACK,TRIM2# |
55550-75021-C0 |
— | ||
| replacement | |||||
|
55550
|
55550
55550-75022-C0
Door Assy, Glove Compartment
[02.2010 - 11.2010] ANF10 BLACK,TRIM2# |
55550-75022-C0 |
— | ||
|
55550
|
55550
55550-75022-A0
Door Assy, Glove Compartment
[12.2010 - 01.2012] ANF10 IVORY,TRIM05 |
55550-75022-A0 |
— | ||
|
55550
|
55550
55550-75022-A1
Door Assy, Glove Compartment
[12.2010 - 01.2012] ANF10 WATER WHITE,TRIM06 |
55550-75022-A1 |
— | ||
|
55550
|
55550
55550-75022-C0
Door Assy, Glove Compartment
[12.2010 - 01.2012] ANF10 BLACK,TRIM2# |
55550-75022-C0 |
— | ||
|
55557A
|
55557A
55557-53030 Cushion(For Glove Compartment Door)[07.2009 - 02.2010] ANF10 |
55557-53030 |
US $1.85 |
||
|
55557A
|
55557A
90541-04002 Cushion(For Glove Compartment)[02.2010 - 01.2012] ANF10 |
90541-04002 |
US $2.91 |
||
|
55560A
|
55560A
55560-75020-A0
Lock Assy, Glove Compartment Door
[07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
55560-75020-A0 |
— | ||
|
55560A
|
55560A
55560-75020-A1
Lock Assy, Glove Compartment Door
[07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
55560-75020-A1 |
— | ||
|
55560A
|
55560A
55560-75020-C0
Lock Assy, Glove Compartment Door
[07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
55560-75020-C0 |
— | ||
|
55562B
|
55562B
55562-10010 Link, Glove Compartment Door Lock[07.2009 - 01.2012] ANF10 |
55562-10010 |
US $1.28 |
||
|
55569
|
55569
55569-75020-A0
Cover, Glove Compartment Door Lock
[07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
55569-75020-A0 |
— | ||
|
55569
|
55569
55569-75020-A1
Cover, Glove Compartment Door Lock
[07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
55569-75020-A1 |
— | ||
|
55569
|
55569
55569-75020-C0
Cover, Glove Compartment Door Lock
[07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
55569-75020-C0 |
— | ||
|
55606
|
55606
55606-75020
Cover Sub-Assy, Instrument Panel Under, No.1
[07.2009 - 01.2012] ANF10 |
55606-75020 |
— | ||
|
55607
|
55607
55607-75020
Cover Sub-Assy, Instrument Panel Under, No.2
[07.2009 - 01.2012] ANF10 |
55607-75020 |
— | ||
|
55650
|
55650
55650-75020-C0
Register Assy, Instrument Panel, No.1
[07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55650-75020-C0 |
— | ||
|
55650
|
55650
55650-75020-E0
Register Assy, Instrument Panel, No.1
[07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05,06 |
55650-75020-E0 |
— | ||
|
55660
|
55660
55660-75020-C0
Register Assy, Instrument Panel, No.2
[07.2009 - 01.2012] ANF10 BLACK,TRIM06,2# |
55660-75020-C0 |
— | ||
|
55660
|
55660
55660-75020-E0
Register Assy, Instrument Panel, No.2
[07.2009 - 01.2012] ANF10 DK. BROWN,TRIM05,06 |
55660-75020-E0 |
— | ||
|
55670A
|
55670A
55670-75020 Register Assy, Instrument Panel, CenterINSTRUMENT PANEL, CENTER [07.2009 - 01.2012] ANF10 |
55670-75020 |
US $152.88 |
||
|
58629C
|
58629C
58629-75010
Mat, Instrument Cluster Finish Panel
[07.2009 - 01.2012] ANF10 |
58629-75010 |
— | ||
|
58811F
|
58811F
58810-75010-C1
Box, Consol
[07.2009 - 01.2012] ANF10 BLACK/WATER WHITE,TRIM06 |
58810-75010-C1 |
— | ||
|
58811F
|
58811F
58810-75010-C2
Box, Consol
[07.2009 - 01.2012] ANF10 BLACK/BLACK,TRIM2# |
58810-75010-C2 |
— | ||
|
58811F
|
58811F
58810-75010-E1
Box, Consol
[07.2009 - 01.2012] ANF10 DK. BROWN/IVORY,TRIM05 |
58810-75010-E1 |
— | ||
|
58959E
|
58959E
58959-60060 Cushion, Instrument Panel[07.2009 - 01.2012] ANF10 |
58959-60060 |
from US $1.44 |
||
|
58995C
|
58995C
58995-75040 Bracket, Console Box Mounting, No.1CONSOLE BOX MOUNTING, NO.1 [07.2009 - 01.2012] ANF10 |
58995-75040 |
US $35.67 |
||
|
58997A
|
58997A
58997-75010 Bracket, Console Box Mounting, No.3CONSOLE BOX MOUNTING, NO.3 [07.2009 - 01.2012] ANF10 |
58997-75010 |
US $32.91 |
||
|
73900
|
73900
73900-75020-A0
Air Bag Assy, Instrument Panel, Lower No.1
[07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
73900-75020-A0 |
— | ||
|
73900
|
73900
73900-75020-A1
Air Bag Assy, Instrument Panel, Lower No.1
[07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
73900-75020-A1 |
— | ||
|
73900
|
73900
73900-75020-C0 Air Bag Assy, Instrument Panel, Lower No.1INSTRUMENT PANEL, LOWER NO.1 [07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
73900-75020-C0 |
US $419.33 |
||
|
73990
|
73990
73990-75010-A0
Air Bag Assy, Instrument Panel, Lower No.2
[07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
73990-75010-A0 |
— | ||
|
73990
|
73990
73990-75010-A1
Air Bag Assy, Instrument Panel, Lower No.2
[07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06 |
73990-75010-A1 |
— | ||
|
73990
|
73990
73990-75010-C0
Air Bag Assy, Instrument Panel, Lower No.2
[07.2009 - 01.2012] ANF10 BLACK,TRIM2# |
73990-75010-C0 |
— | ||
|
6777158020
|
6777158020
67771-58020 Clip(For Deck Boad) |
67771-58020 |
US $1.60 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.84 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9046805138
|
9046805138
90468-05138 Clip, Instrument Panel |
90468-05138 |
from US $1.07 |
||
|
9153560816
|
9153560816
91535-60816 BOLT WWASHER |
91535-60816 |
US $1.05 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
