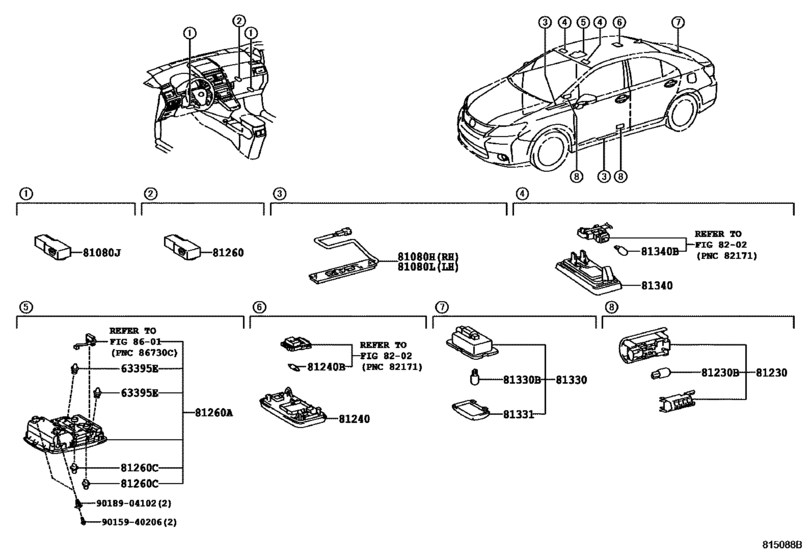

Interior Lamp ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- ANF10
- grade
- V
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- To
- 01.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63395E
|
63395E
90467-10167 Clip(For Rear Floor Finish Plate)[07.2009 - 01.2012] ANF10 |
90467-10167 |
from US $1.01 |
||
|
81080H
|
81080H
81080-75020 Lamp Assy, Interior Illumination, No.1 RhINTERIOR ILLUMINATION, NO.1 RH [07.2009 - 01.2012] ANF10..V TOURING PACKAGE |
81080-75020 |
US $64.06 |
||
|
81080J
|
81080J
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[07.2009 - 01.2012] ANF10 |
81080-22040 |
from US $10.90 |
||
|
81080L
|
81080L
81090-75020 Lamp Assy, Interior Illumination, No.1 LhINTERIOR ILLUMINATION, NO.1 LH [07.2009 - 01.2012] ANF10..V TOURING PACKAGE |
81090-75020 |
US $64.06 |
||
|
81230
|
81230
81230-47010
Lamp Assy, Courtesy
[07.2009 - 01.2012] ANF10 |
81230-47010 |
— | ||
| replacement | |||||
|
81230
|
81230
81230-30200 Lamp Assy, Courtesy[07.2009 - 01.2012] ANF10 |
81230-30200 |
from US $14.02 |
||
|
81230B
|
81230B
90981-12010 Bulb (For Lower Back Finish Panel Emblem)[07.2009 - 01.2012] ANF10 12V 5W |
90981-12010 |
from US $1.76 |
||
|
81240
|
81240
81240-60070-A1 Lamp Assy, Room, No.1ROOM, NO.1 [07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
81240-60070-A1 |
US $33.20 |
||
|
81240
|
81240
81240-60070-A2 Lamp Assy, Room, No.1ROOM, NO.1 [07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06,2# |
81240-60070-A2 |
US $33.20 |
||
|
81240B
|
81240B
90981-14011 Bulb, Room Lamp, No.1[07.2009 - 01.2012] ANF10 12V 8W |
90981-14011 |
from US $2.88 |
||
|
81260
|
81260
81080-22040 Lamp Assy, Interior Illumination, No.1 Rh[07.2009 - 01.2012] ANF10 |
81080-22040 |
from US $10.90 |
||
|
81260A
|
81260A
81260-75030-A0
Lamp Assy, Map
[07.2009 - 01.2012] ANF10..V CANADA SPEC,IVORY,TRIM05; ANF10..W CANADA SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH,IVORY,TRIM05; ANF10..V USA POSSESSIONS SPEC(GUAM,PUERTO RICO),IVORY,TRIM05; ANF10..W USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&BACK MONITOR( |
81260-75030-A0 |
— | ||
|
81260A
|
81260A
81260-75030-A1
Lamp Assy, Map
[07.2009 - 01.2012] ANF10..V CANADA SPEC,WATER WHITE,TRIM06,2#; ANF10..W CANADA SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH,WATER WHITE,TRIM06,2#; ANF10..V USA POSSESSIONS SPEC(GUAM,PUERTO RICO),WATER WHITE,TRIM06,2#; ANF10..W USA POSSESSIONS SPEC(GUAM |
81260-75030-A1 |
— | ||
|
81260A
|
81260A
81260-75040-A0
Lamp Assy, Map
[07.2009 - 10.2011] ANF10..V CANADA SPEC&HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,IVORY,TRIM05; ANF10..W CANADA SPEC&HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM&BACK MONITOR(REAR TE LEVISION CAMERA)-WITH,IVORY,TRIM05; ANF10..V USA POSSESSIO |
81260-75040-A0 |
— | ||
|
81260A
|
81260A
81260-75040-A1
Lamp Assy, Map
[07.2009 - 10.2011] ANF10..V CANADA SPEC&HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,WATER WHITE,TRIM06,2 #; ANF10..W CANADA SPEC&HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM&BACK MONITOR(REAR TE LEVISION CAMERA)-WITH,WATER WHITE,TRIM06,2#; ANF |
81260-75040-A1 |
— | ||
|
81260A
|
81260A
81260-75050-A0
Lamp Assy, Map
[07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
81260-75050-A0 |
— | ||
|
81260A
|
81260A
81260-75050-A1
Lamp Assy, Map
[07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06,2# |
81260-75050-A1 |
— | ||
|
81260A
|
81260A
81260-75060-A0
Lamp Assy, Map
[07.2009 - 10.2011] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,IVORY,TRIM05 |
81260-75060-A0 |
— | ||
|
81260A
|
81260A
81260-75060-A1
Lamp Assy, Map
[07.2009 - 10.2011] ANF10 HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM,WATER WHITE,TRIM06,2# |
81260-75060-A1 |
— | ||
|
81260C
|
81260C
81936-12150 Bulb(For Map Lamp)[07.2009 - 01.2012] ANF10 12V 8W |
81936-12150 |
US $9.12 |
||
|
81330
|
81330
81330-50021 Lamp Assy, Luggage Compartment, No.1[07.2009 - 01.2012] ANF10 |
81330-50021 |
from US $15.97 |
||
|
81330B
|
81330B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[07.2009 - 01.2012] ANF10 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81331
|
81331
81331-50010 Lens, Luggage Compartment Lamp[07.2009 - 01.2012] ANF10 |
81331-50010 |
US $8.48 |
||
|
81340
|
81340
81340-30100-A4 Lamp Assy, VanityVANITY [07.2009 - 01.2012] ANF10 IVORY,TRIM05 |
81340-30100-A4 |
US $22.57 |
||
|
81340
|
81340
81340-30100-A6 Lamp Assy, VanityVANITY [07.2009 - 01.2012] ANF10 WATER WHITE,TRIM06,2# |
81340-30100-A6 |
US $24.90 |
||
|
81340B
|
81340B
90981-11062 Bulb, Room Lamp, No.1[07.2009 - 01.2012] ANF10 12V 8W |
90981-11062 |
from US $2.64 |
||
|
9015940206
|
9015940206
90159-40206 SCREW, W/WASHER TAPP |
90159-40206 |
US $1.12 |
||
|
9018904102
|
9018904102
90189-04102 GROMMET |
90189-04102 |
from US $1.19 |
||
