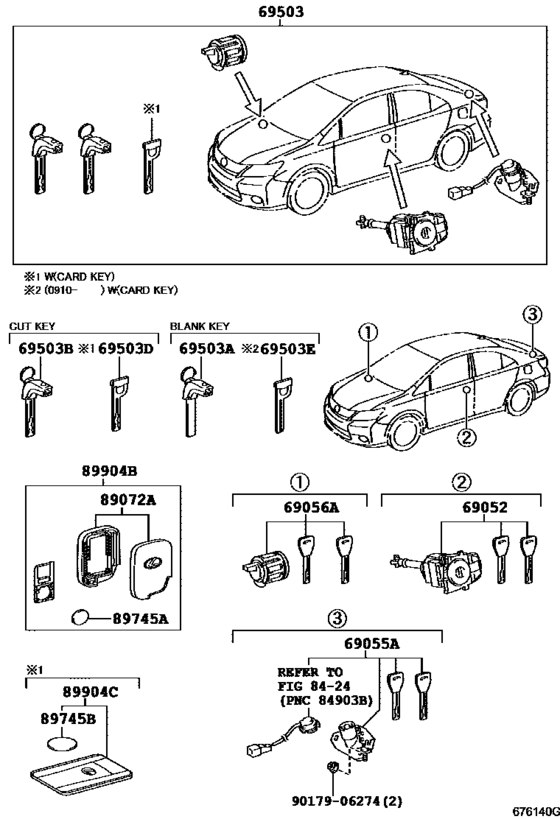

Lock Cylinder Set ([07.2009 - ] (0907- )) Diagram Toyota LEXUS HS250H
- Year
- 2009 - 2012
- Sales region
- U.S.A.
- Frame
- ANF10
- grade
- V
- ENGINE
- 2AZFXE
- TRANSMISSION
- ATM
- From
- 07.2009
- To
- 01.2012
- Gear Shift Type
- CVFC
- Vehicle Model
- HS250 Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69052
|
69052
69052-75010
Cylinder & Key Set, Door Lock, Lh
[07.2009 - 01.2012] ANF10 |
69052-75010 |
— | ||
|
69055A
|
69055A
69055-53050 Cylinder & Key Set, Luggage Compartment LockLUGGAGE COMPARTMENT LOCK [07.2009 - 01.2012] ANF10 |
69055-53050 |
US $116.48 |
||
|
69056A
|
69056A
69056-50160 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [07.2009 - 01.2012] ANF10 |
69056-50160 |
from US $94.64 |
||
|
69503
|
69503
69005-75030
Cylinder Set, Lock
[07.2009 - 01.2012] ANF10 |
69005-75030 |
— | ||
|
69503
|
69503
69005-75040
Cylinder Set, Lock
[07.2009 - 09.2009] ANF10 ELECTRICAL KEY(2) & CARD TYPE(1) |
69005-75040 |
— | ||
|
69503
|
69503
69005-75041
Cylinder Set, Lock
[10.2009 - 01.2012] ANF10 ELECTRICAL KEY(2) & CARD TYPE(1) |
69005-75041 |
— | ||
|
69503A
|
69503A
69515-50260 Key, BlankBLANK [07.2009 - 01.2012] ANF10 BLANK KEY |
69515-50260 |
from US $70.24 |
||
|
69503B
|
69503B
69515-50240 Key, Cut[07.2009 - 01.2012] ANF10 MASTER KEY |
69515-50240 |
US $115.44 |
||
|
69503D
|
69503D
69515-30330 Key, Cut(Card Key)[10.2009 - 01.2012] ANF10 MASTER KEY,ELECTRICAL KEY(2) & CARD TYPE(1) |
69515-30330 |
US $105.08 |
||
|
69503D
|
69503D
69515-50220 Key, Cut(Card Key)[07.2009 - 09.2009] ANF10 MASTER KEY,ELECTRICAL KEY(2) & CARD TYPE(1) |
69515-50220 |
US $115.44 |
||
|
69503E
|
69503E
69515-30350 Key, Blank(Card Key)BLANK(CARD KEY) [10.2009 - 01.2012] ANF10 MASTER KEY |
69515-30350 |
US $87.36 |
||
|
89072A
|
89072A
89072-75020
Housing Set, Door Control Transmitter
[07.2009 - 06.2011] ANF10 |
89072-75020 |
— | ||
|
89745A
|
89745A
89745-52020 Battery, Transmitter[07.2009 - 01.2012] ANF10 |
89745-52020 |
from US $7.04 |
||
|
89745B
|
89745B
89745-50030 Battery, Transmitter(Card Key)[07.2009 - 01.2012] ANF10 ELECTRICAL KEY(2) & CARD TYPE(1) |
89745-50030 |
from US $13.12 |
||
|
89904B
|
89904B
89904-75030
Transmitter Sub-Assy, Electrical Key
[07.2009 - 06.2011] ANF10 |
89904-75030 |
— | ||
|
89904B
|
89904B
89904-75110
Transmitter Sub-Assy, Electrical Key
[06.2011 - 07.2011] ANF10 |
89904-75110 |
— | ||
|
89904C
|
89904C
89904-76130
Transmitter Sub-Assy, Electrical Key(Card Key)
[06.2011 - 07.2011] ANF10 ELECTRICAL KEY(2) & CARD TYPE(1) |
89904-76130 |
— | ||
|
89904C
|
89904C
89994-48141
Transmitter Sub-Assy, Electrical Key(Card Key)
[07.2009 - 07.2010] ANF10 ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48141 |
— | ||
| replacement | |||||
|
89904C
|
89904C
89994-48142
Transmitter Sub-Assy, Electrical Key(Card Key)
[07.2009 - 07.2010] ANF10 ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48142 |
— | ||
|
89904C
|
89904C
89994-48142
Transmitter Sub-Assy, Electrical Key(Card Key)
[08.2010 - 06.2011] ANF10 ELECTRICAL KEY(2) & CARD TYPE(1) |
89994-48142 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
