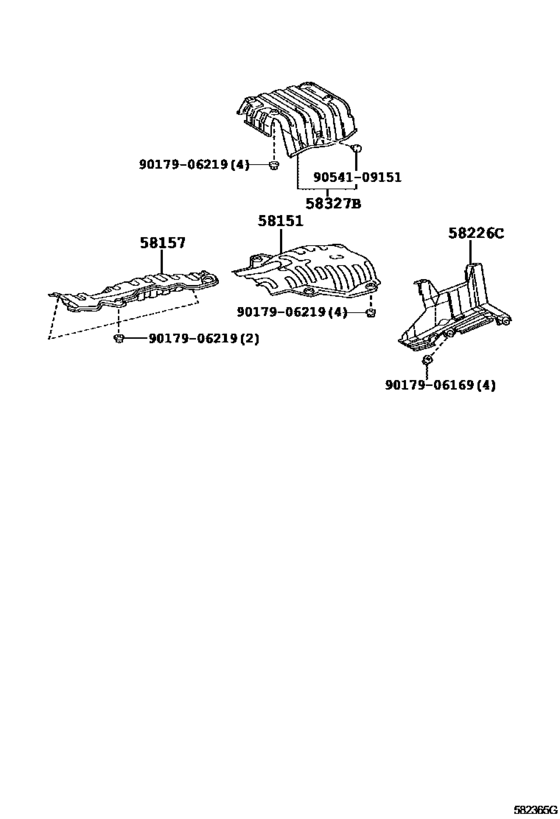

Floor Insulator ([11.2005 - ] (0511- )ALE20) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ALE20
- grade
- LUX
- body
- SED
- ENGINE
- 2ADFHV
- TRANSMISSION
- MTM
- Model
- IS220D
- From
- 11.2005
- To
- 08.2012
- Vehicle Model
- IS220D
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58151
|
58151
58151-30130 Insulator, Front Floor Heat, No.1[08.2005 - 08.2008] ALE20,GSE20 |
58151-30130 |
from US $42.28 |
||
|
58157
|
58157
58157-30071 Insulator, Front Floor Heat, No.5[08.2005 - 08.2008] ALE20,GSE20 |
58157-30071 |
US $37.42 |
||
| replacement | |||||
|
58157
|
58157
58157-30073 Insulator, Front Floor Heat, No.5[08.2005 - 08.2008] ALE20,GSE20 |
58157-30073 |
US $24.81 |
||
|
58157
|
58157
58157-30072 Insulator, Front Floor Heat, No.5[04.2010 - 08.2010] ALE20,GSE20 |
58157-30072 |
US $31.30 |
||
| replacement | |||||
|
58157
|
58157
58157-30073 Insulator, Front Floor Heat, No.5[04.2010 - 08.2010] ALE20,GSE20 |
58157-30073 |
US $24.81 |
||
|
58157
|
58157
58157-30073 Insulator, Front Floor Heat, No.5[11.2011 -] ALE20,GSE2# |
58157-30073 |
US $24.81 |
||
|
58226C
|
58226C
58226-53010 Plate, Air Guide, Outside Rh[08.2005 - 08.2008] ALE20,GSE20 |
58226-53010 |
US $49.62 |
||
|
58327B
|
58327B
58327-53010 Insulator, Main Muffler Heat[08.2005 - 09.2007] ALE20,GSE20 |
58327-53010 |
US $57.95 |
||
| replacement | |||||
|
58327B
|
58327B
58327-53020 Insulator, Main Muffler Heat[08.2005 - 09.2007] ALE20,GSE20 |
58327-53020 |
US $80.40 |
||
|
58327B
|
58327B
58327-53020 Insulator, Main Muffler Heat[10.2007 - 08.2008] ALE20,GSE20 |
58327-53020 |
US $80.40 |
||
|
9017906169
|
9017906169
90179-06169 Nut |
90179-06169 |
from US $1.05 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
from US $1.05 |
||
| replacement | |||||
|
9017906219
|
9017906219
90182-A0005 Nut |
90182-A0005 |
US $2.22 |
||
|
9054109151
|
9054109151
90541-09151 Cushion(For Luggage Compartment Door Panel) |
90541-09151 |
from US $3.84 |
||
