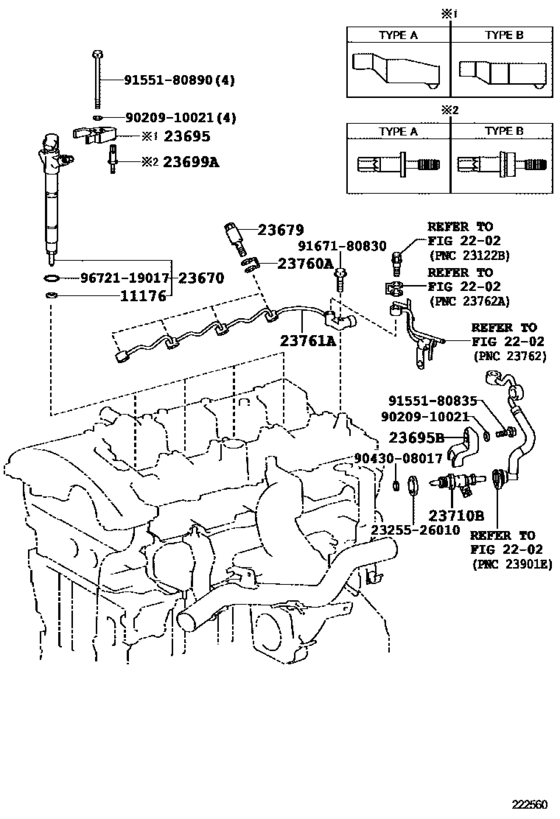

Injection Nozzle ([08.2010 - ] (1008- )2AD#) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ALE20
- grade
- LUX
- body
- SED
- ENGINE
- 2ADFHV
- TRANSMISSION
- MTM
- Model
- IS220D
- From
- 11.2005
- To
- 08.2012
- Vehicle Model
- IS220D
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11176
|
11176
11176-26010
Seat, Injection Nozzle
[11.2005 - 08.2008] 2ADFHV..ALE20 |
11176-26010 |
— | ||
| replacement | |||||
|
11176
|
11176
11176-51010 Seat, Injection NozzleINJECTION NOZZLE [11.2005 - 08.2008] 2ADFHV..ALE20 |
11176-51010 |
from US $3.88 |
||
|
11176
|
11176
11176-26020 Seat, Injection NozzleINJECTION NOZZLE [08.2010 - 08.2012] 2AD#..ALE20 |
11176-26020 |
from US $3.35 |
||
|
11176
|
11176
11176-26030
Seat, Injection Nozzle
[11.2008 - 05.2009] 2ADFHV..ALE20 |
11176-26030 |
— | ||
| replacement | |||||
|
11176
|
11176
11176-51010 Seat, Injection NozzleINJECTION NOZZLE [11.2008 - 05.2009] 2ADFHV..ALE20 |
11176-51010 |
from US $3.88 |
||
|
11176
|
11176
11176-51010 Seat, Injection NozzleINJECTION NOZZLE [05.2009 - 08.2010] 2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO |
11176-51010 |
from US $3.88 |
||
|
23670
|
23670
23670-29055
Injector Assy
[11.2005 - 10.2007] 2ADFHV..ALE20 |
23670-29055 |
— | ||
| replacement | |||||
|
23670
|
23670
23670-29105 Injector Assy[11.2005 - 10.2007] 2ADFHV..ALE20 |
23670-29105 |
US $946.63 |
||
|
23670
|
23670
23670-29105 Injector Assy[10.2007 - 08.2008] 2ADFHV..ALE20 |
23670-29105 |
US $946.63 |
||
|
23670
|
23670
23670-29135 Injector Assy[08.2010 - 08.2012] 2ADFHV..ALE20 |
23670-29135 |
US $896.90 |
||
| replacement | |||||
|
23670
|
23670
23670-29136
Injector Assy
[08.2010 - 08.2012] 2ADFHV..ALE20 |
23670-29136 |
— | ||
|
23679
|
23679
23679-26010
Screw, Injector Follow
[11.2005 - 08.2008] 2ADFHV..ALE20 |
23679-26010 |
— | ||
| replacement | |||||
|
23679
|
23679
23679-26020 Screw, Injector FollowINJECTOR FOLLOW [11.2005 - 08.2008] 2ADFHV..ALE20 |
23679-26020 |
US $4.02 |
||
|
23679
|
23679
23679-26020 Screw, Injector FollowINJECTOR FOLLOW [11.2009 - 08.2010] 2ADFHV..ALE20 |
23679-26020 |
US $4.02 |
||
|
23695
|
23695
23695-0R020
Clamp, Nozzle Holder, No.1
[11.2005 - 08.2008] 2ADFHV..ALE20 |
23695-0R020 |
— | ||
| replacement | |||||
|
23695
|
23695
23695-0R021 Clamp, Nozzle Holder, No.1NOZZLE HOLDER, NO.1 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23695-0R021 |
US $12.23 |
||
|
23695
|
23695
23695-0R021 Clamp, Nozzle Holder, No.1NOZZLE HOLDER, NO.1 [08.2008 - 08.2010] 2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO |
23695-0R021 |
US $12.23 |
||
|
23695
|
23695
23695-26020
Clamp, Nozzle Holder, No.1
[08.2010 - 08.2012] 2AD#..ALE20 TYPE B:REFER ILLUST. |
23695-26020 |
— | ||
|
23695B
|
23695B
23695-26011 Clamp, Nozzle Holder, No.2NOZZLE HOLDER, NO.2 [11.2005 - 08.2008] 2ADFHV..ALE20 |
23695-26011 |
US $10.77 |
||
|
23699A
|
23699A
23699-26021 Seat, Nozzle Holder ClampNOZZLE HOLDER CLAMP [11.2005 - 08.2008] 2ADFHV..ALE20 |
23699-26021 |
US $4.22 |
||
|
23699A
|
23699A
23699-26030
Seat, Nozzle Holder Clamp
[08.2010 - 08.2012] 2AD#..ALE20 TYPE B:REFER ILLUST. |
23699-26030 |
— | ||
|
23710B
|
23710B
23710-26010
Injector Assy, Exhaust Fuel Addition
[11.2005 - 04.2007] 2ADFHV..ALE20 |
23710-26010 |
— | ||
| replacement | |||||
|
23710B
|
23710B
23710-26012 Injector Assy, Exhaust Fuel Addition[11.2005 - 04.2007] 2ADFHV..ALE20 |
23710-26012 |
US $331.80 |
||
|
23710B
|
23710B
23710-26011
Injector Assy, Exhaust Fuel Addition
[04.2007 - 08.2008] 2ADFHV..ALE20 |
23710-26011 |
— | ||
| replacement | |||||
|
23710B
|
23710B
23710-26012 Injector Assy, Exhaust Fuel Addition[04.2007 - 08.2008] 2ADFHV..ALE20 |
23710-26012 |
US $331.80 |
||
|
23710B
|
23710B
23710-26012 Injector Assy, Exhaust Fuel Addition[02.2010 - 08.2010] 2ADFHV..ALE20 |
23710-26012 |
US $331.80 |
||
|
23760A
|
23760A
90904-30008 Gasket[11.2005 - 08.2008] 2ADFHV..ALE20 |
90904-30008 |
from US $5.17 |
||
|
23761A
|
23761A
23761-0R030
Pipe, Nozzle Leakage, No.1
[11.2005 - 04.2007] 2ADFHV..ALE20 |
23761-0R030 |
— | ||
|
23761A
|
23761A
23761-0R040
Pipe, Nozzle Leakage, No.1
[08.2010 - 08.2012] 2AD#..ALE20 (L) |
23761-0R040 |
— | ||
|
23761A
|
23761A
23761-26020 Pipe, Nozzle Leakage, No.1NOZZLE LEAKAGE, NO.1 [04.2007 - 08.2008] 2ADFHV..ALE20 (J) |
23761-26020 |
US $120.85 |
||
| replacement | |||||
|
23761A
|
23761A
23761-26021 Pipe, Nozzle Leakage, No.1NOZZLE LEAKAGE, NO.1 [04.2007 - 08.2008] 2ADFHV..ALE20 (J) |
23761-26021 |
US $100.46 |
||
|
23761A
|
23761A
23761-26021 Pipe, Nozzle Leakage, No.1NOZZLE LEAKAGE, NO.1 [03.2009 - 08.2010] 2ADFHV..ALE20 |
23761-26021 |
US $100.46 |
||
|
23761A
|
23761A
23761-26030
Pipe, Nozzle Leakage, No.1
[08.2010 - 08.2012] 2AD#..ALE20 (J) |
23761-26030 |
— | ||
|
2325526010
|
2325526010
23255-26010
Seal, Fuel Injector
|
23255-26010 |
— | ||
|
9020910021
|
9020910021
90209-10021 WASHER |
90209-10021 |
from US $0.72 |
||
|
9043008017
|
9043008017
90430-08017 Gasket(For Injection Nozzle Seat) |
90430-08017 |
from US $0.72 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $1.28 |
||
|
9155180890
|
9155180890
91551-80890 BOLT FLANGE |
91551-80890 |
US $1.92 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.28 |
||
|
9672119017
|
9672119017
96721-19017 O-Ring |
96721-19017 |
from US $1.99 |
||
