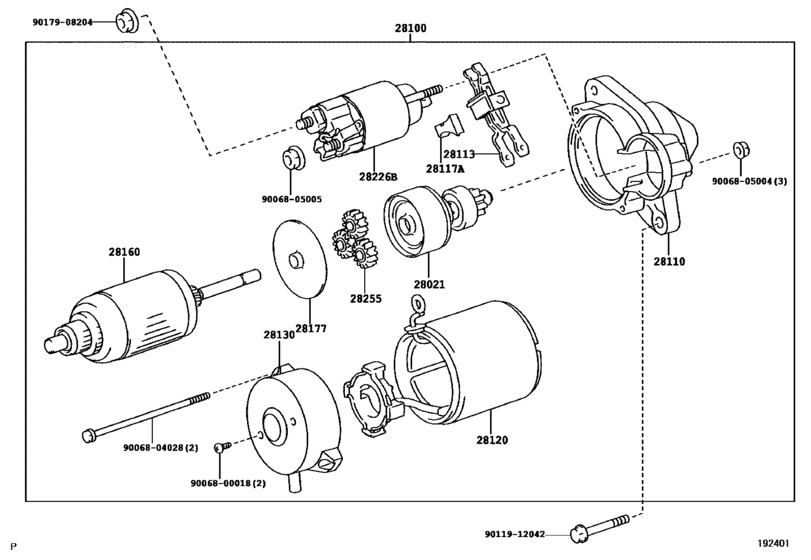

Starter ([11.2005 - 04.2007] 12V 2.0KW (0511-0704)2ADFHV) Diagram Toyota LEXUS IS
- Year
- 2005 - 2012
- Sales region
- General
- Frame
- ALE20
- grade
- LUX
- body
- SED
- ENGINE
- 2ADFHV
- TRANSMISSION
- MTM
- Model
- IS220D
- From
- 11.2005
- To
- 08.2012
- Vehicle Model
- IS220D
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-0G040
Clutch Sub-Assy, Starter Center Bearing
[11.2005 - 04.2007] 2ADFHV..ALE20 |
28021-0G040 |
— | ||
|
28021
|
28021
28021-0R010
Clutch Sub-Assy, Starter Center Bearing
[04.2007 - 08.2008] 2ADFHV..ALE20 |
28021-0R010 |
— | ||
|
28100
|
28100
28100-0G040 Starter Assy[11.2005 - 04.2007] 2ADFHV..ALE20 12V 2.0KW |
28100-0G040 |
US $1,645.28 |
||
| replacement | |||||
|
28100
|
28100
28100-0R030 Starter Assy[11.2005 - 04.2007] 2ADFHV..ALE20 12V 2.0KW |
28100-0R030 |
US $1,365.73 |
||
|
28100
|
28100
28100-0R010 Starter Assy[04.2007 - 08.2008] 2ADFHV..ALE20 12V 2.0KW |
28100-0R010 |
US $1,137.14 |
||
| replacement | |||||
|
28100
|
28100
28100-0R030 Starter Assy[04.2007 - 08.2008] 2ADFHV..ALE20 12V 2.0KW |
28100-0R030 |
US $1,365.73 |
||
|
28110
|
28110
28110-0G040
Housing Assy, Starter Drive
[11.2005 - 04.2007] 2ADFHV..ALE20 |
28110-0G040 |
— | ||
|
28110
|
28110
28110-0R010
Housing Assy, Starter Drive
[04.2007 - 08.2008] 2ADFHV..ALE20 |
28110-0R010 |
— | ||
|
28113
|
28113
28113-0G020
Lever, Starter Pinion Drive
[11.2005 - 04.2007] 2ADFHV..ALE20 |
28113-0G020 |
— | ||
|
28117A
|
28117A
28117-0G020
Seal, Rubber
[11.2005 - 04.2007] 2ADFHV..ALE20 |
28117-0G020 |
— | ||
|
28120
|
28120
28120-0G020
Yoke Assy, Starter
[11.2005 - 04.2007] 2ADFHV..ALE20 |
28120-0G020 |
— | ||
|
28120
|
28120
28120-38020
Yoke Assy, Starter
[04.2007 - 08.2008] 2ADFHV..ALE20 |
28120-38020 |
— | ||
|
28130
|
28130
28130-0G040
Frame Assy, Starter Commutator End
[11.2005 - 04.2007] 2ADFHV..ALE20 |
28130-0G040 |
— | ||
|
28130
|
28130
28130-0R010
Frame Assy, Starter Commutator End
[04.2007 - 08.2008] 2ADFHV..ALE20 |
28130-0R010 |
— | ||
|
28160
|
28160
28160-0G020
Armature Assy, Starter
[11.2005 - 08.2008] 2ADFHV..ALE20 |
28160-0G020 |
— | ||
|
28177
|
28177
28177-0G020
Plate(For Starter Armature)
[11.2005 - 08.2008] 2ADFHV..ALE20 |
28177-0G020 |
— | ||
|
28226B
|
28226B
28226-0G020
Switch Assy, Magnet Starter
[11.2005 - 04.2007] 2ADFHV..ALE20 |
28226-0G020 |
— | ||
|
28255
|
28255
28255-0G040
Gear, Planet
[11.2005 - 08.2008] 2ADFHV..ALE20 |
28255-0G040 |
— | ||
|
9006800018
|
9006800018
90068-00018
New Genuine Part
|
90068-00018 |
— | ||
|
9006804028
|
9006804028
90068-04028
New Genuine Part
|
90068-04028 |
— | ||
|
9006805004
|
9006805004
90068-05004 New Genuine Part |
90068-05004 |
US $1.46 |
||
|
9006805005
|
9006805005
90068-05005
New Genuine Part
|
90068-05005 |
— | ||
|
9011912042
|
9011912042
90119-12042 Bolt(For Transaxle Case & Engine Setting) |
90119-12042 |
US $4.16 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
