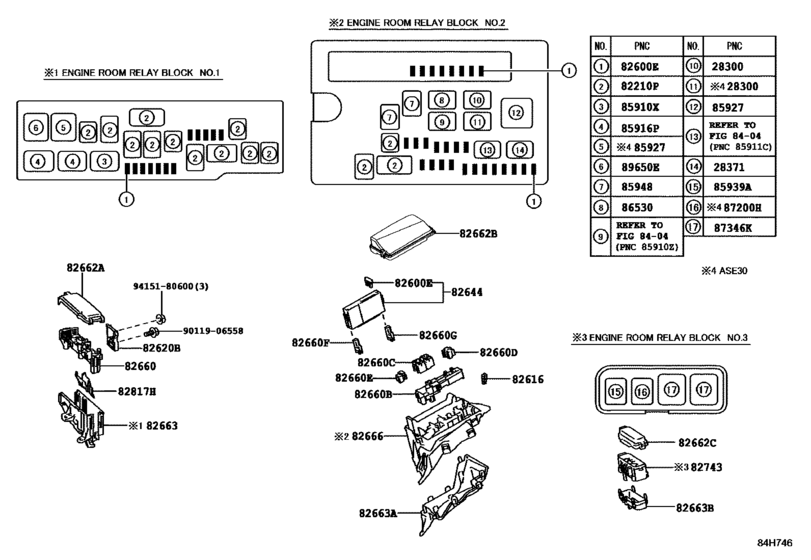

Switch & Relay & Computer ([10.2016 - ] ENGINE ROOM RELAY BLOCK (1610- )ASE30,GSE31..GCC,GEN) Diagram Toyota LEXUS IS
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- ASE30
- grade
- LUX
- body
- SED
- ENGINE
- 8ARFTS
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- IS200T
- From
- 08.2015
- Gear Shift Type
- 8FC
- No.of Doors
- 4D
- Vehicle Model
- IS200T
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2015 - 10.2016] 2GRFSE..GSE31;8ARFTS..ASE30..GCC,GEN; 8ARFTS..ASE30..ARL WITHOUT(STOP & START SYSTEM) |
28300-21020 |
from US $40.58 |
||
|
28371
|
28371
90987-02027 Relay[08.2015 - 10.2016] 2ARFSE,8ARFTS,2GRFSE..ASE30,AVE30,GSE31..ARL,GCC,GEN |
90987-02027 |
from US $31.43 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[08.2015 - 10.2016] ASE30,GSE31..ARL,GCC,GEN 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[08.2015 - 10.2016] ASE30,GSE31..ARL,GCC,GEN 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08301 Fusible Link[08.2015 - 10.2016] ASE30,GSE31..ARL,GCC,GEN 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82210P
|
82210P
90982-08302 Fusible Link[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 50A-30A-50A,FEMALE |
90982-08302 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08303 Fusible Link[08.2015 - 10.2016] ASE30,GSE31..ARL,GCC,GEN 50A-50A-50A,FEMALE |
90982-08303 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN |
82616-58010 |
from US $2.40 |
||
|
82620B
|
82620B
82620-53010 Block Assy, Fusible Link[08.2015 - 10.2016] ASE30,GSE31..GCC,GEN |
82620-53010 |
from US $19.92 |
||
|
82644
|
82644
82644-53010 Computer, Semiconductor Power Integration[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN |
82644-53010 |
from US $161.62 |
||
|
82660
|
82660
82660-24020
Block Assy, Relay, Engine Room
[08.2015 - 10.2016] ASE30,GSE31..GCC,GEN |
82660-24020 |
— | ||
|
82660B
|
82660B
82660-30C70 Block Assy, Relay[08.2015 - 10.2016] ASE30,GSE31..ARL,GCC,GEN |
82660-30C70 |
US $48.34 |
||
|
82660C
|
82660C
82660-75010 Block Assy, RelayRELAY [08.2015 - 10.2016] ASE30,GSE31..ARL,GCC,GEN |
82660-75010 |
US $11.50 |
||
|
82660D
|
82660D
82660-0H070 Block Assy, Relay[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN |
82660-0H070 |
US $6.99 |
||
|
82660E
|
82660E
82660-0C110 Block Assy, RelayRELAY [08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN |
82660-0C110 |
from US $7.13 |
||
|
82660F
|
82660F
82660-30C00 Block Assy, Relay[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN |
82660-30C00 |
US $4.66 |
||
|
82660G
|
82660G
82660-30D50 Block Assy, Relay[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN |
82660-30D50 |
US $4.66 |
||
|
82662A
|
82662A
82662-53251
Cover, Relay Block, Upper, No.1
[08.2015 - 10.2016] ASE30,GSE31..GCC,GEN |
82662-53251 |
— | ||
|
82662A
|
82662A
82662-53370
Cover, Relay Block, Upper, No.1
[10.2016 -] ASE30..LHD |
82662-53370 |
— | ||
|
82662B
|
82662B
82662-53271 Cover, Relay Block, Upper, No.2[08.2015 - 10.2016] ASE30,GSE31..ARL,GCC,GEN |
82662-53271 |
from US $24.75 |
||
|
82662B
|
82662B
82662-53380 Cover, Relay Block, Upper, No.2[10.2016 -] ASE30,GSE31 |
82662-53380 |
US $24.75 |
||
|
82662C
|
82662C
82662-53290 Cover, Relay Block, Upper, No.3[08.2015 - 10.2016] ASE30..ARL,GEN |
82662-53290 |
US $9.17 |
||
|
82662C
|
82662C
82662-53390 Cover, Relay Block, Upper, No.3[10.2016 -] ASE30;GSE31..ARL,GCC |
82662-53390 |
US $9.38 |
||
|
82663
|
82663
82663-53080
Cover, Relay Block, Lower
[08.2015 - 10.2016] ASE30,GSE31..GCC,GEN |
82663-53080 |
— | ||
|
82663A
|
82663A
82663-30320 Cover, Relay Block, Lower, No.2[08.2015 - 10.2016] ASE30,GSE31..ARL,GCC,GEN |
82663-30320 |
from US $28.83 |
||
|
82663B
|
82663B
82663-30340 Cover, Relay Block, Lower, No.2[08.2015 - 10.2016] ASE30,AVE30..ARL,GEN |
82663-30340 |
US $8.30 |
||
|
82666
|
82666
82666-30C30 Holder, Connector[08.2015 - 10.2016] ASE30,GSE31..ARL,GCC,GEN |
82666-30C30 |
from US $49.80 |
||
|
82743
|
82743
82743-30090 Block, Engine Room Relay, No.2[08.2015 - 10.2016] ASE30,AVE30..ARL,GEN |
82743-30090 |
US $19.80 |
||
|
82817H
|
82817H
82817-53B60
Protector, Wiring Harness
[08.2015 - 10.2016] ASE30,GSE31..GCC,GEN |
82817-53B60 |
— | ||
|
85910X
|
85910X
90987-02027 Relay[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GEN; ASE30,AVE30,GSE31..ARL LUXURY PACKAGE&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE); ASE30,AVE30,GSE31..ARL F SPORT&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE); ASE30,AVE30,GSE31..GEN POWER SEAT-WITH(SEAT MEMORY |
90987-02027 |
from US $31.43 |
||
|
85916P
|
85916P
90987-02027 Relay[10.2016 -] ASE30,AVE30,GSE31 |
90987-02027 |
from US $31.43 |
||
|
85927
|
85927
90987-02025 Relay[08.2015 - 10.2016] ASE30..ARL,GCC,GEN |
90987-02025 |
from US $44.54 |
||
|
85939A
|
85939A
90987-02027 Relay[10.2016 -] ASE30,AVE30;GSE31..ARL,GCC PRE-COLLISION SYSTEM-WITH |
90987-02027 |
from US $31.43 |
||
|
85948
|
85948
90987-04004 Relay, Starter Cut[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN |
90987-04004 |
from US $42.71 |
||
|
86530
|
86530
90987-02027 Relay[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN |
90987-02027 |
from US $31.43 |
||
|
87200H
|
87200H
90987-02027 Relay[08.2015 - 10.2016] ASE30..ARL; ASE30..ARL BRUNEI SPEC; ASE30..ARL INDONESIA SPEC; ASE30..ARL SINGAPORE SPEC; ASE30..ARL THAILAND SPEC; ASE30..ARL MALAYSIA SPEC; ASE30..GEN WITH(STOP & START SYSTEM); ASE30..ARL WITHOUT(STOP & START SYSTEM); ASE30..ARL TOW |
90987-02027 |
from US $31.43 |
||
|
89650E
|
89650E
90987-02025 Relay[08.2015 - 10.2016] ASE30,AVE30,GSE31..ARL,GCC,GEN |
90987-02025 |
from US $44.54 |
||
|
9011906558
|
9011906558
90119-06558 BOLT WWASHER |
90119-06558 |
US $1.12 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
