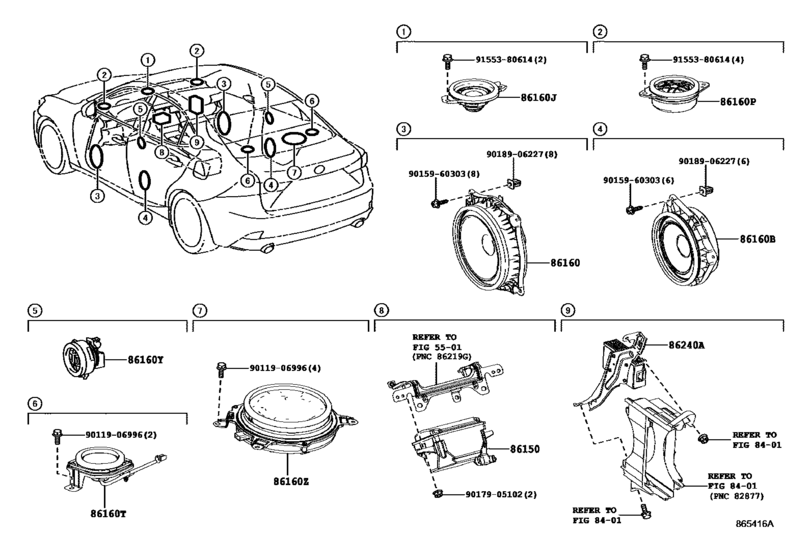

Speaker ([04.2013 - ] (1304- )LHD) Diagram Toyota LEXUS IS
- Year
- 2013 - 2018
- Sales region
- Europe
- Frame
- AVE30
- grade
- ECO
- body
- SED
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- Model
- IS300 Hybrid
- From
- 04.2013
- No.of Doors
- 4D
- Vehicle Model
- IS300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86150
|
86150
86150-53020
Speaker Assy, W/box, No.1
[04.2013 - 08.2015] AVE30; AVE30 AUDIO-WITHOUT |
86150-53020 |
— | ||
|
86160
|
86160
86160-53370 Speaker Assy, Front No.1[04.2013 - 08.2015] AVE30,GSE30 |
86160-53370 |
from US $84.45 |
||
|
86160B
|
86160B
86160-33820 Speaker Assy, Rear[04.2013 - 08.2015] AVE30,GSE30 |
86160-33820 |
US $84.45 |
||
|
86160J
|
86160J
86160-33790 Speaker Assy, Front No.3[04.2013 - 08.2015] AVE30,GSE30..LUX AUDIO-EMV & AM/FM & DVD & 8SPEAKER; AVE30..ECO EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION) |
86160-33790 |
from US $67.85 |
||
|
86160P
|
86160P
86160-33800 Speaker Assy, Front No.2[04.2013 - 08.2015] AVE30,GSE30; AVE30..ECO AUDIO LESS PACKAGE&EMV & NAVIGATION SYSTEM-WITHOUT; AVE30 AUDIO-WITHOUT; AVE30..ECO EMV & NAVIGATION SYSTEM-WITHOUT |
86160-33800 |
US $84.45 |
||
|
86160Z
|
86160Z
86160-33810 Speaker Assy, Rear No.3[04.2013 - 08.2015] AVE30,GSE30..LUX AUDIO-EMV & AM/FM & DVD & 8SPEAKER; AVE30..ECO EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION) |
86160-33810 |
US $132.87 |
||
|
86240A
|
86240A
86240-53020
Equalizer Assy,stereo Component
[04.2013 - 08.2015] AVE30..LHD; AVE30..LHD AUDIO-WITHOUT |
86240-53020 |
— | ||
|
86240A
|
86240A
86240-53040
Equalizer Assy,stereo Component
[10.2016 -] AVE30..LHD; AVE30..LHD AUDIO LESS PACKAGE |
86240-53040 |
— | ||
|
9011906996
|
9011906996
90119-06996 New Genuine Part |
90119-06996 |
US $0.73 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.80 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
