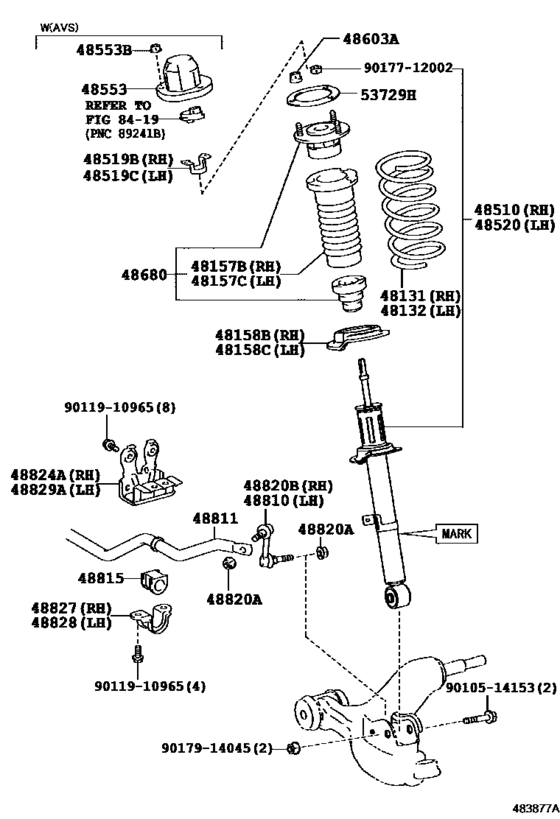

Front Spring & Shock Absorber ([04.2013 - 10.2016] (1304-1610) ; (1610-1611)CHI) Diagram Toyota LEXUS IS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- AVE30
- grade
- LUX
- body
- SED
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- IS300 Hybrid
- From
- 04.2013
- No.of Doors
- 4D
- Vehicle Model
- IS300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-53370 Spring, Front Coil, Rh[10.2016 -] AVE30 |
48131-53370 |
US $67.41 |
||
|
48131
|
48131
48131-53380 Spring, Front Coil, Rh[04.2013 - 08.2015] AVE30;GSE30..LHD; GSE30..ARL BRUNEI SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOS IS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH; GSE30..ARL BRUNEI SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,W |
48131-53380 |
US $93.69 |
||
|
48132
|
48132
48131-53370 Spring, Front Coil, Rh[10.2016 -] AVE30 |
48131-53370 |
US $67.41 |
||
|
48132
|
48132
48131-53380 Spring, Front Coil, Rh[04.2013 - 08.2015] AVE30;GSE30..LHD; GSE30..ARL BRUNEI SPEC&LUXURY PACKAGE&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOS IS)&TIRE & DISC WHEEL-225/40R18+255/35R18,SUMMER TIRE,MESH; GSE30..ARL BRUNEI SPEC&F SPORT&EXHAUST EMISSION CONTROL-EURO4,W |
48131-53380 |
US $93.69 |
||
|
48157B
|
48157B
48157-30080 Insulator, Front Coil Spring, Upper Rh[07.2014 - 08.2015] AVE30,GSE3# |
48157-30080 |
US $23.71 |
||
|
48157B
|
48157B
48157-30250 Insulator, Front Coil Spring, Upper[04.2013 - 07.2014] AVE30,GSE3# |
48157-30250 |
from US $17.94 |
||
|
48157C
|
48157C
48157-30080 Insulator, Front Coil Spring, Upper Rh[07.2014 - 08.2015] AVE30,GSE3# |
48157-30080 |
US $23.71 |
||
|
48157C
|
48157C
48157-30250 Insulator, Front Coil Spring, Upper[04.2013 - 07.2014] AVE30,GSE3# |
48157-30250 |
from US $17.94 |
||
|
48158B
|
48158B
48158-30020 Insulator, Front Coil Spring, Lower[04.2013 - 08.2015] AVE30,GSE3# |
48158-30020 |
from US $4.80 |
||
|
48158C
|
48158C
48158-30020 Insulator, Front Coil Spring, Lower[04.2013 - 08.2015] AVE30,GSE3# |
48158-30020 |
from US $4.80 |
||
|
48510
|
48510
48510-80617 Absorber Assy, Shock, Front Rh[04.2014 - 07.2014] AVE30 MARK 48510-53280 |
48510-80617 |
from US $285.30 |
||
|
48510
|
48510
48510-80621 Absorber Assy, Shock, Front Rh[04.2013 - 03.2014] AVE30 MARK 48510-53320 |
48510-80621 |
US $283.92 |
||
| replacement | |||||
|
48510
|
48510
48510-80617 Absorber Assy, Shock, Front Rh[04.2013 - 03.2014] AVE30 MARK 48510-53320 |
48510-80617 |
from US $285.30 |
||
|
48510
|
48510
48510-80622
Absorber Assy, Shock, Front Rh
[04.2013 - 07.2014] AVE30..GEN MARK 48510-53330,TAIWAN SPEC&F SPORT |
48510-80622 |
— | ||
|
48510
|
48510
48510-80710 Absorber Assy, Shock, Front Rh[07.2014 - 08.2015] AVE30,GSE3#..ARL,GCC,GEN MARK 48510-53281 |
48510-80710 |
US $297.02 |
||
|
48510
|
48510
48510-80716
Absorber Assy, Shock, Front Rh
[07.2014 - 08.2015] AVE30..GEN MARK 48510-53331,TAIWAN SPEC&F SPORT |
48510-80716 |
— | ||
|
48510
|
48510
48510-80847 Absorber Assy, Shock, Front Rh[10.2016 -] ASE30,AVE30,GSE31..ARL,GCC,GEN MARK 48510-53390 |
48510-80847 |
US $283.92 |
||
|
48510
|
48510
48510-80848
Absorber Assy, Shock, Front Rh
[10.2016 -] ASE30,AVE30..GCC,GEN MARK 48510-53400,F SPORT |
48510-80848 |
— | ||
|
48520
|
48520
48520-59705 Absorber Assy, Shock, Front Lh[04.2014 - 07.2014] AVE30 MARK 48520-53280 |
48520-59705 |
from US $269.72 |
||
|
48520
|
48520
48520-59745 Absorber Assy, Shock, Front Lh[04.2013 - 03.2014] AVE30 MARK 48520-53320 |
48520-59745 |
US $283.92 |
||
| replacement | |||||
|
48520
|
48520
48520-59705 Absorber Assy, Shock, Front Lh[04.2013 - 03.2014] AVE30 MARK 48520-53320 |
48520-59705 |
from US $269.72 |
||
|
48520
|
48520
48520-59755
Absorber Assy, Shock, Front Lh
[04.2013 - 07.2014] AVE30..GEN MARK 48520-53330,TAIWAN SPEC&F SPORT |
48520-59755 |
— | ||
|
48520
|
48520
48520-59805 Absorber Assy, Shock, Front Lh[07.2014 - 08.2015] AVE30,GSE3#..ARL,GCC,GEN MARK 48520-53281 |
48520-59805 |
US $297.02 |
||
|
48520
|
48520
48520-59865
Absorber Assy, Shock, Front Lh
[07.2014 - 08.2015] AVE30..GEN MARK 48520-53331,TAIWAN SPEC&F SPORT |
48520-59865 |
— | ||
|
48520
|
48520
48520-80520 Absorber Assy, Shock, Front Lh[10.2016 -] ASE30,AVE30,GSE31..ARL,GCC,GEN MARK 48520-53390 |
48520-80520 |
US $283.92 |
||
|
48520
|
48520
48520-80521
Absorber Assy, Shock, Front Lh
[10.2016 -] ASE30,AVE30..GCC,GEN MARK 48520-53400,F SPORT |
48520-80521 |
— | ||
|
48603A
|
48603A
90178-10014 Nut(For Front Suspension Support)[04.2013 - 08.2015] AVE30,GSE3# |
90178-10014 |
from US $1.19 |
||
|
48680
|
48680
48680-53060 Support Assy, Front Suspension[04.2013 - 07.2014] AVE30,GSE3# |
48680-53060 |
from US $112.48 |
||
|
48680
|
48680
48680-53061 Support Assy, Front Suspension[07.2014 - 08.2015] AVE30,GSE3# |
48680-53061 |
US $115.84 |
||
|
48680
|
48680
48680-53062 Support Assy, Front Suspension[10.2016 -] ASE30,AVE30,GSE31 |
48680-53062 |
US $72.57 |
||
|
48810
|
48810
48810-30090 Link Assy, Front Stabilizer, Lh[10.2016 -] ASE30,AVE30,GSE31 |
48810-30090 |
from US $55.02 |
||
|
48810
|
48810
48810-53020 Link Assy, Front Stabilizer, Lh[04.2013 - 08.2015] AVE30,GSE3# |
48810-53020 |
from US $80.22 |
||
|
48811
|
48811
48811-53090 Bar, Stabilizer, Front[04.2013 - 08.2015] AVE30,GSE3# |
48811-53090 |
US $103.38 |
||
|
48811
|
48811
48811-53091 Bar, Stabilizer, Front[10.2016 - 09.2017] ASE30,AVE30,GSE31 |
48811-53091 |
US $93.18 |
||
|
48815
|
48815
48815-53070 Bush, Front Stabilizer Bar, No.1[04.2013 - 08.2015] AVE30,GSE3# |
48815-53070 |
US $19.15 |
||
|
48820A
|
48820A
94151-21241 Nut(For Front Stabilizer Link)[04.2013 - 08.2015] AVE30,GSE3# |
94151-21241 |
from US $0.94 |
||
|
48820B
|
48820B
48820-30110 Link Assy, Front Stabilizer, Rh[10.2016 -] ASE30,AVE30,GSE31 |
48820-30110 |
from US $55.02 |
||
|
48820B
|
48820B
48820-53020 Link Assy, Front Stabilizer, Rh[04.2013 - 08.2015] AVE30,GSE3# |
48820-53020 |
from US $80.85 |
||
|
48824A
|
48824A
48809-30130 Bracket, Front Stabilizer[04.2013 - 08.2015] AVE30,GSE3# |
48809-30130 |
US $16.57 |
||
|
48827
|
48827
48824-30150 Bracket, Front Stabilizer, No.2 Rh[04.2013 - 08.2015] AVE30,GSE3# |
48824-30150 |
US $15.03 |
||
|
48828
|
48828
48824-30150 Bracket, Front Stabilizer, No.2 Rh[04.2013 - 08.2015] AVE30,GSE3# |
48824-30150 |
US $15.03 |
||
|
48829A
|
48829A
48809-30130 Bracket, Front Stabilizer[04.2013 - 08.2015] AVE30,GSE3# |
48809-30130 |
US $16.57 |
||
|
53729H
|
53729H
53729-53020 Reinforcement, Front Spring Support, No.3[04.2013 - 08.2015] AVE30,GSE3# |
53729-53020 |
US $8 |
||
|
9010514153
|
9010514153
90105-14153 Bolt(For Front Shock Absorber Bracket Lower) |
90105-14153 |
US $5.28 |
||
|
9011910965
|
9011910965
90119-10965 BOLT WWASHER |
90119-10965 |
US $1.60 |
||
|
9017712002
|
9017712002
90177-12002 Nut |
90177-12002 |
US $1.44 |
||
|
9017914045
|
9017914045
90179-14045 Nut(For Front Shock Absorber Bracket Lower) |
90179-14045 |
from US $1.50 |
||
