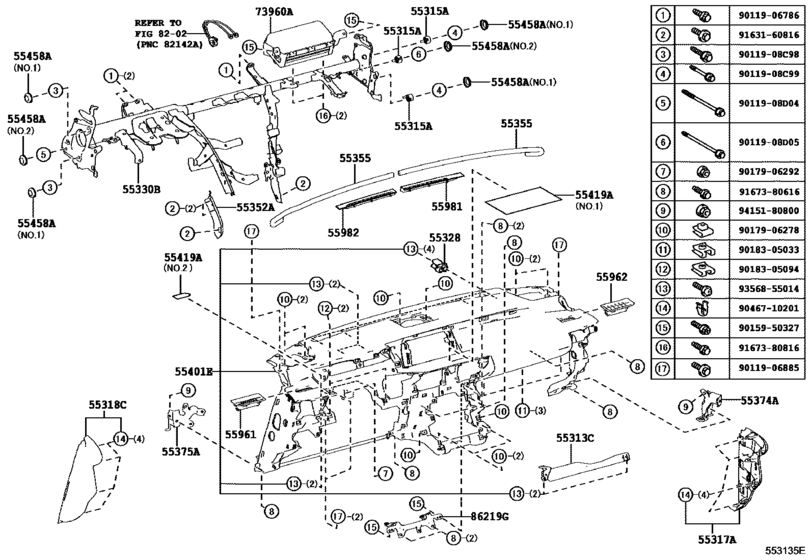

Instrument Panel & Glove Compartment ([04.2013 - ] (1304- )LHD) Diagram Toyota LEXUS IS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- AVE30
- grade
- LUX
- body
- SED
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- IS300 Hybrid
- From
- 04.2013
- No.of Doors
- 4D
- Vehicle Model
- IS300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55313C
|
55313C
55313-53030
Bracket, Glove Compartment
[04.2013 - 08.2015] AVE30,GSE3#..LHD |
55313-53030 |
— | ||
|
55315A
|
55315A
55315-53040 Spacer, Instrument Panel, No.1INSTRUMENT PANEL, NO.2 [04.2013 - 08.2015] AVE30,GSE3# |
55315-53040 |
US $3.64 |
||
|
55317A
|
55317A
55317-53100-C0 Panel, Instrument Side, Rh[04.2013 - 08.2015] AVE30,GSE3# BLACK,TRIM0#,1#,2#,3#,5# |
55317-53100-C0 |
US $29.12 |
||
|
55318C
|
55318C
55318-53070-C0 Panel, Instrument Side, Lh[04.2013 - 08.2015] AVE30,GSE3# BLACK,TRIM0#,1#,2#,3#,5# |
55318-53070-C0 |
US $29.12 |
||
|
55328
|
55328
55328-60090 Pin, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [04.2013 - 08.2015] AVE30,GSE3# |
55328-60090 |
US $4.27 |
||
|
55330B
|
55330B
55330-53330
Reinforcement Assy, Instrument Panel
[04.2013 - 08.2015] AVE30..GEN; GSE30..GEN BRAZIL SPEC; GSE30..GEN BRAZIL SPEC&LUXURY PACKAGE; GSE30..GEN BRAZIL SPEC&F SPORT; GSE30..LHD;GSE31..GCC LUXURY PACKAGE; GSE30..LHD;GSE31..GCC F SPORT; GSE31..GEN STEERING COLUMN-POWER(TILT & TELESCOPIC) |
55330-53330 |
— | ||
|
55330B
|
55330B
55330-53370
Reinforcement Assy, Instrument Panel
[10.2016 -] ASE30,AVE30,GSE31..GEN; ASE30,GSE31..CHI,GCC LUXURY PACKAGE; ASE30,GSE31..CHI,GCC F SPORT |
55330-53370 |
— | ||
|
55352A
|
55352A
55352-53070 Brace, Instrument Panel To Floor, No.2[04.2013 - 08.2015] AVE30,GSE3# |
55352-53070 |
US $7.43 |
||
|
55355
|
55355
55355-30100 Cushion, Instrument Panel, No.1[04.2013 - 08.2015] AVE30,GSE3# |
55355-30100 |
US $9.76 |
||
|
55374A
|
55374A
55375-53060 Bracket, Instrument Panel Lower Mounting, Rh[04.2013 - 08.2015] AVE30,GSE3# |
55375-53060 |
US $9.32 |
||
|
55375A
|
55375A
55374-53030 Bracket, Instrument Panel Lower Mounting, Lh[04.2013 - 08.2015] AVE30,GSE3# |
55374-53030 |
US $9.32 |
||
|
55401E
|
55401E
55401-53901-C0
Pad Sub-Assy, Instrument Panel Safety
[04.2013 - 08.2015] AVE30,GSE3#..LHD BLACK,TRIM0#,1#,2#,3#,5# |
55401-53901-C0 |
— | ||
| replacement | |||||
|
55401E
|
55401E
55401-53903-C0
Pad Sub-Assy, Instrument Panel Safety
[04.2013 - 08.2015] AVE30,GSE3#..LHD BLACK,TRIM0#,1#,2#,3#,5# |
55401-53903-C0 |
— | ||
|
55401E
|
55401E
55401-53903-C0
Pad Sub-Assy, Instrument Panel Safety
[12.2015 - 10.2016] ASE30,AVE30,GSE31..GCC,GEN BLACK,TRIM0#,1#,2#,3#,5# |
55401-53903-C0 |
— | ||
|
55419A
|
55419A
55419-53030 Cushion, Instrument Cluster Finish Panel[04.2013 - 08.2015] AVE30,GSE3# NO.1:REFER ILLUST. |
55419-53030 |
US $2.04 |
||
|
55419A
|
55419A
55419-53040 Cushion, Instrument Cluster Finish Panel[04.2013 - 08.2015] AVE30,GSE3# NO.2:REFER ILLUST. |
55419-53040 |
US $1.02 |
||
|
55458A
|
55458A
55458-22110 Cap, Instrument Panel Safety PadINSTRUMENT PANEL SAFETY PAD [04.2013 - 08.2015] AVE30,GSE3# NO.1:REFER ILLUST. |
55458-22110 |
US $0.96 |
||
|
55458A
|
55458A
55458-53011 Cap, Instrument Panel Safety Pad[04.2013 - 08.2015] AVE30,GSE3# NO.2:REFER ILLUST. |
55458-53011 |
US $1.16 |
||
|
55961
|
55961
55961-53010-C0
Nozzle, Side Defroster, No.1
[04.2013 - 08.2015] AVE30,GSE3#..LHD BLACK,TRIM0#,1#,2#,3#,5#,DRIVER SIDE |
55961-53010-C0 |
— | ||
|
55962
|
55962
55962-53030-C0
Nozzle, Side Defroster, No.2
[04.2013 - 08.2015] AVE30,GSE3#..LHD BLACK,TRIM0#,1#,2#,3#,5#,PASSENGER SIDE |
55962-53030-C0 |
— | ||
|
55981
|
55981
55981-53020-C0 Garnish, Defroster Nozzle, No.1[04.2013 - 08.2015] AVE30,GSE3# BLACK,TRIM0#,1#,2#,3#,5# |
55981-53020-C0 |
US $9.17 |
||
|
55982
|
55982
55982-53010-C0 Garnish, Defroster Nozzle, No.2[04.2013 - 08.2015] AVE30,GSE3# BLACK,TRIM0#,1#,2#,3#,5# |
55982-53010-C0 |
US $9.17 |
||
|
73960A
|
73960A
73960-53050 Air Bag Assy, Instrument Panel Passenger W/o Door[04.2013 - 08.2015] AVE30,GSE3# |
73960-53050 |
US $1,019.20 |
||
|
86219G
|
86219G
86219-53010 Bracket, Speaker[04.2013 - 08.2015] AVE30,GSE3# |
86219-53010 |
US $33.05 |
||
|
9011908C98
|
9011908C98
90119-08C98 Bolt, Instrument Panel |
90119-08C98 |
US $1.31 |
||
|
9011908C99
|
9011908C99
90119-08C99 Bolt, Instrument Panel |
90119-08C99 |
US $1.60 |
||
|
9011908D04
|
9011908D04
90119-08D04 New Genuine Part |
90119-08D04 |
US $2.48 |
||
|
9011908D05
|
9011908D05
90119-08D05 New Genuine Part |
90119-08D05 |
US $2.48 |
||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
from US $0.96 |
||
|
9011906885
|
9011906885
90119-06885 Bolt, Radiator Tank Pipe |
90119-06885 |
US $0.96 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9017906278
|
9017906278
90179-06278 NUT |
90179-06278 |
US $1.60 |
||
|
9017906292
|
9017906292
90179-06292 NUT |
90179-06292 |
US $1.60 |
||
|
9018305033
|
9018305033
90183-05033 NUT |
90183-05033 |
US $1.28 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $1.03 |
||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
US $2.56 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.72 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
