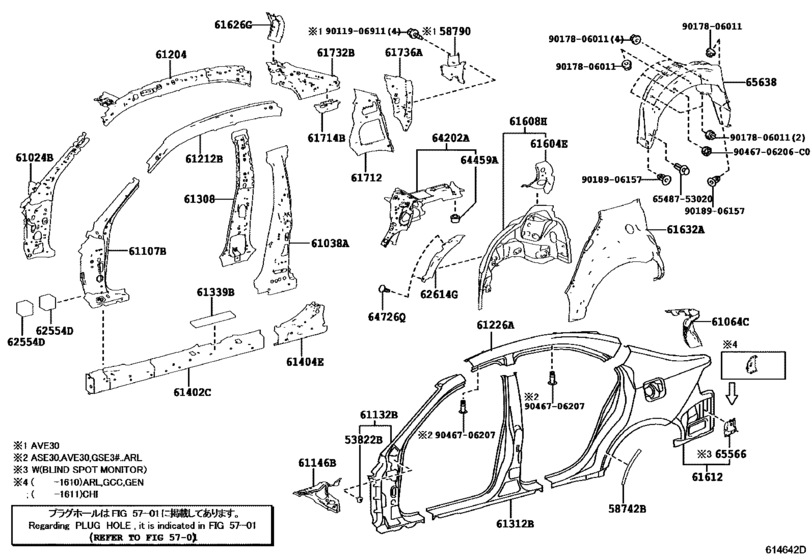

Side Member ([04.2013 - ] LH (1304- )) Diagram Toyota LEXUS IS
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- AVE30
- grade
- LUX
- body
- SED
- ENGINE
- 2ARFSE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- IS300 Hybrid
- From
- 04.2013
- No.of Doors
- 4D
- Vehicle Model
- IS300 Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53822B
|
53822B
53822-53030 Bracket, Front Fender, Rear Lh[04.2013 - 08.2015] AVE30,GSE3# |
53822-53030 |
from US $3.38 |
||
|
58742B
|
58742B
58742-53030 Protector, Quarter Panel, Lh[04.2013 - 08.2015] AVE30,GSE3# |
58742-53030 |
from US $11.72 |
||
|
58790
|
58790
58790-53010 Carrier Assy, Jack[04.2013 - 08.2015] AVE30 |
58790-53010 |
US $40.19 |
||
|
61024B
|
61024B
61024-53010 Pillar Sub-Assy, Front Body, Inner Lh[04.2013 - 08.2015] AVE30,GSE3# |
61024-53010 |
US $267.90 |
||
|
61024B
|
61024B
61024-53020 Pillar Sub-Assy, Front Body, Inner Lh[10.2016 -] ASE30,AVE30,GSE31..ARL,GCC,GEN |
61024-53020 |
US $276.64 |
||
|
61038A
|
61038A
61038-53050 Reinforcement Sub-Assy, Center Body Pillar, Lh[04.2013 - 08.2015] AVE30,GSE3# |
61038-53050 |
US $187.82 |
||
|
61064C
|
61064C
61064-53030 Trough Sub-Assy, Luggage Door Opening, Front Lh[04.2013 - 08.2015] AVE30,GSE3# |
61064-53030 |
from US $54.54 |
||
|
61107B
|
61107B
61107-53903 Reinforce Sub-Assy, Front Body Pillar, Upper Lh[04.2013 - 08.2015] AVE30,GSE3# |
61107-53903 |
US $160.16 |
||
|
61107B
|
61107B
61107-53904 Reinforce Sub-Assy, Front Body Pillar, Upper Lh[10.2016 -] ASE30,AVE30,GSE31..ARL,GCC,GEN |
61107-53904 |
US $168.90 |
||
|
61132B
|
61132B
61132-53070 Pillar, Front Body, Outer Lh[04.2013 - 08.2015] AVE30,GSE3# |
61132-53070 |
US $222.77 |
||
|
61146B
|
61146B
61016-53030 Gusset, Front Body Pillar, Lower Lh[04.2013 - 08.2015] AVE30,GSE3# |
61016-53030 |
US $60.13 |
||
|
61204
|
61204
61204-53020 Rail Sub-Assy, Roof Side, Inner Lh[04.2013 - 08.2015] AVE30,GSE3# |
61204-53020 |
US $186.37 |
||
|
61204
|
61204
61204-53021 Rail Sub-Assy, Roof Side, Inner Lh[10.2016 -] ASE30,AVE30,GSE31..ARL,GCC,GEN |
61204-53021 |
US $168.90 |
||
|
61212B
|
61212B
61212-53040 Rail, Roof Side, Outer Rear Lh[04.2013 - 08.2015] AVE30,GSE3# |
61212-53040 |
US $125.22 |
||
|
61226A
|
61226A
61226-53020 Rail, Roof Side Outer Upper No.1, Lh[04.2013 - 08.2015] AVE30,GSE3#..LHD |
61226-53020 |
US $106.29 |
||
|
61308
|
61308
61308-53010 Pillar Sub-Assy, Center Body, Inner Lh[04.2013 - 08.2015] AVE30,GSE3# |
61308-53010 |
US $244.61 |
||
|
61312B
|
61312B
61312-53050 Pillar, Center Body, Outer Lh[04.2013 - 08.2015] AVE30,GSE3# |
61312-53050 |
from US $198.55 |
||
|
61339B
|
61339B
61339-30010 Seal, Center Body Pillar, Inner No.1[04.2013 - 08.2015] AVE30,GSE3# |
61339-30010 |
US $2.62 |
||
|
61402C
|
61402C
61402-53904 Panel Sub-Assy, Rocker, Outer Lh[04.2013 - 08.2015] AVE30,GSE3# |
61402-53904 |
US $429.52 |
||
|
61402C
|
61402C
61402-53905 Panel Sub-Assy, Rocker, Outer Lh[10.2016 -] ASE30,AVE30,GSE31..ARL,GCC,GEN |
61402-53905 |
US $461.55 |
||
|
61404E
|
61404E
61404-53030 Reinforce Sub-Assy, Rocker, Outer Lh[04.2013 - 08.2015] AVE30,GSE3# |
61404-53030 |
US $85.90 |
||
|
61604E
|
61604E
61604-53010 Reinforcement Sub-Assy, Quater Panel, Inner Lh[04.2013 - 08.2015] AVE30,GSE3# |
61604-53010 |
US $37.86 |
||
|
61608H
|
61608H
61608-53901 Panel Sub-Assy, Quarter Wheel House, Inner Lh[04.2013 - 08.2015] AVE30,GSE3# |
61608-53901 |
US $305.76 |
||
|
61612
|
61612
61612-53060 Panel, Quarter, Lh[04.2013 - 08.2015] AVE30,GSE3# |
61612-53060 |
US $965.60 |
||
|
61612
|
61612
61612-53080 Panel, Quarter, Lh[07.2014 - 08.2015] AVE30,GSE31;GSE30..ARL,GCC BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
61612-53080 |
US $1,158.72 |
||
|
61612
|
61612
61612-53100 Panel, Quarter, Lh[10.2016 -] ASE30,AVE30,GSE31..ARL,GCC,GEN BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
61612-53100 |
US $965.60 |
||
|
61626G
|
61626G
61626-53040 Extension, Quarter Panel, Rear Lh[04.2013 - 08.2015] AVE30,GSE3# |
61626-53040 |
US $19.07 |
||
|
61632A
|
61632A
61632-53050 Panel, Quarter Wheel House, Outer Lh[04.2013 - 08.2015] AVE30,GSE3# |
61632-53050 |
US $138.32 |
||
|
61712
|
61712
61712-53040 Panel, Roof Side, Outer Lh[04.2013 - 08.2015] AVE30,GSE3# |
61712-53040 |
US $44.41 |
||
|
61714B
|
61714B
61714-53030 Reinforce, Roof Side, Outer Lh[04.2013 - 08.2015] AVE30,GSE3# |
61714-53030 |
US $12.23 |
||
|
61732B
|
61732B
61732-53060 Panel, Roof Side, Inner Lh[04.2013 - 08.2015] AVE30,GSE3# |
61732-53060 |
US $59.26 |
||
|
61736A
|
61736A
61736-53050 Panel, Roof Side, Inner Rear Lh[04.2013 - 08.2015] AVE30,GSE3# |
61736-53050 |
US $44.41 |
||
|
62554D
|
62554D
55783-50070 Pad, Pillar, No.4[04.2013 - 08.2015] AVE30,GSE3# |
55783-50070 |
US $4.95 |
||
|
62614G
|
62614G
62614-53010 Insurator, Quarter Wheel House, No.2 Lh[04.2013 - 08.2015] AVE30,GSE3# |
62614-53010 |
US $9.32 |
||
|
64202A
|
64202A
64202-53030 Strainer Sub-Assy, Package Tray To Floor, Lh[04.2013 - 08.2015] AVE30,GSE3# |
64202-53030 |
US $106.29 |
||
|
64202A
|
64202A
64202-53031 Strainer Sub-Assy, Package Tray To Floor, Lh[03.2017 -] ASE30,AVE30,GSE31 |
64202-53031 |
US $96.10 |
||
|
64459A
|
64459A
64469-30010 Cushion, Luggage Compartment DoorLUGGAGE COMPARTMENT DOOR, NO.2 [03.2017 -] ASE30,AVE30,GSE31 |
64469-30010 |
from US $1.16 |
||
|
64459A
|
64459A
90541-11010 Cushion, Luggage Compartment Door[04.2013 - 08.2015] AVE30,GSE3# |
90541-11010 |
from US $0.96 |
||
|
64726Q
|
64726Q
90467-07042-C0 Clip[04.2013 - 08.2015] AVE30,GSE3# BLACK |
90467-07042-C0 |
US $1.12 |
||
| replacement | |||||
|
64726Q
|
64726Q
90467-06175 Clip(For Luggage Compartment Door)[04.2013 - 08.2015] AVE30,GSE3# BLACK |
90467-06175 |
US $3.52 |
||
|
64726Q
|
64726Q
90467-07042-C4 Clip[02.2017 -] ASE30,AVE30,GSE31 BLACK |
90467-07042-C4 |
US $0.96 |
||
|
65566
|
65566
65565-33030 Patch, Side Panel Rear End, Rh[07.2014 - 08.2015] AVE30,GSE31;GSE30..ARL,GCC BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
65565-33030 |
US $18.24 |
||
|
65566
|
65566
65566-53020 Patch, Side Panel Rear End, Lh[10.2016 -] ASE30,AVE30,GSE31..ARL,GCC,GEN BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
65566-53020 |
US $12.08 |
||
|
65638
|
65638
65638-53040 Liner, Rear Wheel House, Lh[04.2013 - 08.2015] AVE30,GSE3# |
65638-53040 |
from US $113.96 |
||
|
6548753020
|
6548753020
65487-53020 Clip, Corner Protector |
65487-53020 |
from US $3.20 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
US $1.28 |
||
|
9017806011
|
9017806011
90178-06011 NUT FLANGE |
90178-06011 |
from US $0.86 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9046706206C0
|
9046706206C0
90467-06206-C0 Clip, Rear Bumper Side |
90467-06206-C0 |
from US $0.80 |
||
|
9046706207
|
9046706207
90467-06207 New Genuine Part |
90467-06207 |
US $1.60 |
||
