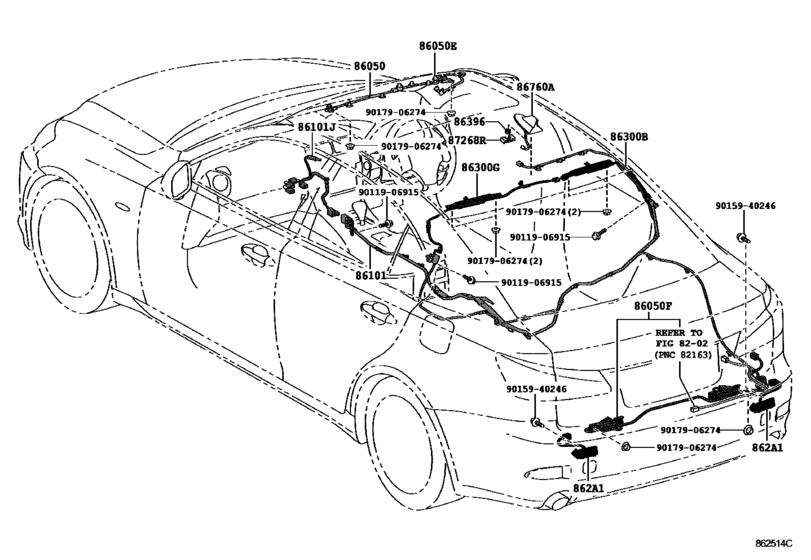

Antenna ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
862A1
|
862A1
862A1-53020 Antenna, Digital Terevision, No.1[08.2009 - 08.2010] GSE2# |
862A1-53020 |
US $154.34 |
||
|
86050
|
86050
86050-53070 Antenna Assy, Television[08.2009 - 08.2010] GSE2# |
86050-53070 |
US $192.19 |
||
|
86050
|
86050
86050-53150 Antenna Assy, Television[08.2012 -] GSE2# |
86050-53150 |
US $160.16 |
||
|
86050E
|
86050E
86050-53080 Antenna Assy, Television[08.2009 - 08.2010] GSE2# |
86050-53080 |
US $282.46 |
||
|
86050E
|
86050E
86050-53160 Antenna Assy, Television[08.2012 -] GSE2# |
86050-53160 |
US $234.42 |
||
|
86050F
|
86050F
86050-53090 Antenna Assy, Television[08.2009 - 08.2010] GSE2# |
86050-53090 |
US $474.66 |
||
|
86050F
|
86050F
86050-53100 Antenna Assy, Television[08.2010 - 08.2012] GSE2# |
86050-53100 |
US $474.66 |
||
|
86050F
|
86050F
86050-53170 Antenna Assy, Television[08.2012 -] GSE2# |
86050-53170 |
US $422.24 |
||
|
86101
|
86101
86101-53480 Cord Sub-Assy, Antenna[08.2005 - 08.2007] GSE20 オーディオ−ＡＭ／ＦＭ ＣＤ＆ＭＤ １３スピーカ ＆ ナビゲーション無＆ＥＭＶ ＆ ナビゲーション システム−無し |
86101-53480 |
US $100.46 |
||
|
86101
|
86101
86101-53510 Cord Sub-Assy, Antenna[08.2005 - 08.2008] GSE2# |
86101-53510 |
US $168.90 |
||
|
86101
|
86101
86101-53520 Cord Sub-Assy, Antenna[08.2005 - 08.2008] GSE2# オーディオ−マークレビンソン プレミアムサラウンドサウンドシステム １４スピーカ |
86101-53520 |
US $177.63 |
||
|
86101
|
86101
86101-53A50 Cord Sub-Assy, AntennaANTENNA [08.2009 - 08.2010] GSE2# |
86101-53A50 |
US $171.81 |
||
|
86101
|
86101
86101-53F10 Cord Sub-Assy, Antenna[08.2012 -] GSE2# |
86101-53F10 |
US $139.78 |
||
|
86101J
|
86101J
86101-53530 Cord Sub-Assy, Antenna, No.2[08.2005 - 08.2007] GSE20 オーディオ−ＡＭ／ＦＭ ＣＤ＆ＭＤ １３スピーカ ＆ ナビゲーション無 |
86101-53530 |
US $47.47 |
||
|
86101J
|
86101J
86101-53540 Cord Sub-Assy, Antenna, No.2[08.2005 - 08.2008] GSE2# |
86101-53540 |
US $64.06 |
||
|
86101J
|
86101J
86101-53560 Cord Sub-Assy, Antenna, No.2[08.2005 - 08.2008] GSE2# オーディオ−マークレビンソン プレミアムサラウンドサウンドシステム １４スピーカ |
86101-53560 |
US $64.06 |
||
|
86101J
|
86101J
86101-53830 Cord Sub-Assy, Antenna, No.2[08.2012 - 04.2013] GSE2# |
86101-53830 |
US $47.17 |
||
|
86101J
|
86101J
86101-53A30 Cord Sub-Assy, Antenna, No.2ANTENNA, NO.2 [08.2009 - 08.2010] GSE2# |
86101-53A30 |
US $64.06 |
||
|
86300B
|
86300B
86300-53140 Antenna Assy, Amplifier, No.1[08.2005 - 08.2008] GSE2# |
86300-53140 |
US $222.77 |
||
|
86300B
|
86300B
86300-53230 Antenna Assy, Amplifier, No.1[08.2009 - 08.2010] GSE2# |
86300-53230 |
US $184.91 |
||
|
86300G
|
86300G
86300-53150 Antenna Assy, Television Amplifier[08.2005 - 08.2008] GSE2# |
86300-53150 |
US $222.77 |
||
|
86396
|
86396
86396-30050 Nut, Antenna[08.2005 - 08.2008] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
86396-30050 |
US $9.03 |
||
|
86396
|
86396
86396-47010 Nut, AntennaANTENNA [12.2010 -] GSE2# |
86396-47010 |
US $7.71 |
||
|
86760A
|
86760A
86760-53010-A0 Antenna Assy, Telephone[08.2005 - 07.2006] GSE2# WHITE PEARL CS.,062; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,WHITE PEARL CS.,062 |
86760-53010-A0 |
US $157.25 |
||
|
86760A
|
86760A
86760-53010-A1 Antenna Assy, Telephone[08.2005 - 08.2008] GSE2# BLUISH PEARL CS.,074; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,BLUISH PEARL CS.,074 |
86760-53010-A1 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-A2 Antenna Assy, Telephone[07.2006 - 08.2008] GSE2# WHITE PEARL CS.,077; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,WHITE PEARL CS.,077 |
86760-53010-A2 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-B0 Antenna Assy, Telephone[08.2005 - 08.2008] GSE2# DK.GRAY MC.,1G0; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,DK.GRAY MC.,1G0 |
86760-53010-B0 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-B1 Antenna Assy, Telephone[08.2005 - 08.2008] GSE2# SILVER M.M.,1G1; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,SILVER M.M.,1G1 |
86760-53010-B1 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-B4 Antenna Assy, Telephone[08.2011 - 04.2013] GSE2# MERCURY GRAY MC.,1H9 |
86760-53010-B4 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-C0 Antenna Assy, Telephone[08.2005 - 07.2006] GSE2# BLACK,202; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,BLACK,202 |
86760-53010-C0 |
US $157.25 |
||
|
86760A
|
86760A
86760-53010-C1 Antenna Assy, Telephone[07.2006 - 08.2008] GSE2# BLACK,212; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,BLACK,212 |
86760-53010-C1 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-C2 Antenna Assy, Telephone[08.2010 - 04.2013] GSE2# STARLIGHT BLACK GF.,217 |
86760-53010-C2 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-D0 Antenna Assy, Telephone[08.2005 - 08.2008] GSE2# RED MC.CS.,3R1; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,RED MC.CS.,3R1 |
86760-53010-D0 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-D1 Antenna Assy, Telephone[12.2006 - 08.2008] GSE2# SHELL M.M.,3R4; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,SHELL M.M.,3R4 |
86760-53010-D1 |
US $157.25 |
||
|
86760A
|
86760A
86760-53010-E0 Antenna Assy, Telephone[08.2005 - 07.2006] GSE2# BEIGE ME.,4P7; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,BEIGE ME.,4P7 |
86760-53010-E0 |
US $157.25 |
||
|
86760A
|
86760A
86760-53010-E1 Antenna Assy, Telephone[07.2006 - 08.2008] GSE2# BEIGE ME.,4T1; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,BEIGE ME.,4T1 |
86760-53010-E1 |
US $157.25 |
||
|
86760A
|
86760A
86760-53010-E2 Antenna Assy, Telephone[08.2008 - 08.2010] GSE2# BLOND M.M.,4T0 |
86760-53010-E2 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-E3 Antenna Assy, Telephone[08.2008 - 08.2010] GSE2# SABLE M.M.,4T5 |
86760-53010-E3 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-E4 Antenna Assy, Telephone[08.2011 - 04.2013] GSE2# FIRE AGATE M.M.,4V3 |
86760-53010-E4 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-G0 Antenna Assy, Telephone[08.2005 - 08.2008] GSE2# MD.GREEN M.M.,6U3; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,MD.GREEN M.M.,6U3 |
86760-53010-G0 |
US $157.25 |
||
|
86760A
|
86760A
86760-53010-J0 Antenna Assy, Telephone[08.2005 - 07.2006] GSE2# DARK BLUE MC.,8P8; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,DARK BLUE MC.,8P8 |
86760-53010-J0 |
US $157.25 |
||
|
86760A
|
86760A
86760-53010-J1 Antenna Assy, Telephone[08.2005 - 08.2008] GSE2# LT.BLUE ME.,8R6; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,LT.BLUE ME.,8R6 |
86760-53010-J1 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-J3 Antenna Assy, Telephone[07.2006 - 08.2008] GSE2# DK.BLUE MC. CC.,8U0; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し,DK.BLUE MC. CC.,8U0 |
86760-53010-J3 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-J4 Antenna Assy, Telephone[08.2009 - 08.2010] GSE20,21 BLUE ME. CC.,8U1 |
86760-53010-J4 |
US $109.20 |
||
|
86760A
|
86760A
86760-53010-J5 Antenna Assy, Telephone[08.2010 - 04.2013] GSE2# SILVERY BLUE ME.,8U9 |
86760-53010-J5 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-J6 Antenna Assy, Telephone[08.2010 - 04.2013] GSE2# LAPIS LAZULI MC.,8V3 |
86760-53010-J6 |
US $131.04 |
||
|
86760A
|
86760A
86760-53010-K0 Antenna Assy, TelephoneTELEPHONE [08.2009 - 08.2010] GSE2# CATTLEYA M.M.,9AL |
86760-53010-K0 |
US $131.04 |
||
|
87268R
|
87268R
87268-30050 Protector, Telephone Antenna[08.2005 - 04.2006] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
87268-30050 |
US $7.72 |
||
| replacement | |||||
|
87268R
|
87268R
87268-50021 Protector, Telephone Antenna[08.2005 - 04.2006] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
87268-50021 |
US $6.26 |
||
|
87268R
|
87268R
87268-50020 Protector, Telephone Antenna[05.2006 - 08.2008] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
87268-50020 |
US $8.44 |
||
| replacement | |||||
|
87268R
|
87268R
87268-50021 Protector, Telephone Antenna[05.2006 - 08.2008] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
87268-50021 |
US $6.26 |
||
|
87268R
|
87268R
87268-50021 Protector, Telephone Antenna[12.2010 -] GSE2# |
87268-50021 |
US $6.26 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015940246
|
9015940246
90159-40246 SCREW WWASHER |
90159-40246 |
from US $0.48 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
