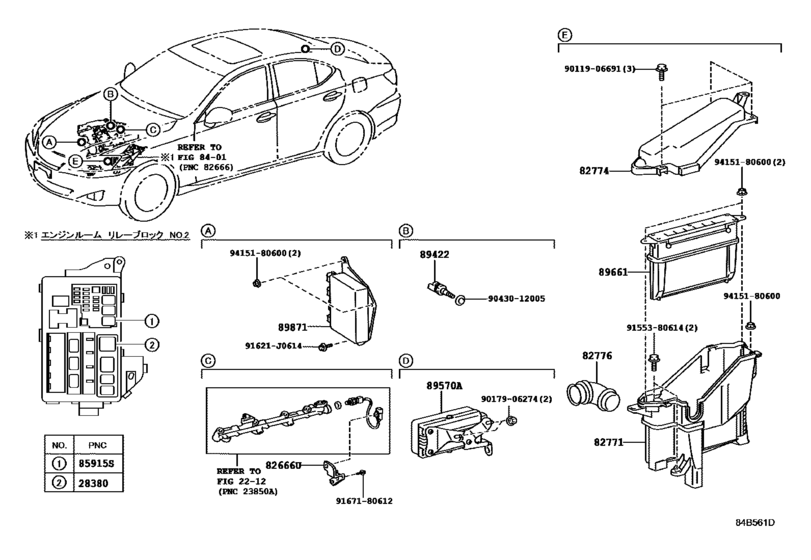

Electronic Fuel Injection System ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
90987-03003 Relay Assy, Fuel Pump[08.2005 - 08.2008] 2GRFSE,4GRFSE..GSE2# |
90987-03003 |
US $44.86 |
||
|
82666U
|
82666U
82666-30780 Holder, Connector[08.2005 - 08.2008] GSE2# |
82666-30780 |
US $5.82 |
||
|
82771
|
82771
82771-30040 Box, Engine Room Ecu[08.2005 - 08.2008] GSE2# |
82771-30040 |
US $113.57 |
||
|
82774
|
82774
82774-30050 Cover, Engine Room Ecu[08.2005 - 08.2008] GSE2# |
82774-30050 |
US $47.03 |
||
|
82776
|
82776
82776-53040 Duct, Engine Room Ecu Outlet[08.2005 - 08.2008] GSE2# |
82776-53040 |
US $13 |
||
|
85915S
|
85915S
90987-02027 Relay[08.2005 - 08.2008] GSE2# |
90987-02027 |
US $49.22 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[08.2005 - 08.2008] GSE2# |
89422-33030 |
from US $40.49 |
||
|
89570A
|
89570A
89570-53011 Computer Assy, Fuel Pump Control[08.2010 -] GSE20 |
89570-53011 |
US $183.46 |
||
|
89661
|
89661
89661-53630 Computer, Engine Control[08.2005 - 07.2006] GSE20 |
89661-53630 |
US $1,747.20 |
||
|
89661
|
89661
89661-53790 Computer, Engine Control[07.2006 - 08.2007] GSE20 |
89661-53790 |
US $1,747.20 |
||
|
89661
|
89661
89661-53A80 Computer, Engine Control[08.2007 - 08.2008] GSE20 |
89661-53A80 |
US $1,994.72 |
||
|
89661
|
89661
89661-53C20 Computer, Engine Control[08.2008 - 08.2009] GSE20 |
89661-53C20 |
US $1,776.32 |
||
|
89661
|
89661
89661-53F80 Computer, Engine ControlENGINE CONTROL [08.2009 - 08.2010] GSE20 |
89661-53F80 |
US $1,776.32 |
||
|
89661
|
89661
89661-53J50 Computer, Engine Control[08.2010 -] GSE20 |
89661-53J50 |
US $1,805.44 |
||
|
89871
|
89871
89871-30030 Driver, Injector[08.2005 - 08.2008] GSE20,25 |
89871-30030 |
US $942.03 |
||
| replacement | |||||
|
89871
|
89871
89871-30031 Driver, Injector[08.2005 - 08.2008] GSE20,25 |
89871-30031 |
US $784.78 |
||
|
89871
|
89871
89871-30031 Driver, Injector[11.2011 - 04.2013] GSE20,25 |
89871-30031 |
US $784.78 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
US $1.97 |
||
|
9011906691
|
9011906691
90119-06691 BOLT WWASHER |
90119-06691 |
US $1.25 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $1.25 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $1.19 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $1.08 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
US $1.08 |
||
