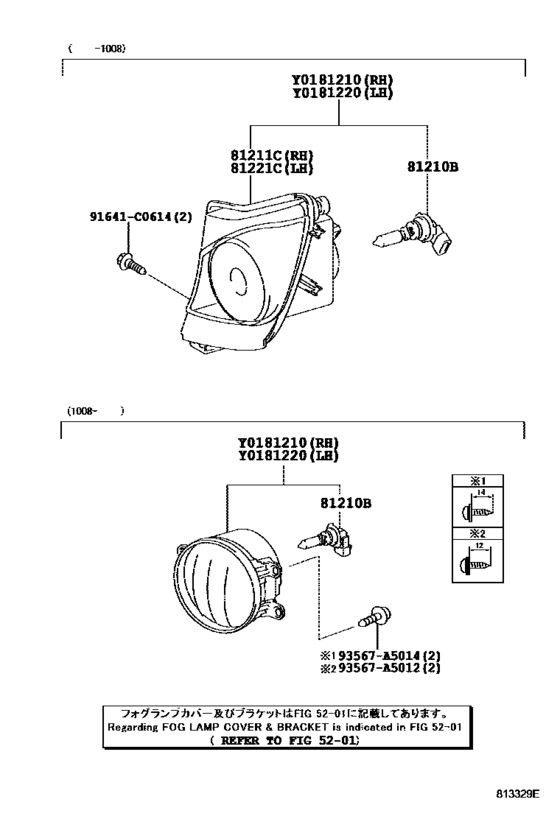

Fog Lamp ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81210
|
81210
81210-0W050 Lamp Assy, Fog, Rh[08.2010 - 04.2013] GSE2# |
81210-0W050 |
US $192 |
||
|
81210
|
81210
81210-53280 Lamp Assy, Fog[08.2005 - 11.2006] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81210-53280 |
US $320.32 |
||
| replacement | |||||
|
81210
|
81210
81210-53281 Lamp Assy, Fog[08.2005 - 11.2006] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81210-53281 |
US $264.99 |
||
|
81210
|
81210
81210-53281 Lamp Assy, Fog[12.2006 - 08.2008] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81210-53281 |
US $264.99 |
||
|
81210B
|
81210B
90981-13047 Bulb (HB4)[08.2005 - 11.2006] GSE20,25 １２Ｖ ５５Ｗ，ハロゲン,ヘッドランプ−４灯ハロゲン |
90981-13047 |
US $33.60 |
||
|
81210B
|
81210B
90981-13047-79 Bulb, Fog Lamp[08.2005 - 08.2008] GSE2# １２Ｖ ５５Ｗ，ハロゲン |
90981-13047-79 |
US $33.60 |
||
|
81210B
|
81210B
90981-13075-79 Bulb(For Headlamp, No.2)[08.2010 -] GSE2# １２Ｖ ５５Ｗ，ハロゲン,ＰＨＩＬＩＰＳ |
90981-13075-79 |
US $30.24 |
||
|
81210B
|
81210B
90981-13081-79 Bulb, Fog Lamp[08.2010 -] GSE2# １２Ｖ ５５Ｗ，ハロゲン,ＯＳＲＡＭ |
90981-13081-79 |
US $33.60 |
||
|
81211C
|
81211C
81211-53280 Lamp Unit, Fog Lamp, Rh[08.2005 - 11.2006] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81211-53280 |
US $285.38 |
||
| replacement | |||||
|
81211C
|
81211C
81211-53281 Lamp Unit, Fog Lamp, Rh[08.2005 - 11.2006] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81211-53281 |
US $322.92 |
||
|
81211C
|
81211C
81211-53281 Lamp Unit, Fog Lamp, Rh[12.2006 - 08.2008] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81211-53281 |
US $322.92 |
||
|
81220
|
81220
81220-0W040 Lamp Assy, Fog, Lh[08.2010 - 04.2013] GSE2# |
81220-0W040 |
US $192 |
||
|
81220
|
81220
81220-53280 Lamp Assy, Fog, Lh[08.2005 - 11.2006] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81220-53280 |
US $320.32 |
||
| replacement | |||||
|
81220
|
81220
81220-53281 Lamp Assy, Fog, Lh[08.2005 - 11.2006] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81220-53281 |
US $264.99 |
||
|
81220
|
81220
81220-53281 Lamp Assy, Fog, Lh[12.2006 - 08.2008] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81220-53281 |
US $264.99 |
||
|
81221C
|
81221C
81221-53280 Lamp Unit, Fog Lamp, Lh[08.2005 - 11.2006] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81221-53280 |
US $285.38 |
||
| replacement | |||||
|
81221C
|
81221C
81221-53281 Lamp Unit, Fog Lamp, Lh[08.2005 - 11.2006] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81221-53281 |
US $265.20 |
||
|
81221C
|
81221C
81221-53281 Lamp Unit, Fog Lamp, Lh[12.2006 - 08.2008] GSE2#; GSE20,25 ヘッドランプ−４灯ハロゲン |
81221-53281 |
US $265.20 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
US $1.25 |
||
|
93567A5012
|
93567A5012
93567-A5012 New Genuine Part |
93567-A5012 |
US $1.51 |
||
|
93567A5014
|
93567A5014
93567-A5014 SCREW TAPPING |
93567-A5014 |
US $1.43 |
||
