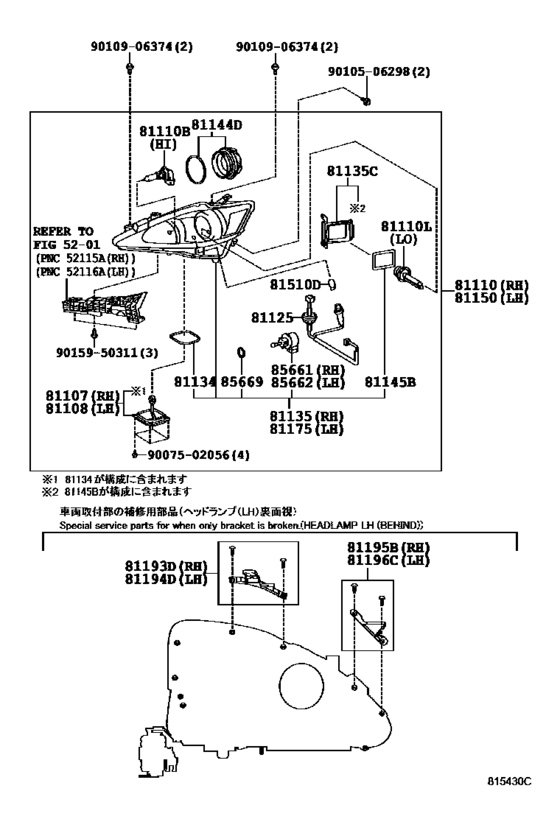

Headlamp ([08.2010 - ] (1008- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81107
|
81107
81107-53501 Computer Sub-Assy, Headlamp Light Control, Rh[08.2010 -] GSE2# |
81107-53501 |
US $519.79 |
||
|
81108
|
81108
81107-53501 Computer Sub-Assy, Headlamp Light Control, Rh[08.2010 -] GSE2# |
81107-53501 |
US $519.79 |
||
|
81110
|
81110
81110-53220 Headlamp Assy, Rh[08.2005 - 08.2008] GSE2# |
81110-53220 |
US $2,300.48 |
||
|
81110
|
81110
81110-53250 Headlamp Assy, Rh[08.2005 - 08.2007] GSE20 ヘルプネット無し |
81110-53250 |
US $803.71 |
||
|
81110
|
81110
81110-53350 Headlamp Assy, Rh[08.2008 - 03.2010] GSE2# |
81110-53350 |
US $1,907.36 |
||
| replacement | |||||
|
81110
|
81110
81110-53351 Headlamp Assy, Rh[08.2008 - 03.2010] GSE2# |
81110-53351 |
US $1,907.36 |
||
|
81110
|
81110
81110-53351 Headlamp Assy, Rh[04.2010 - 08.2010] GSE2# |
81110-53351 |
US $1,907.36 |
||
|
81110
|
81110
81110-53360 Headlamp Assy, RhRH [08.2009 - 08.2010] GSE20,25 ハロゲンヘッドランプ |
81110-53360 |
US $797.89 |
||
|
81110
|
81110
81110-53490 Headlamp Assy, Rh[08.2010 - 08.2011] GSE2# |
81110-53490 |
US $2,242.24 |
||
|
81110
|
81110
81110-53491 Headlamp Assy, Rh[08.2011 - 09.2011] GSE2# |
81110-53491 |
US $2,242.24 |
||
|
81110
|
81110
81110-53492 Headlamp Assy, Rh[09.2011 - 09.2011] GSE2# |
81110-53492 |
US $2,242.24 |
||
|
81110
|
81110
81110-53493 Headlamp Assy, Rh[09.2011 - 04.2013] GSE2# |
81110-53493 |
US $2,242.24 |
||
|
81110B
|
81110B
90981-13046-79 Bulb(For Headlamp, No.1)NO.1) [08.2005 - 08.2008] GSE2# １２Ｖ６５Ｗ（ＳＡＥ），６０Ｗ（ＥＣＥ） |
90981-13046-79 |
US $33.60 |
||
|
81110L
|
81110L
90981-20013-79 Bulb, Discharge Headlamp[08.2005 - 12.2005] GSE2# ４５Ｖ ３５Ｗ |
90981-20013-79 |
US $189.28 |
||
|
81110L
|
81110L
90981-20021-79 Bulb, Discharge Headlamp[01.2006 - 08.2008] GSE2# ４５Ｖ ３５Ｗ |
90981-20021-79 |
US $189.28 |
||
|
81110L
|
81110L
90981-20024-79 Bulb(For Headlamp, No.1)DISCHARGE HEADLAMP [02.2009 - 08.2010] GSE2# ４２Ｖ ３５Ｗ |
90981-20024-79 |
US $208 |
||
|
81125
|
81125
81125-53570 Cord, Headlamp[08.2010 -] GSE2# |
81125-53570 |
US $46.66 |
||
|
81125
|
81125
81126-53220 Cord, Headlamp[08.2005 - 08.2008] GSE2# |
81126-53220 |
US $36.40 |
||
|
81134
|
81134
90075-68007 Gasket, Headlamp[08.2005 - 08.2008] GSE2# |
90075-68007 |
US $14.52 |
||
|
81135
|
81135
81130-53250 Unit Assy, Headlamp, Rh[08.2005 - 08.2007] GSE20 ヘルプネット無し |
81130-53250 |
US $512.51 |
||
|
81135
|
81135
81140-53220 Unit Assy, Headlamp, Rh[08.2005 - 08.2008] GSE2# |
81140-53220 |
US $1,326.42 |
||
| replacement | |||||
|
81135
|
81135
81140-53351 Unit Assy, Headlamp, Rh[08.2005 - 08.2008] GSE2# |
81140-53351 |
US $1,778.40 |
||
|
81135
|
81135
81140-53351 Unit Assy, Headlamp, Rh[04.2010 - 08.2010] GSE2# |
81140-53351 |
US $1,778.40 |
||
|
81135
|
81135
81145-53490 Unit Assy, Headlamp, Rh[08.2010 - 08.2011] GSE2# |
81145-53490 |
US $1,339.52 |
||
|
81135
|
81135
81145-53491 Unit Assy, Headlamp, Rh[08.2011 - 09.2011] GSE2# |
81145-53491 |
US $1,339.52 |
||
|
81135
|
81135
81145-53492 Unit Assy, Headlamp, Rh[09.2011 - 09.2011] GSE2# |
81145-53492 |
US $1,339.52 |
||
|
81135
|
81135
81145-53493 Unit Assy, Headlamp, Rh[09.2011 - 04.2013] GSE2# |
81145-53493 |
US $1,339.52 |
||
|
81135C
|
81135C
81135-53240 Cover, Headlamp Back, No.1[08.2005 - 08.2008] GSE2# |
81135-53240 |
US $22.85 |
||
|
81135C
|
81135C
81135-53270 Cover, Headlamp Back, No.1[08.2005 - 08.2007] GSE20 ヘルプネット無し |
81135-53270 |
US $15.84 |
||
|
81144D
|
81144D
90075-66004 Cap, Locking[08.2010 -] GSE2# |
90075-66004 |
US $12.90 |
||
|
81145B
|
81145B
81132-53240 Gasket, Headlamp Cover, No.1[08.2005 - 08.2008] GSE2# |
81132-53240 |
US $20.83 |
||
|
81150
|
81150
81150-53220 Headlamp Assy, Lh[08.2005 - 08.2008] GSE2# |
81150-53220 |
US $2,300.48 |
||
|
81150
|
81150
81150-53250 Headlamp Assy, Lh[08.2005 - 08.2007] GSE20 ヘルプネット無し |
81150-53250 |
US $803.71 |
||
|
81150
|
81150
81150-53350 Headlamp Assy, Lh[08.2008 - 03.2010] GSE2# |
81150-53350 |
US $1,907.36 |
||
| replacement | |||||
|
81150
|
81150
81150-53351 Headlamp Assy, Lh[08.2008 - 03.2010] GSE2# |
81150-53351 |
US $1,907.36 |
||
|
81150
|
81150
81150-53351 Headlamp Assy, Lh[04.2010 - 08.2010] GSE2# |
81150-53351 |
US $1,907.36 |
||
|
81150
|
81150
81150-53360 Headlamp Assy, LhLH [08.2009 - 08.2010] GSE20,25 ハロゲンヘッドランプ |
81150-53360 |
US $797.89 |
||
|
81150
|
81150
81150-53490 Headlamp Assy, Lh[08.2010 - 08.2011] GSE2# |
81150-53490 |
US $2,242.24 |
||
|
81150
|
81150
81150-53491 Headlamp Assy, Lh[08.2011 - 09.2011] GSE2# |
81150-53491 |
US $2,242.24 |
||
|
81150
|
81150
81150-53492 Headlamp Assy, Lh[09.2011 - 09.2011] GSE2# |
81150-53492 |
US $2,242.24 |
||
|
81150
|
81150
81150-53493 Headlamp Assy, Lh[09.2011 - 04.2013] GSE2# |
81150-53493 |
US $2,242.24 |
||
|
81175
|
81175
81070-53220 Unit Assy, Headlamp, Lh[08.2005 - 08.2008] GSE2# |
81070-53220 |
US $1,326.42 |
||
| replacement | |||||
|
81175
|
81175
81070-53351 Unit Assy, Headlamp, Lh[08.2005 - 08.2008] GSE2# |
81070-53351 |
US $1,778.40 |
||
|
81175
|
81175
81070-53351 Unit Assy, Headlamp, Lh[04.2010 - 08.2010] GSE2# |
81070-53351 |
US $1,778.40 |
||
|
81175
|
81175
81170-53250 Unit Assy, Headlamp, Lh[08.2005 - 08.2007] GSE20 ヘルプネット無し |
81170-53250 |
US $512.51 |
||
|
81175
|
81175
81185-53490 Unit Assy, Headlamp, Lh[08.2010 - 08.2011] GSE2# |
81185-53490 |
US $1,339.52 |
||
|
81175
|
81175
81185-53491 Unit Assy, Headlamp, Lh[08.2011 - 09.2011] GSE2# |
81185-53491 |
US $1,339.52 |
||
|
81175
|
81175
81185-53492 Unit Assy, Headlamp, Lh[09.2011 - 09.2011] GSE2# |
81185-53492 |
US $1,339.52 |
||
|
81175
|
81175
81185-53493 Unit Assy, Headlamp, Lh[09.2011 - 04.2013] GSE2# |
81185-53493 |
US $1,339.52 |
||
|
81193D
|
81193D
81193-53020 Retainer, Rh Headlamp Protector, Upper Lh[08.2005 - 08.2008] GSE2# |
81193-53020 |
US $23.82 |
||
|
81194D
|
81194D
81194-53010 Retainer, Lh Headlamp Protector, Upper Lh[08.2005 - 08.2008] GSE2# |
81194-53010 |
US $24.62 |
||
|
81195B
|
81195B
81195-53010 Retainer, Rh Headlamp Protector, Lower Rh[08.2005 - 08.2008] GSE2# |
81195-53010 |
US $7.78 |
||
|
81196C
|
81196C
81196-53020 Retainer, Lh Headlamp Protector, Lower Lh[08.2005 - 08.2008] GSE2# |
81196-53020 |
US $7.78 |
||
|
81510D
|
81510D
90981-15021-79 Bulb (For Front Turn Signal Lamp)[08.2005 - 08.2008] GSE2# １２Ｖ ２１Ｗ，アンバー |
90981-15021-79 |
US $5.38 |
||
| replacement | |||||
|
81510D
|
81510D
90981-15021 Bulb (For Front Turn Signal Lamp)[08.2005 - 08.2008] GSE2# １２Ｖ ２１Ｗ，アンバー |
90981-15021 |
US $5.38 |
||
|
85661
|
85661
85661-48030 Motor, Headlamp Leveling, Rh[08.2005 - 08.2008] GSE2# |
85661-48030 |
US $155.79 |
||
|
85662
|
85662
85661-48030 Motor, Headlamp Leveling, Rh[08.2005 - 08.2008] GSE2# |
85661-48030 |
US $155.79 |
||
|
85669
|
85669
90075-99120 Packing, Headlamp Leveling Motor Base[08.2005 - 08.2008] GSE2# |
90075-99120 |
US $3.94 |
||
|
9007502056
|
9007502056
90075-02056 Screw, Headlamp |
90075-02056 |
US $1.08 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
US $1.08 |
||
|
9010906374
|
9010906374
90109-06374 BOLT |
90109-06374 |
US $1.08 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
