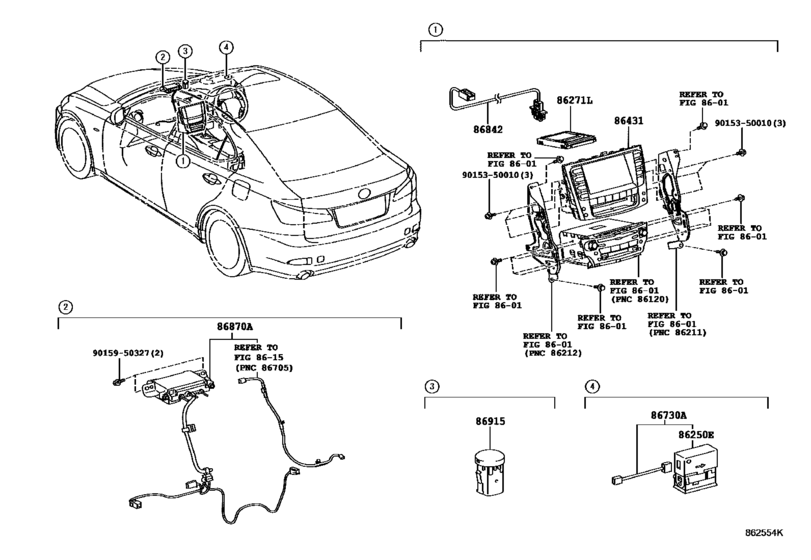

Navigation & Front Monitor Display ([08.2005 - 08.2009] (0508-0908)) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86250E
|
86250E
86250-52020 Microphone Assy, Amplifier[08.2005 - 08.2008] GSE2# |
86250-52020 |
US $59.75 |
||
|
86271L
|
86271L
86271-30520 Hard Disc[08.2005 - 03.2006] GSE2# |
86271-30520 |
US $1,370.10 |
||
| replacement | |||||
|
86271L
|
86271L
86271-30527 Hard Disc[08.2005 - 03.2006] GSE2# |
86271-30527 |
US $1,141.50 |
||
|
86271L
|
86271L
86271-30521 Hard Disc[04.2006 - 08.2006] GSE2# |
86271-30521 |
US $1,370.10 |
||
| replacement | |||||
|
86271L
|
86271L
86271-30527 Hard Disc[04.2006 - 08.2006] GSE2# |
86271-30527 |
US $1,141.50 |
||
|
86271L
|
86271L
86271-30522 Hard Disc[09.2006 - 03.2007] GSE2# |
86271-30522 |
US $1,370.10 |
||
| replacement | |||||
|
86271L
|
86271L
86271-30527 Hard Disc[09.2006 - 03.2007] GSE2# |
86271-30527 |
US $1,141.50 |
||
|
86271L
|
86271L
86271-30523 Hard Disc[04.2007 - 07.2007] GSE2# |
86271-30523 |
US $1,370.10 |
||
| replacement | |||||
|
86271L
|
86271L
86271-30527 Hard Disc[04.2007 - 07.2007] GSE2# |
86271-30527 |
US $1,141.50 |
||
|
86271L
|
86271L
86271-30524 Hard Disc[08.2007 - 03.2008] GSE2#; GSE20,25 ヘルプネット無し＆オーディオ−ＡＭ／ＦＭ ＣＤ＆ＭＤ １３スピーカ ＆ ナビゲーシ ョン無 |
86271-30524 |
US $1,371.55 |
||
| replacement | |||||
|
86271L
|
86271L
86271-30527 Hard Disc[08.2007 - 03.2008] GSE2#; GSE20,25 ヘルプネット無し＆オーディオ−ＡＭ／ＦＭ ＣＤ＆ＭＤ １３スピーカ ＆ ナビゲーシ ョン無 |
86271-30527 |
US $1,141.50 |
||
|
86271L
|
86271L
86271-30525 Hard Disc[04.2008 - 08.2008] GSE2#; GSE20,25 ヘルプネット無し＆オーディオ−ＡＭ／ＦＭ ＣＤ＆ＭＤ １３スピーカ ＆ ナビゲーシ ョン無 |
86271-30525 |
US $864.86 |
||
| replacement | |||||
|
86271L
|
86271L
86271-30527 Hard Disc[04.2008 - 08.2008] GSE2#; GSE20,25 ヘルプネット無し＆オーディオ−ＡＭ／ＦＭ ＣＤ＆ＭＤ １３スピーカ ＆ ナビゲーシ ョン無 |
86271-30527 |
US $1,141.50 |
||
|
86271L
|
86271L
86271-30526 Hard Disc[08.2008 - 04.2009] GSE2# |
86271-30526 |
US $1,371.55 |
||
| replacement | |||||
|
86271L
|
86271L
86271-30527 Hard Disc[08.2008 - 04.2009] GSE2# |
86271-30527 |
US $1,141.50 |
||
|
86271L
|
86271L
86271-30527 Hard Disc[04.2009 - 08.2009] GSE21; GSE20,25 ＥＭＶ＆ナビゲーションシステム−有り（ＧＰＳナビゲーション ＋ テレビ）英語タイプ |
86271-30527 |
US $1,141.50 |
||
|
86271L
|
86271L
86271-30661 Hard Disc[08.2012 - 09.2012] GSE2# |
86271-30661 |
US $1,142.96 |
||
| replacement | |||||
|
86271L
|
86271L
86271-22110 Hard Disc[08.2012 - 09.2012] GSE2# |
86271-22110 |
US $1,086.44 |
||
|
86271L
|
86271L
86271-30662 Hard Disc[09.2012 - 04.2013] GSE2# |
86271-30662 |
US $1,142.96 |
||
| replacement | |||||
|
86271L
|
86271L
86271-22110 Hard Disc[09.2012 - 04.2013] GSE2# |
86271-22110 |
US $1,086.44 |
||
|
86431
|
86431
86431-53010 Display, Display & Navigation Module[08.2005 - 08.2008] GSE20,25 ＤＥＮＳＯ; GSE20,25 @ナビゲーション無 |
86431-53010 |
US $9,420.32 |
||
|
86431
|
86431
86431-53040 Display, Display & Navigation Module[08.2011 - 09.2011] GSE20,25 ＤＥＮＳＯ |
86431-53040 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53042 Display, Display & Navigation Module[08.2011 - 09.2011] GSE20,25 ＤＥＮＳＯ |
86431-53042 |
US $10,570.56 |
||
|
86431
|
86431
86431-53041 Display, Display & Navigation Module[09.2011 - 05.2012] GSE20,25 ＤＥＮＳＯ |
86431-53041 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53042 Display, Display & Navigation Module[09.2011 - 05.2012] GSE20,25 ＤＥＮＳＯ |
86431-53042 |
US $10,570.56 |
||
|
86431
|
86431
86431-53042 Display, Display & Navigation Module[06.2012 - 08.2012] GSE20,25 ＤＥＮＳＯ |
86431-53042 |
US $10,570.56 |
||
|
86431
|
86431
86431-53060 Display, Display & Navigation Module[08.2008 - 08.2009] GSE20,25 ＤＥＮＳＯ |
86431-53060 |
US $7,847.84 |
||
|
86431
|
86431
86431-53200 Display, Display & Navigation Module[08.2008 - 08.2009] GSE20,25 j英語タイプ |
86431-53200 |
US $7,847.84 |
||
|
86431
|
86431
86431-53290 Display, Display & Navigation Module[08.2009 - 09.2009] GSE20,25 ＤＥＮＳＯ |
86431-53290 |
US $10,570.56 |
||
|
86431
|
86431
86431-53291 Display, Display & Navigation Module[09.2009 - 03.2010] GSE20,25 ＤＥＮＳＯ |
86431-53291 |
US $10,570.56 |
||
|
86431
|
86431
86431-53292 Display, Display & Navigation Module[04.2010 - 08.2010] GSE20,25 ＤＥＮＳＯ |
86431-53292 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53294 Display, Display & Navigation Module[04.2010 - 08.2010] GSE20,25 ＤＥＮＳＯ |
86431-53294 |
US $10,570.56 |
||
|
86431
|
86431
86431-53293 Display, Display & Navigation Module[09.2010 - 03.2011] GSE20,25 ＤＥＮＳＯ |
86431-53293 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53294 Display, Display & Navigation Module[09.2010 - 03.2011] GSE20,25 ＤＥＮＳＯ |
86431-53294 |
US $10,570.56 |
||
|
86431
|
86431
86431-53294 Display, Display & Navigation Module[04.2011 - 08.2011] GSE20,25 ＤＥＮＳＯ |
86431-53294 |
US $10,570.56 |
||
|
86431
|
86431
86431-53310 Display, Display & Navigation Module[08.2009 - 09.2009] GSE20,25 j英語タイプ |
86431-53310 |
US $10,570.56 |
||
|
86431
|
86431
86431-53311 Display, Display & Navigation Module[09.2009 - 03.2010] GSE20,25 j英語タイプ |
86431-53311 |
US $10,570.56 |
||
|
86431
|
86431
86431-53312 Display, Display & Navigation Module[04.2010 - 08.2010] GSE20,25 j英語タイプ |
86431-53312 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53314 Display, Display & Navigation Module[04.2010 - 08.2010] GSE20,25 j英語タイプ |
86431-53314 |
US $10,570.56 |
||
|
86431
|
86431
86431-53313 Display, Display & Navigation Module[09.2010 - 03.2011] GSE20,25 j英語タイプ |
86431-53313 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53314 Display, Display & Navigation Module[09.2010 - 03.2011] GSE20,25 j英語タイプ |
86431-53314 |
US $10,570.56 |
||
|
86431
|
86431
86431-53314 Display, Display & Navigation Module[04.2011 - 08.2011] GSE20,25 j英語タイプ |
86431-53314 |
US $10,570.56 |
||
|
86431
|
86431
86431-53610 Display, Display & Navigation ModuleDISPLAY & NAVIGATION MODULE [01.2010 - 07.2010] GSE20,25 iＨＤＤナビゲーション ＋ テレビ） |
86431-53610 |
US $10,570.56 |
||
|
86431
|
86431
86431-53620 Display, Display & Navigation ModuleDISPLAY & NAVIGATION MODULE [01.2010 - 07.2010] GSE20,25 iＨＤＤナビゲーション ＋ テレビ）英語タイプ |
86431-53620 |
US $10,570.56 |
||
|
86431
|
86431
86431-53A50 Display, Display & Navigation Module[08.2011 - 09.2011] GSE20,25 j英語タイプ |
86431-53A50 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53A52 Display, Display & Navigation Module[08.2011 - 09.2011] GSE20,25 j英語タイプ |
86431-53A52 |
US $10,570.56 |
||
|
86431
|
86431
86431-53A51 Display, Display & Navigation Module[09.2011 - 05.2012] GSE20,25 j英語タイプ |
86431-53A51 |
US $10,570.56 |
||
| replacement | |||||
|
86431
|
86431
86431-53A52 Display, Display & Navigation Module[09.2011 - 05.2012] GSE20,25 j英語タイプ |
86431-53A52 |
US $10,570.56 |
||
|
86431
|
86431
86431-53A52 Display, Display & Navigation Module[06.2012 - 08.2012] GSE20,25 j英語タイプ |
86431-53A52 |
US $10,570.56 |
||
|
86730A
|
86730A
86730-53010 Microphone Assy, Telephone[08.2005 - 08.2008] GSE2#; GSE20,25 オーディオ−ＡＭ／ＦＭ ＣＤ＆ＭＤ １３スピーカ ＆ ナビゲーション無 |
86730-53010 |
US $101.92 |
||
|
86730A
|
86730A
86730-53050 Microphone Assy, TelephoneTELEPHONE [08.2009 - 08.2010] GSE2# |
86730-53050 |
US $94.64 |
||
|
86842
|
86842
86842-53020 Wire, Navigation, No.1[08.2005 - 08.2008] GSE2# |
86842-53020 |
US $25.92 |
||
|
86842
|
86842
86842-53100
Wire, Navigation, No.1
[08.2009 - 08.2010] GSE2# |
86842-53100 |
— | ||
|
86842
|
86842
86842-53200 Wire, Navigation, No.1[08.2012 - 04.2013] GSE2# |
86842-53200 |
US $48.78 |
||
|
86870A
|
86870A
86870-53010 Antenna Assy, Navigation[08.2005 - 08.2008] GSE2# |
86870-53010 |
US $502.32 |
||
| replacement | |||||
|
86870A
|
86870A
86870-53011 Antenna Assy, Navigation[08.2005 - 08.2008] GSE2# |
86870-53011 |
US $417.87 |
||
|
86870A
|
86870A
86870-53011 Antenna Assy, Navigation[03.2009 - 07.2009] GSE2# |
86870-53011 |
US $417.87 |
||
|
86870A
|
86870A
86870-53040 Antenna Assy, NavigationGPS & VICS [08.2009 - 08.2010] GSE2# |
86870-53040 |
US $476.11 |
||
|
86870A
|
86870A
86880-53030 Antenna Assy, Gps & Vics[08.2012 -] GSE2# |
86880-53030 |
US $192.19 |
||
|
86915
|
86915
86915-60010 Transceiver, Optical Beacon[08.2005 - 08.2008] GSE2# |
86915-60010 |
US $190.74 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
US $1.25 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
US $1.25 |
||
