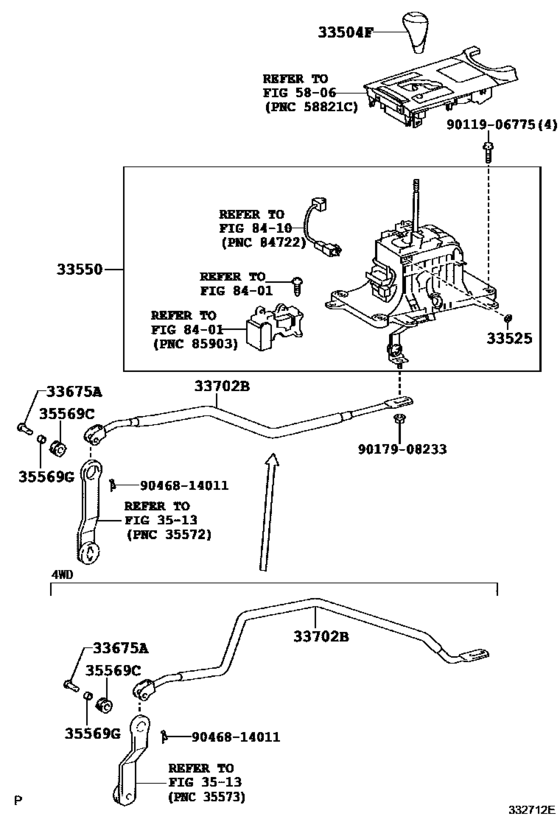

Shift Lever & Retainer ([08.2005 - ] (0508- )) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-30341-C2 Knob Sub-Assy, Shift Lever[08.2005 - 08.2008] GSE2# BLACK,TRIM0#,1#,2# |
33504-30341-C2 |
US $101.68 |
||
|
33504F
|
33504F
33504-30341-H0 Knob Sub-Assy, Shift Lever[08.2010 - 08.2011] GSE20,25 DARK BLUE,TRIM24 |
33504-30341-H0 |
US $101.68 |
||
|
33504F
|
33504F
33504-30352-25 Knob Sub-Assy, Shift Lever[03.2012 - 04.2013] GSE2# ステアリングホイール−木目，有り（パドルスイッチ）,BLACK & DK.BROWN,TRIM03,13,23 |
33504-30352-25 |
US $240.24 |
||
|
33504F
|
33504F
33504-30352-27 Knob Sub-Assy, Shift Lever[03.2012 - 04.2013] GSE2# ステアリングホイール−木目，有り（パドルスイッチ）,BLACK & LT.BROWN,TRIM00 |
33504-30352-27 |
US $240.24 |
||
|
33504F
|
33504F
33504-30352-C4 Knob Sub-Assy, Shift Lever[03.2012 - 04.2013] GSE2# ステアリングホイール−木目，有り（パドルスイッチ）,BLACK & GRAY,TRIM11,21 |
33504-30352-C4 |
US $240.24 |
||
|
33504F
|
33504F
33504-30361-21 Knob Sub-Assy, Shift Lever[08.2008 - 08.2009] GSE20,25 ステアリングホイール−木目,BLACK & LT.BROWN,TRIM00,10,20 |
33504-30361-21 |
US $288.29 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30352-27 Knob Sub-Assy, Shift Lever[08.2008 - 08.2009] GSE20,25 ステアリングホイール−木目,BLACK & LT.BROWN,TRIM00,10,20 |
33504-30352-27 |
US $240.24 |
||
|
33504F
|
33504F
33504-30361-22 Knob Sub-Assy, Shift LeverSHIFT LEVER [08.2009 - 08.2010] GSE2# ステアリングホイール−木目，有り（パドルスイッチ）,BLACK & DK.BROWN,TRIM03,13,23 |
33504-30361-22 |
US $288.29 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30352-25 Knob Sub-Assy, Shift Lever[08.2009 - 08.2010] GSE2# ステアリングホイール−木目，有り（パドルスイッチ）,BLACK & DK.BROWN,TRIM03,13,23 |
33504-30352-25 |
US $240.24 |
||
|
33504F
|
33504F
33504-30361-C5 Knob Sub-Assy, Shift Lever[08.2008 - 08.2009] GSE20,25 ステアリングホイール−木目,BLACK & GRAY,TRIM01,11,21 |
33504-30361-C5 |
US $288.29 |
||
| replacement | |||||
|
33504F
|
33504F
33504-30352-C4 Knob Sub-Assy, Shift Lever[08.2008 - 08.2009] GSE20,25 ステアリングホイール−木目,BLACK & GRAY,TRIM01,11,21 |
33504-30352-C4 |
US $240.24 |
||
|
33504F
|
33504F
33504-30361-C8 Knob Sub-Assy, Shift Lever[12.2006 - 07.2007] GSE2# ＶＥＲＳＩＯＮ Ｉ ＊（Ｉ）,BLACK,TRIM0#,1#,2# |
33504-30361-C8 |
US $347.98 |
||
|
33504F
|
33504F
33504-53090-C0 Knob Sub-Assy, Shift Lever[02.2008 - 08.2008] GSE2# ＶＥＲＳＩＯＮ Ｉ ＊（Ｉ）,BLACK & RED,TRIM0#,1#,2# |
33504-53090-C0 |
US $301.39 |
||
|
33504F
|
33504F
33504-53100-C0 Knob Sub-Assy, Shift Lever[08.2009 - 08.2010] GSE20,21 ステアリングホイール−革巻き（ディンプル加工）,BLACK,TRIM2# |
33504-53100-C0 |
US $101.68 |
||
|
33525
|
33525
33525-50020 Support, Shift Lever[08.2005 - 08.2008] GSE2# |
33525-50020 |
US $3.06 |
||
|
33550
|
33550
33550-53190 Floor Shift Assy, Transmission[08.2005 - 08.2008] GSE20,21 |
33550-53190 |
US $503.78 |
||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[08.2005 - 08.2008] GSE2# |
33726-35010 |
US $3.40 |
||
|
33702B
|
33702B
33702-22140 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[08.2005 - 08.2008] GSE20 |
33702-22140 |
US $14.27 |
||
|
35569C
|
35569C
90480-17013 Grommet[08.2005 - 08.2008] GSE2# |
90480-17013 |
US $4.12 |
||
|
35569G
|
35569G
90560-08091 Bush (For Floor Shift Control Shaft)[08.2005 - 08.2008] GSE2# |
90560-08091 |
US $1.25 |
||
|
9011906775
|
9011906775
90119-06775 BOLT WWASHER |
90119-06775 |
US $2.33 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
US $3.40 |
||
|
9046814011
|
9046814011
90468-14011 Clip, No.2(For Parking Brake) |
90468-14011 |
US $1.08 |
||
