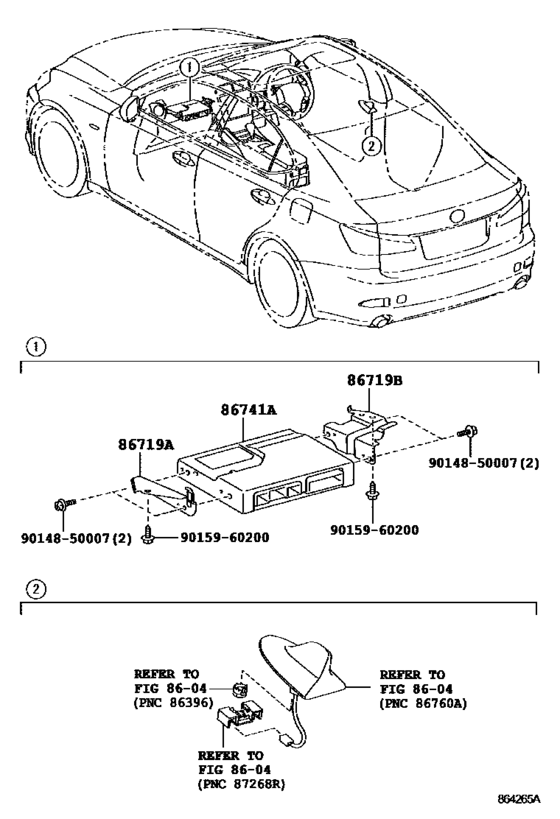

Telephone & Mayday ([08.2009 - 08.2012] (0908-1208)) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86719A
|
86719A
86719-30250 Bracket, Telephone[08.2012 - 04.2013] GSE2# |
86719-30250 |
US $8.44 |
||
|
86719A
|
86719A
86719-53010 Bracket, Telephone No.1[08.2005 - 08.2008] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
86719-53010 |
US $6.12 |
||
|
86719A
|
86719A
86719-53060 Bracket, Telephone No.1TELEPHONE NO.1 [08.2009 - 08.2010] GSE2# |
86719-53060 |
US $9.32 |
||
|
86719B
|
86719B
86719-53010 Bracket, Telephone No.1[08.2012 - 04.2013] GSE2# |
86719-53010 |
US $6.12 |
||
|
86719B
|
86719B
86719-53070 Bracket, Telephone No.2TELEPHONE NO.2 [08.2009 - 08.2010] GSE2# |
86719-53070 |
US $10.48 |
||
|
86741A
|
86741A
86741-30010 Transceiver, Telematics[08.2005 - 12.2005] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
86741-30010 |
US $2,315.04 |
||
| replacement | |||||
|
86741A
|
86741A
86741-53010 Transceiver, TelematicsTELEMATICS [08.2005 - 12.2005] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
86741-53010 |
US $1,921.92 |
||
|
86741A
|
86741A
86741-30011 Transceiver, Telematics[01.2006 - 08.2008] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
86741-30011 |
US $1,921.92 |
||
| replacement | |||||
|
86741A
|
86741A
86741-53010 Transceiver, TelematicsTELEMATICS [01.2006 - 08.2008] GSE2#; GSE20,25 ＥＭＶ ＆ ナビゲーション システム−無し |
86741-53010 |
US $1,921.92 |
||
|
86741A
|
86741A
86741-30040 Transceiver, Telematics[08.2009 - 08.2010] GSE2# |
86741-30040 |
US $1,921.92 |
||
| replacement | |||||
|
86741A
|
86741A
86741-30042 Transceiver, Telematics[08.2009 - 08.2010] GSE2# |
86741-30042 |
US $1,601.60 |
||
|
86741A
|
86741A
86741-30041 Transceiver, Telematics[02.2012 - 08.2012] GSE2# |
86741-30041 |
US $1,921.92 |
||
| replacement | |||||
|
86741A
|
86741A
86741-30042 Transceiver, Telematics[02.2012 - 08.2012] GSE2# |
86741-30042 |
US $1,601.60 |
||
|
86741A
|
86741A
86741-30110 Transceiver, Telematics[08.2012 - 10.2012] GSE2# |
86741-30110 |
US $1,921.92 |
||
| replacement | |||||
|
86741A
|
86741A
86741-30112 Transceiver, Telematics[08.2012 - 10.2012] GSE2# |
86741-30112 |
US $1,616.16 |
||
|
86741A
|
86741A
86741-30111 Transceiver, Telematics[11.2012 - 04.2013] GSE2# |
86741-30111 |
US $1,601.60 |
||
| replacement | |||||
|
86741A
|
86741A
86741-30112 Transceiver, Telematics[11.2012 - 04.2013] GSE2# |
86741-30112 |
US $1,616.16 |
||
|
86741A
|
86741A
86741-53010 Transceiver, TelematicsTELEMATICS [08.2008 - 08.2009] GSE2# |
86741-53010 |
US $1,921.92 |
||
|
9014850007
|
9014850007
90148-50007 New Genuine Part |
90148-50007 |
US $1.46 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
US $1.79 |
||
