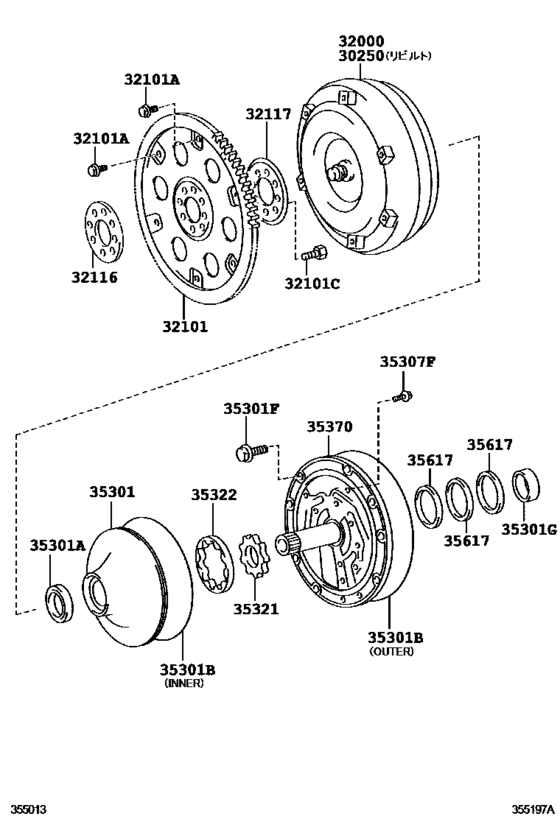

Torque Converter, Front Oil Pump & Chain (Atm) ([08.2005 - ] A960E (0508- )GSE20) Diagram Toyota LEXUS IS
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- GSE20
- body
- SED
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 08.2005
- To
- 04.2013
- Vehicle Model
- IS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30250
|
30250
30250-30400 Converter Assy, Torque, Rebuilt[08.2005 - 08.2008] GSE20,25 |
30250-30400 |
US $738.19 |
||
|
32000
|
32000
32000-30400 Converter Assy, Torque[08.2005 - 08.2008] GSE20,25 |
32000-30400 |
US $1,490.36 |
||
|
32101
|
32101
32101-30080 Gear Sub-Assy, Drive Plate & Ring[08.2005 - 08.2008] GSE2# |
32101-30080 |
US $240.24 |
||
| replacement | |||||
|
32101
|
32101
32101-30081 Gear Sub-Assy, Drive Plate & Ring[08.2005 - 08.2008] GSE2# |
32101-30081 |
US $180.54 |
||
|
32101
|
32101
32101-30081 Gear Sub-Assy, Drive Plate & Ring[06.2011 -] GSE2# |
32101-30081 |
US $180.54 |
||
|
32101A
|
32101A
90105-09005 Bolt(For Drive Plate & Torque Converter Setting)[08.2005 - 08.2008] GSE2# ＊９−１．２５ＰＸ１１−８,ブラック |
90105-09005 |
US $1.43 |
||
|
32101A
|
32101A
90105-09006 Bolt(For Drive Plate & Torque Converter Setting)[08.2005 - 08.2008] GSE2# ＊９−１．２５ＰＸ１１−８．５,イエロー |
90105-09006 |
US $1.43 |
||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[08.2005 - 08.2008] GSE2# ＊１０−１．２５ＰＸ１８−１３ |
90105-10048 |
US $2.33 |
||
|
32101C
|
32101C
90105-A0022
Bolt, Hexagon(For Drive Plate Setting)
[08.2008 - 03.2010] GSE2# ＊１０−１．２５ＰＸ１８−１３,（Ｌ） |
90105-A0022 |
— | ||
| replacement | |||||
|
32101C
|
32101C
90105-10048 Bolt, Flywheel Setting[08.2008 - 03.2010] GSE2# ＊１０−１．２５ＰＸ１８−１３,（Ｌ） |
90105-10048 |
US $2.33 |
||
|
32116
|
32116
32116-32020 Spacer, Drive Plate, Front[08.2005 - 08.2008] GSE2# |
32116-32020 |
US $14.85 |
||
|
32117
|
32117
32117-30030 Spacer, Drive Plate, Rear[08.2005 - 08.2008] GSE2# |
32117-30030 |
US $12.52 |
||
|
35301
|
35301
35301-22030 Body Sub-Assy, Front Oil Pump[08.2005 - 08.2008] GSE20 |
35301-22030 |
US $200.93 |
||
|
35301A
|
35301A
90311-38083 Seal, Oil (For Front Oil Pump)[08.2005 - 08.2008] GSE2# |
90311-38083 |
US $5.20 |
||
|
35301B
|
35301B
90301-99093 Ring, O (For Front Oil Pump Body)[08.2005 - 08.2008] GSE20 内側 |
90301-99093 |
US $2.62 |
||
|
35301B
|
35301B
90301-99153 Ring, O (For Front Oil Pump Body)[08.2005 - 08.2008] GSE20 外側 |
90301-99153 |
US $2.75 |
||
|
35301F
|
35301F
90105-08451 Bolt (For Front Oil Pump Setting)[10.2006 - 08.2008] GSE20 ＊８−１．２５ＰＸ４０−３０ |
90105-08451 |
US $0.79 |
||
|
35301F
|
35301F
91511-K0840 Bolt(For Crankshaft Bearing Cap Set)[08.2005 - 09.2006] GSE20 ＊８−１．２５ＰＸ４０−３０ |
91511-K0840 |
US $3.05 |
||
|
35301G
|
35301G
90364-33013 Bearing,needle Roller[08.2005 - 08.2008] GSE20 |
90364-33013 |
US $14.56 |
||
|
35307F
|
35307F
90148-60079 Bolt (For Stator Shaft)[08.2005 - 08.2008] GSE2# |
90148-60079 |
US $0.52 |
||
|
35321
|
35321
35321-22120 Gear, Front Oil Pump Drive[08.2005 - 08.2008] GSE20 厚さ＝９．９４６−９．９５２ |
35321-22120 |
US $39.60 |
||
|
35321
|
35321
35321-22130 Gear, Front Oil Pump Drive[08.2005 - 08.2008] GSE20 厚さ＝９．９５３−９．９５９ |
35321-22130 |
US $39.60 |
||
|
35321
|
35321
35321-22140
Gear, Front Oil Pump Drive
[08.2005 - 08.2008] GSE20 厚さ＝９．９６０−９．９６６ |
35321-22140 |
— | ||
|
35321
|
35321
35321-22150 Gear, Front Oil Pump Drive[08.2005 - 08.2008] GSE20 厚さ＝９．９６７−９．９７３ |
35321-22150 |
US $39.60 |
||
|
35321
|
35321
35321-22160 Gear, Front Oil Pump Drive[08.2005 - 08.2008] GSE20 厚さ＝９．９７４−９．９８０ |
35321-22160 |
US $39.60 |
||
|
35321
|
35321
35321-22170 Gear, Front Oil Pump Drive[08.2005 - 08.2008] GSE20 厚さ＝９．９８１−９．９８７ |
35321-22170 |
US $39.60 |
||
|
35321
|
35321
35321-22180 Gear, Front Oil Pump Drive[08.2005 - 08.2008] GSE20 厚さ＝９．９８８−９．９９４ |
35321-22180 |
US $39.60 |
||
|
35322
|
35322
35322-22120 Gear, Front Oil Pump Driven[08.2005 - 08.2008] GSE20 厚さ＝９．９４６−９．９５２ |
35322-22120 |
US $33.63 |
||
|
35322
|
35322
35322-22130 Gear, Front Oil Pump Driven[08.2005 - 08.2008] GSE20 厚さ＝９．９５３−９．９５９ |
35322-22130 |
US $33.63 |
||
|
35322
|
35322
35322-22140 Gear, Front Oil Pump Driven[08.2005 - 08.2008] GSE20 厚さ＝９．９６０−９．９６６ |
35322-22140 |
US $33.63 |
||
|
35322
|
35322
35322-22150 Gear, Front Oil Pump Driven[08.2005 - 08.2008] GSE20 厚さ＝９．９６７−９．９７３ |
35322-22150 |
US $33.63 |
||
|
35322
|
35322
35322-22160 Gear, Front Oil Pump Driven[08.2005 - 08.2008] GSE20 厚さ＝９．９７４−９．９８０ |
35322-22160 |
US $33.63 |
||
|
35322
|
35322
35322-22170 Gear, Front Oil Pump Driven[08.2005 - 08.2008] GSE20 厚さ＝９．９８１−９．９８７ |
35322-22170 |
US $33.63 |
||
|
35322
|
35322
35322-22180 Gear, Front Oil Pump Driven[08.2005 - 08.2008] GSE20 厚さ＝９．９８８−９．９９４ |
35322-22180 |
US $33.63 |
||
|
35370
|
35370
35370-22070 Shaft Assy, Stator[08.2005 - 08.2008] GSE20 |
35370-22070 |
US $200.93 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[09.2007 - 08.2008] GSE2# |
35617-50030 |
US $4.02 |
||
|
35617
|
35617
35617-60020 Ring, Clutch Drum Oil Seal[08.2005 - 08.2007] GSE2# |
35617-60020 |
US $6.64 |
||
