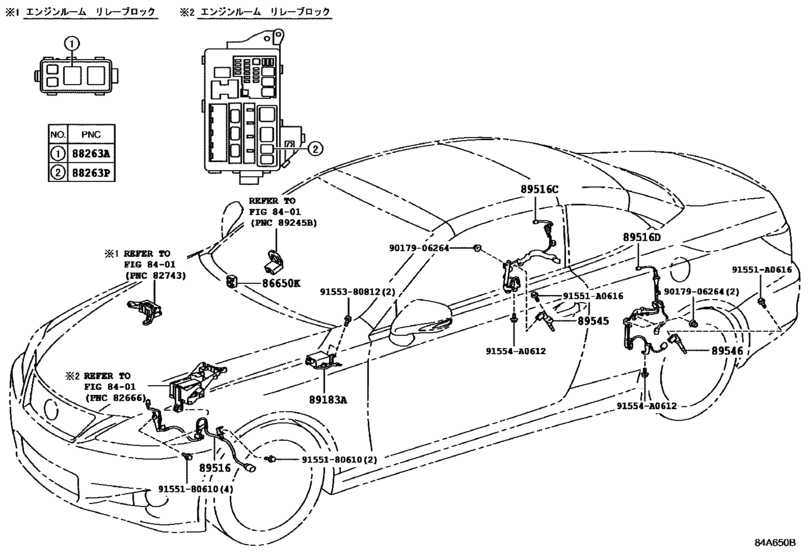

Abs & Vsc ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86650K
|
86650K
86652-50010 Buzzer Assy[04.2009 - 08.2010] GSE20 |
86652-50010 |
from US $31.45 |
||
|
88263A
|
88263A
88263-21010 Relay[04.2009 -] GSE2# 寒冷地仕様 |
88263-21010 |
from US $40.09 |
||
|
88263P
|
88263P
90987-04004 Relay, Starter Cut[04.2009 - 08.2014] GSE2# |
90987-04004 |
from US $47.21 |
||
|
89183A
|
89183A
89180-53030 Sensor, YawrateYAWRATE [04.2009 - 08.2014] GSE2# |
89180-53030 |
US $1,116.75 |
||
|
89516
|
89516
89516-30020
Wire, Skid Control Sensor
[04.2009 - 03.2012] GSE2# 右側 |
89516-30020 |
— | ||
| replacement | |||||
|
89516
|
89516
89516-30150 Wire, Skid Control Sensor[04.2009 - 03.2012] GSE2# 右側 |
89516-30150 |
from US $50.18 |
||
|
89516
|
89516
89516-30030 Wire, Skid Control Sensor[04.2009 - 08.2014] GSE2# 左側 |
89516-30030 |
from US $54.17 |
||
|
89516
|
89516
89516-30150 Wire, Skid Control Sensor[04.2012 - 02.2013] GSE2# 右側 |
89516-30150 |
from US $50.18 |
||
|
89516
|
89516
89516-53060 Wire, Skid Control Sensor[03.2013 - 08.2014] GSE2# 右側 |
89516-53060 |
US $39.75 |
||
|
89516C
|
89516C
89516-53010 Wire, Skid Control Sensor, RhSKID CONTROL SENSOR [04.2009 - 08.2014] GSE2# |
89516-53010 |
US $26.50 |
||
|
89516D
|
89516D
89516-53040 Wire, Skid Control Sensor, LhSKID CONTROL SENSOR [04.2009 - 08.2014] GSE2# |
89516-53040 |
US $68.72 |
||
|
89545
|
89545
89545-30070 Sensor, Speed, Rear Rh[04.2009 - 08.2014] GSE2# |
89545-30070 |
from US $172.56 |
||
|
89546
|
89546
89546-30070 Sensor, Speed, Rear Lh[04.2009 - 08.2014] GSE2# |
89546-30070 |
from US $168.11 |
||
|
91551A0616
|
91551A0616
91551-A0616 New Genuine Part |
91551-A0616 |
US $1.08 |
||
|
91554A0612
|
91554A0612
91554-A0612 New Genuine Part |
91554-A0612 |
US $1.08 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.82 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $1.08 |
||
|
9155380812
|
9155380812
91553-80812 New Genuine Part |
91553-80812 |
US $1.43 |
||
