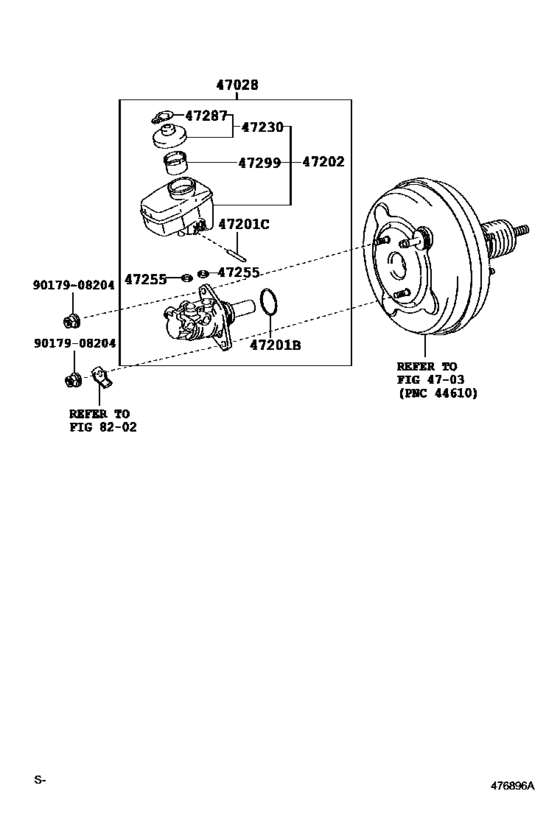

Brake Master Cylinder ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47028
|
47028
47028-30010 Cylinder Sub-Assy, Brake Master W/plate[04.2009 - 08.2014] GSE2# |
47028-30010 |
from US $329.10 |
||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[04.2009 - 08.2014] GSE2# |
90029-20059 |
from US $2.19 |
||
|
47201C
|
47201C
90029-15803 Ring Pin, Brake Master Cylinder[04.2009 - 08.2014] GSE2# |
90029-15803 |
US $1.05 |
||
|
47202
|
47202
47220-30170 Reservoir Sub-Assy, Brake Master Cylinder[04.2009 - 08.2014] GSE2# |
47220-30170 |
US $88.82 |
||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[04.2009 - 08.2014] GSE2# |
47230-20140 |
from US $6.60 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[04.2009 - 08.2014] GSE2# |
90029-48001 |
US $6.45 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[04.2009 - 08.2014] GSE2# |
47287-20010 |
US $2.33 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[04.2009 - 08.2014] GSE2# |
47299-20060 |
US $2.41 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
