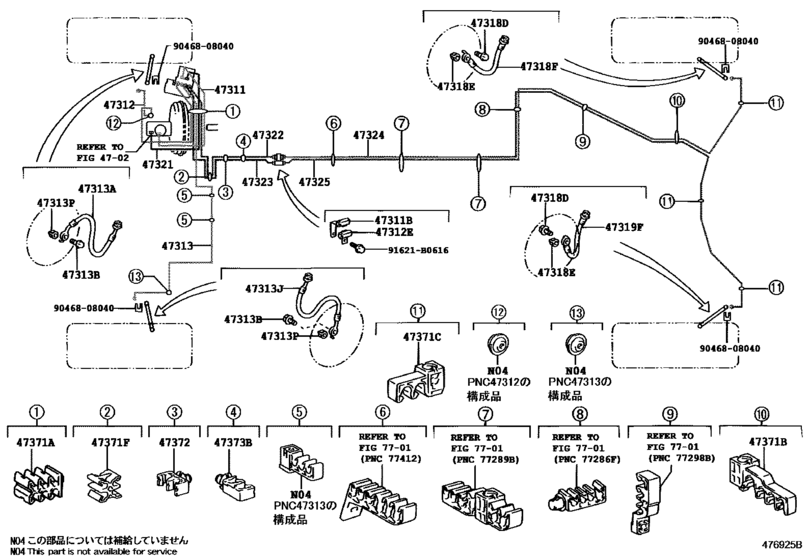

Brake Tube & Clamp ([04.2009 - ] (0904- )) Diagram Toyota LEXUS IS
- Year
- 2009 - 2014
- Sales region
- Japan
- Frame
- GSE20
- grade
- 250C
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- IS250
- From
- 04.2009
- To
- 08.2014
- Gear Shift Type
- 6FC
- Vehicle Model
- IS250C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-53170 Tube, Front Brake, No.1[04.2009 - 08.2014] GSE2# |
47311-53170 |
US $10.19 |
||
|
47311B
|
47311B
90412-10250 Way, No.1(For Front Brake Tube)[04.2009 - 08.2014] GSE2# |
90412-10250 |
US $12.75 |
||
|
47312
|
47312
47312-53190 Tube, Front Brake, No.2[04.2009 - 08.2014] GSE2# |
47312-53190 |
US $13.54 |
||
|
47312E
|
47312E
90412-10278
Way, No.2(For Front Brake Tube)
[04.2009 - 08.2014] GSE2# |
90412-10278 |
— | ||
|
47313
|
47313
47313-53190 Tube, Front Brake, No.3[04.2009 - 08.2014] GSE2# |
47313-53190 |
US $23.59 |
||
|
47313A
|
47313A
90947-02F72 Hose, Flexible, No.1(For Front)[04.2009 - 11.2009] GSE20 |
90947-02F72 |
US $24.53 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[04.2009 - 08.2014] GSE2# |
90401-10058 |
from US $3.94 |
||
|
47313J
|
47313J
90947-02F72 Hose, Flexible, No.1(For Front)[04.2009 - 11.2009] GSE20 |
90947-02F72 |
US $24.53 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[04.2009 - 08.2014] GSE2# |
47389-50020 |
from US $4.83 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[04.2009 - 08.2014] GSE2# |
90401-10058 |
from US $3.94 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[04.2009 - 08.2014] GSE2# |
47389-50020 |
from US $4.83 |
||
|
47318F
|
47318F
90947-02F71 Hose, Flexible(For Rear Rh)[04.2009 - 11.2009] GSE20 |
90947-02F71 |
US $24.53 |
||
|
47319F
|
47319F
90947-02F71 Hose, Flexible(For Rear Rh)[04.2009 - 11.2009] GSE20 |
90947-02F71 |
US $24.53 |
||
|
47321
|
47321
47321-53140 Tube, Rear Brake, No.1[04.2009 - 08.2014] GSE2# |
47321-53140 |
US $10.19 |
||
|
47322
|
47322
47322-53180 Tube, Rear Brake, No.2[04.2009 - 08.2014] GSE2# |
47322-53180 |
US $15.14 |
||
|
47323
|
47323
47323-53160 Tube, Rear Brake, No.3[04.2009 - 08.2014] GSE2# |
47323-53160 |
US $15.14 |
||
|
47324
|
47324
47324-53070 Tube, Rear Brake, No.4[04.2009 - 08.2014] GSE2# |
47324-53070 |
US $39.75 |
||
|
47325
|
47325
47325-53060 Tube, Rear Brake, No.5[04.2009 - 08.2014] GSE2# |
47325-53060 |
US $35.09 |
||
|
47371A
|
47371A
90949-01C51 Clamp, Brake Tube, No.1[04.2009 - 08.2014] GSE2# |
90949-01C51 |
US $4.37 |
||
|
47371B
|
47371B
90949-01D09 Clamp, Brake Tube, No.6[04.2009 - 08.2014] GSE2# |
90949-01D09 |
US $2.77 |
||
|
47371C
|
47371C
90949-01D11 Clamp, Brake Tube, No.6[04.2009 - 08.2014] GSE2# |
90949-01D11 |
US $3.05 |
||
|
47371F
|
47371F
90464-00876 Clamp, Brake Tube, No.1[04.2009 - 08.2014] GSE2# |
90464-00876 |
US $1.97 |
||
|
47372
|
47372
90949-01D12 Clamp(For Clutch Master Cylinder Tube)[04.2009 - 08.2014] GSE2# |
90949-01D12 |
US $1.97 |
||
|
47373B
|
47373B
90949-01D13 Clamp, Brake Tube, No.9[04.2009 - 08.2014] GSE2# |
90949-01D13 |
US $1.97 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.76 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.37 |
